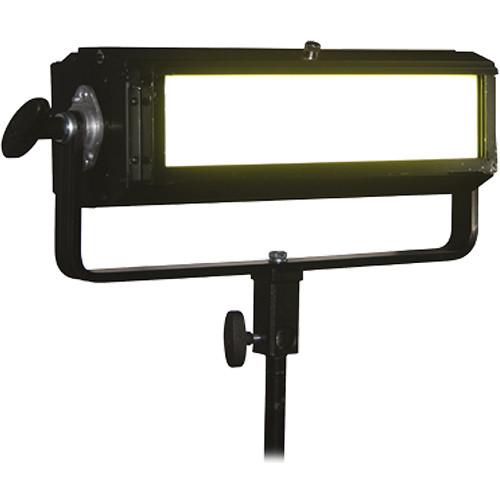

User Manual for DeSisti SoftLED 1 60W DMX Variable White 2800K to 6600K Panel Fixture Click to enlarge the picture
Contents of the user manual for the DeSisti SoftLED 1 60W DMX Variable
- Product category: LED Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti LED Lights
|
User manual for the DeSisti SoftLED 1 60W DMX Variable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|
Product description The SoftLED 1 60W DMX Variable White 2800K to 6600K Panel from DeSisti is a flicker-free system with universal power supply unit 90 to 240V to work in every condition and frame rate. The DMX (or local) control of the light features intensity from 0 to 100% with smooth transition and theatrical quality dimming. The thermal stabilization of the LED operating temperature is managed by an internal thermal sensor and CPU. Furthermore, the variable fan speed and heat sink maintains the LED at optimal constant temperature. Catalog PDF 4.5mbfrteszczruvbdacvswwfcdxaddeywzzfuuef Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti SoftLED 1 60W DMX Variable White 2800K to 6600K Panel Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti SoftLED 1 Specs | Power | 60 W | | Power Consumption | 75 W @ 120 V, 50 to 60 Hz | | DMX | 5-pin XLR for DMX input and output
Shielded data cables
Up to a maximum of 32 devices can be used on a single DMX chain Do not overload the daisy chain. | | DMX Channels | 2 x Remote phosphors
4 x Vari-White | | Photometric Data | CCT (Correlated Color Temperature) balanced at 2800K - 60 W (CRI>95 - TLCI>96 )
990 cd
248 lux (23 fc) at 6.6' (2 m)
110 lux (10.2 fc) at 9.8' (3 m)
40 lux (3.7 fc) at 16.4' (5 m)
CCT (Correlated Color Temperature) balanced at 6500K - 60 W (CRI>95 - TLCI>96 )
1107 cd
277 lux (25.7 fc) at 6.6' (2 m)
123 lux (11.4 fc) at 9.8' (3 m)
44 lux (4.1 fc) at 16.4' (5 m) | | Beam Angle | 110°
18.7' (5.71 m)
28.1' (8.57 m)
46.8' (14.3 m)
96°
14.5' (4.44 m)
21.8' (6.66 m)
36.4' (11.1 m) | | LED Life | 50,000 hours with 70% lumen maintenance | | Protection Type | IP22 | | Housing | Maximum Surface Temperature: 158°F (70°C) | | Dimensions | 16.5 x 8 x 9.4" (41.9 x 20 x 24 cm) | | Weight | 6.6 lb (3 kg) |
