User Manual for DeSisti SoftLED1 Daylight-Balanced LED Light Click to enlarge the picture
Contents of the user manual for the DeSisti SoftLED1 Daylight-Balanced LED Light
- Product category: LED Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti LED Lights
 |
User manual for the DeSisti SoftLED1 Daylight-Balanced LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|

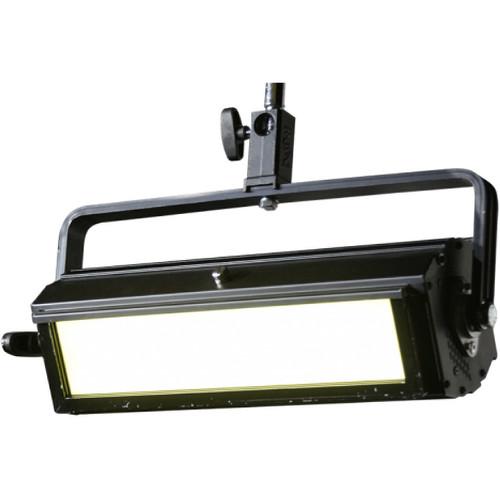

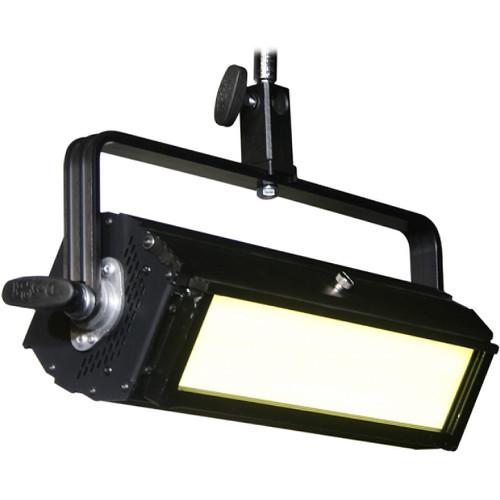

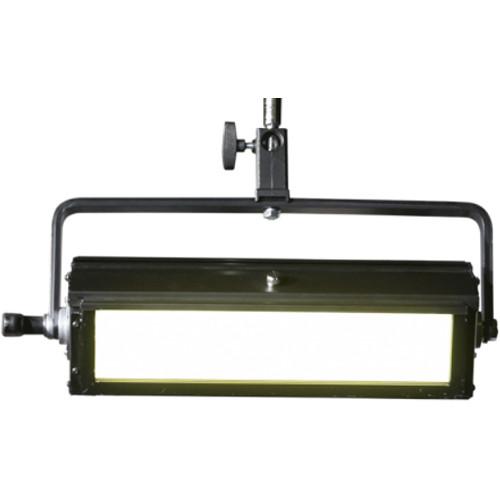

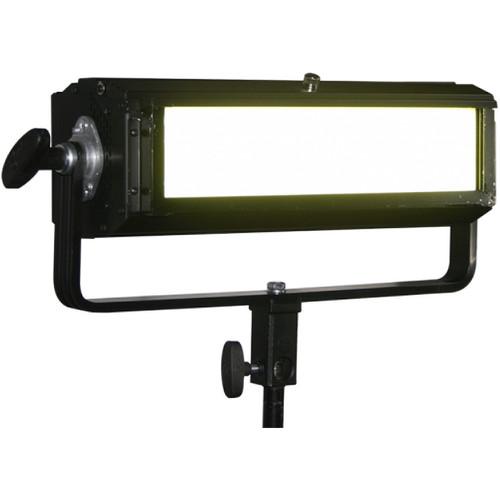

Product description The SoftLED1 Daylight-Balanced LED Light from DeSisti is a 16.5 x 9.4 x 8" extruded aluminum fixture with a color temperature of 5600K and a high CRI/TLCI rating of 95/96, an indicator of superior and accurate color rendering. While consuming just 75W, the light outputs several times that number in equivalent tungsten output that is dimmable from 0 to 100% without flicker. Adjustments to light intensity may be made locally on the fixture or remotely on a console via onboard DMX. The SoftLED1's LEDs have a virtually maintenance-free lifetime of 50,000 hours helped by its quiet, thermally-activated fan and heat sink. The SoftLED1 is ready for worldwide use thanks to its 90-250 VAC power supply. - Benefits
-
- A controlled beam and soft white source, ideal for multiple camera use in the studio with even more control of the beam projection with optional honeycomb grids
- No pixel effect from the LEDs
- Contained size, reduced weight, and cool running with exceptional efficiency for energy savings and talent comfort
- The full dimming is through DMX and the LEDs are supplied with DC throughout the 0 to 100% dimming range for full flicker-free operation and smooth cross-fades
- The unit is self-contained and requires no other external power supplies or devices

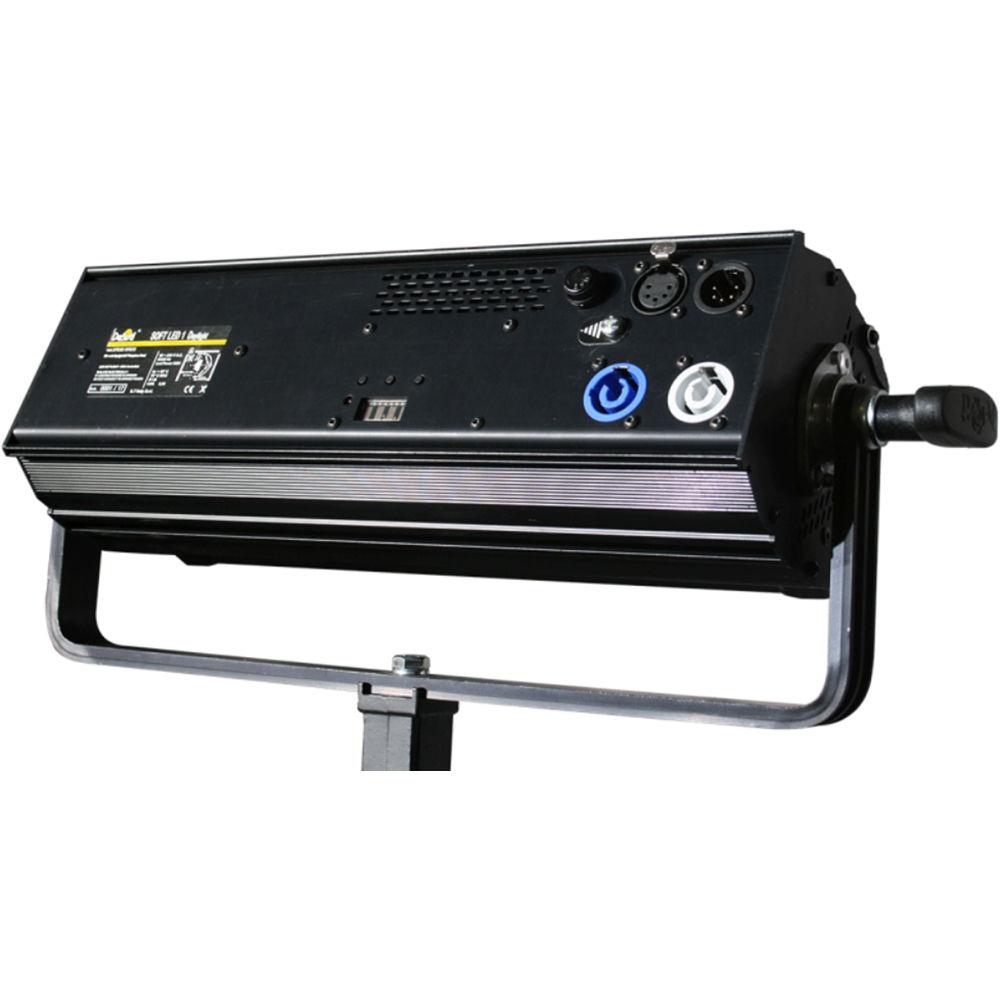

- Both mains and DMX connections are daisy chain-able
In the Box DeSisti SoftLED1 Daylight-Balanced LED Light (Manual Operation) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti SoftLED1 Daylight-Balanced LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti SoftLED 1 Specs | | | Beam Angle | 96 to 110° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95
TLCI 96 | | Cooling System | Fan/Passive Combo | | Display | None | | Housing Material | Aluminum | | Photometrics | 5600K:
45 fc / 484.2 lux at 6.56' / 2 m | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | Flood: 16.5 x 9.4 x 8.0" / 41.9 x 23.9 x 20.3 cm (Including Yoke) | | Fixture Weight | 6.6 lb / 2.99 kg (Including Yoke) | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX | | Number of DMX Channel Modes | 2 | | | | AC Input Power | 90 to 250 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 75 W | | Power Pass-Thru | Yes | | | | IP Rating | IP22 | | Operating Temperature | 158°F / 70°C |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
