User Manual for DeSisti Super F6 Daylight-Balanced LED Fresnel Light Click to enlarge the picture
Contents of the user manual for the DeSisti Super F6 Daylight-Balanced LED Fresnel
- Product category: LED Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti LED Lights
|
User manual for the DeSisti Super F6 Daylight-Balanced LED Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|

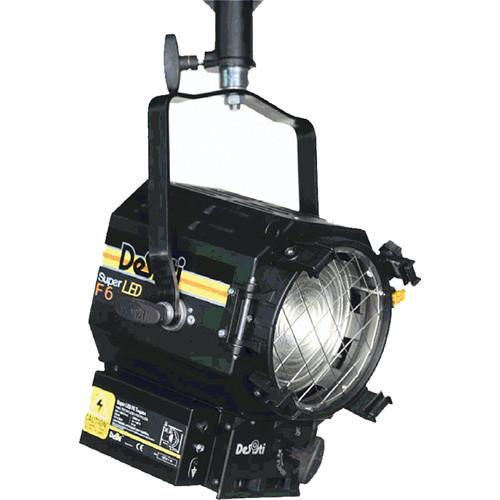

Product description Utilizing a powerful, yet efficient 120W LED and a 6" diameter Fresnel lens, the Manually Operated Super F6 Daylight-Balanced LED Fresnel Light from DeSisti can replace a 575W HMI fixture and provide a versatile spot-to-flood beam angle of 13 to 53°. The specialized daylight-balanced 5600K chip-on-board LED array offers a high CRI of 92 for accurate color rendition. Also, the unit is DMX-controlled with smooth dimming from 0-100%. It has a high efficiency, self stabilizing active cooling system for thermal regulation and a durable, lightweight carbon steel housing to protect the electronics. Additionally, it has a built-in universal 120-240 VAC power supply for worldwide use. - 6" (150mm) diameter high quality, shock resistant Borosilicate glass Fresnel lens on spring supports. Special patented optics for LED technology.
- Rugged and lightweight carbon steel housing with low glare, black epoxy powder coating, with internal double walls and reinforcement.
- High efficiency, self stabilizing active cooling: automatic, thermal stabilization of the LED operating temperature is managed by an internal thermal sensor and CPU, variable speed fan and heat sink to maintain the LED Array's constant temperature at a maximum of 149°F (65°C). The hydrodynamic bearing fan operates silently with a very low RPM.
- Steel cable-driven focus mechanism guides Teflon bushings-supported LED engine along 2 rods. This ensures smooth operation during focusing, and in any tilted position of the fixture. The Teflon bushings also provide a wiping action, which cleans the steel guide rails during focus. The focusing mechanism can be activated from both front and rear of the fixture and the entire spot to flood action is accomplished with 1.5 turn of the focusing knob.
- The unit is equipped with a hinged lens door with a wire-guard and includes accessory-holding brackets. One of the 4 brackets has a locking knob and is spring-loaded; it can be locked to safely hold the barndoors, color frame and scrims. It can also be rotated 90° and locked in an open position for fast accessories changes. A double safety accessory bracket with spring loaded catch is available as an option to be assembled opposite to the locking knob. The accessories are designed for one hand installation and are secure regardless of the orientation of the fixture.
- Photometrics
- Flood (50% center value) 53°
1,536 lux / 143 fc at 9.8' (3.0 m) with beam diameter of 9.8' (3.0 m)
553 lux / 51 fc at 16.4' (5.0 m) with beam diameter of 16.4' (5.0 m)
138 lux / 13 fc at 32.8' (10 m) with beam diameter of 32.7' (10 m)
Full Spot (50% center value) 13°
5,504 lux / 511 fc at 9.8' (3.0 m) with beam diameter of 2.2' (0.7 m)
1,981 lux / 184 fc at 16.4' (5.0 m) with beam diameter of 3.7' (1.1 m)
495 lux / 46 fc at 32.8' (10 m) with beam diameter of 7.5' (2.3 m) In the Box DeSisti Super F6 Daylight-Balanced LED Fresnel Light (Manually Operated) 6" Fresnel Lens Manually Operated Yoke Powercon Detachable Mains Cable for CST Fixtures - 12' (3.6m) 4 Leaf Barndoor Set Color Frame for Leonardo 1K Brass C Clamp for All Desisti Hanging Lights Limited 1-Year Warranty User Manual PDF 864.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Super F6 Daylight-Balanced LED Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti LED F6 Specs | Light Source | 120 W LED, lamp life: 50,000 Hours with 70% lumens, tested and certified up to LM80 | | Color Temperature | 5600K | | CRI | 90+ | | Beam Angle | 13-53° | | Field Angle | 22-69° | | Dimming | 0-100% via DMX | | Control | DMX512
DMX channels: 1 at 8-bit (dimmer), 2 at 16-bit (dimmer)
Connectors: 5-Pin XLR DMX In/Out
DMX daisy chaining up to 32 lights | | Cable | 9.8' (3.0 m) detachable powerCON cable with bare ends | | Mount | Manually Operated yoke with 1-1/8" (28 mm) spigot | | Operating Voltage | 120-240 VAC 50/60 Hz | | Power Consumption | 150 W at 120 VAC, 50/60 Hz
141 W at 230 VAC, 50/60 Hz | | IP Rating | IP 22 | | Dimensions | 15.5 x 11.4 x 10.9" (395 x 290 x 278 mm) including yoke, without spigot
Lens diameter: 6" (150 mm) | | Weight | 17 lb (7.8 kg) Without barndoors | | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 14.2 x 13.1 x 12.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
