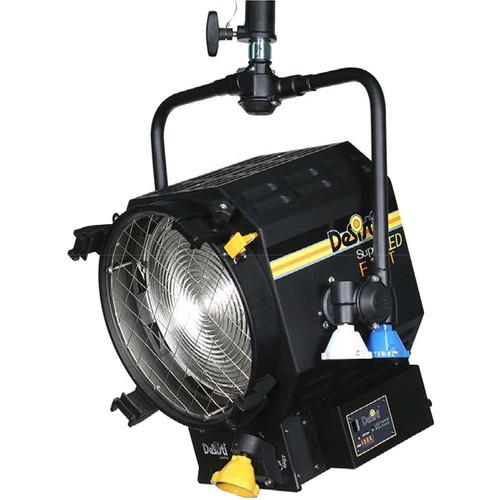

Product description Utilizing a powerful yet efficient 230 W LED and a 10" diameter Fresnel lens, the Pole Operated Super LED F10 Daylight-Balanced LED Fresnel Light from DeSisti can replace a 700 W HMI Fresnel fixture and provide a versatile spot-to-flood beam angle of 12 to 55°. The specialized daylight-balanced 5600K chip-on-board LED array offers a high CRI/TLCI of 92 / 90 for accurate color rendition. The unit is also DMX controlled with smooth dimming from 0-100%. It has a high efficiency Self-Stabilizing Active Cooling system for thermal regulation and a durable, lightweight carbon steel housing to protect the electronics. In addition, it has a built-in universal 80-270 VAC power supply for worldwide use and comes with a 4-way barn door set and a color frame. - 10" (250 mm) diameter, high quality, shock resistant borosilicate glass Fresnel lens on spring supports. Special patented optics for LED technology.
- Rugged and lightweight carbon steel housing with low glare black epoxy powder coating, with internal double walls and reinforcement.
- High efficiency, self-stabilizing active cooling: automatic, thermal stabilization of the LED operating temperature is managed by an internal thermal sensor and CPU, variable speed fan and heat sink to maintain the LED Array's constant temperature at a maximum of 149°F (65°C). The hydrodynamic bearing fan operates silently with a very low RPM.
- Special patented optics for LED technology
- Steel cable driven focus mechanism which guides Teflon bushings supports LED engine along 2 rods. This ensures smooth operation during focusing, in any tilted position of the fixture. The Teflon bushings also provide a wiping action, which cleans the steel guide rails during focus. The focusing mechanism can be activated from both front and rear of the fixture and the entire spot-to-flood action is accomplished with 1.5 turn of the focusing knob.
- The unit is equipped with a hinged lens door with a wire-guard and includes accessory holding brackets. One of the 4 brackets has a locking knob and is spring loaded; it can be locked to safely hold the barn doors, color frame and scrims. It can also be rotated 90° and locked in an open position for fast accessories changes. A double safety accessory bracket with spring loaded catch is available as an option to be assembled opposite to the locking knob. The accessories are designed for one hand installation and are secure regardless of the orientation of the fixture.
- Photometrics
- Full Flood 55°
1896 lux / 176 fc at 9.8' (3.0 m) with beam diameter of 10.2' (3.12 m)
683 lux / 63 fc at 16.4' (5.0 m) with beam diameter of 17.1' (5.21 m)
171 lux / 16 fc at 32.8' (10 m) with beam diameter of 34.2' (10.41 m)Full Spot 12°
13,865 lux / 1288 fc at 9.8' (3.0 m) with beam diameter of 2.07' (0.63 m)
4991 lux / 464 fc at 16.4' (5.0 m) with beam diameter of 3.45' (1.05 m)
1248 lux / 116 fc at 32.8' (10 m) with beam diameter of 6.90' (2.10 m) In the Box DeSisti Super LED F10 Daylight-Balanced Fresnel (Pole Operated) 10" Fresnel Lens Pole Operated Yoke Detachable Powercon Input Mains Cable (12') 4 Leaf Barndoor Set - Medium racexbxv Color Frame for Desisti Lights - 10" Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Super LED F10 Daylight-Balanced Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the DeSisti Super LED F10 Daylight-Balanced Fresnel can be downloaded in PDF format at the link stated below.
Technical parametersDeSisti LED F10 Specs | Light Source | 165 W LED, lamp life: 50,000 Hours with 70% lumens, tested and certified up to LM80 | | Color Temperature | 5600K | | CRI / TLCI | 92 / 90 | | Beam Angle | 12-55° | | Field Angle | 22-76° | | Dimming | 0-100% via DMX | | Control | DMX512
DMX channels: 1 at 8-bit (dimmer), 2 at 16-bit (dimmer)
Connectors: 5-Pin XLR DMX In/Out
DMX and power daisy chaining up to 32 lights
1 x 20 A powerCON NAC3MPA Blue (power In)
1 x 20 A powerCON NAC3MPB WHITE (power Out) | | Cable | 9.8' (3.0 m) detachable powerCON cable with bare ends | | Mount | Pole Operated yoke with 1-1/8" (28 mm) spigot | | Operating Voltage | 80-270 VAC 50/60 Hz | | Operating Temperature | Max. Housing Surface Temperature: 158°F (70°C) | | Power Consumption | 205 W @ 120 VAC and 190 W @ 230 VAC 50/60 HZ | | IP Rating | IP22 | | Dimensions | 14.2 x 16.5 x 22" (362 x 420 x 560 mm) Including yoke, without spigot
Lens diameter: 10" (250 mm) | | Weight | 32.5 lb (14.8 kg) Without barn doors |
