User Manual for DeSisti Super LED F10 VW Vari-White Fresnel Click to enlarge the picture
Contents of the user manual for the DeSisti Super LED F10 VW Vari-White
- Product category: LED Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti LED Lights
|
User manual for the DeSisti Super LED F10 VW Vari-White contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|

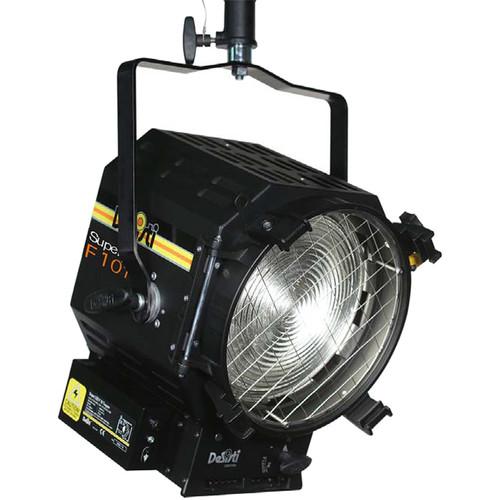

Product description Utilizing a powerful, yet efficient 230 W LED and a 10" diameter Fresnel lens, the Manually Operated Super LED F10 VW Vari-White Fresnel Light from DeSisti has adjustable color temperature from 2800 to 6600K allowing you to match any other light source and handle any type of ambient light conditions. The light can easily replace a legacy fixture and provide a versatile spot-to-flood beam angle of 8 to 50°. The specialized chip-on-board LED array offers a high CRI/TLCI of 94/96 for accurate color rendition. The unit is also DMX controlled with smooth dimming from 0-100%. It has a high efficiency, Self-Stabilizing Active Cooling system for thermal regulation and a durable, lightweight carbon steel housing to protect the electronics. In addition, it has a built-in universal 90-250 VAC power supply for worldwide use and comes with a 4-way barn door set and a color frame. - The innovative variable white phosphors LED array provides the ability to modulate the Correlated Color Temperature from a minimum of 2800K to a maximum of 6600K with an enhanced CRI (Color Rendering Index) higher than 94 at any CCT within the range.
- 10" (250mm) diameter, high quality, shock resistant borosilicate glass Fresnel lens on spring supports. Special patented optics for LED technology.
- Rugged and lightweight carbon steel housing with low glare black epoxy powder coating, with internal double walls and reinforcement.
- High efficiency, self-stabilizing active cooling: automatic, thermal stabilization of the LED operating temperature is managed by an internal thermal sensor and CPU, variable speed fan and heat sink to maintain the LED Array's constant temperature at a maximum of 149°F (65°C). The hydrodynamic bearing fan operates silently with a very low RPM.
- Special patented optics for LED technology
- Steel cable driven focus mechanism which guides Teflon bushings supports LED engine along 2 rods. This ensures smooth operation during focusing, in any tilted position of the fixture. The Teflon bushings also provide a wiping action, which cleans the steel guide rails during focus. The focusing mechanism can be activated from both front and rear of the fixture and the entire spot-to-flood action is accomplished with 1.5 turn of the focusing knob.
- The unit is equipped with a hinged lens door with a wire-guard and includes accessory holding brackets. One of the 4 brackets has a locking knob and is spring loaded; it can be locked to safely hold the barn doors, color frame and scrims. It can also be rotated 90° and locked in an open position for fast accessories changes. A double safety accessory bracket with spring loaded catch is available as an option to be assembled opposite to the locking knob. The accessories are designed for one hand installation and are secure regardless of the orientation of the fixture.
- Photometrics
- Full Flood 50° @ 2800K
1415 lux / 131 fc at 9.8' (3.0 m) with beam diameter of 9.2' (2.8 m)
509 lux / 47 fc at 16.4' (5.0 m) with beam diameter of 15.3' (4.66 m)
127 lux / 12 fc at 32.8' (10 m) with beam diameter of 30.6' (9.33 m)Full Flood 50° @ 6600K
1747 lux / 162 fc at 9.8' (3.0 m) with beam diameter of 9.2' (2.8 m)
629 lux / 58 fc at 16.4' (5.0 m) with beam diameter of 15.3' (4.66 m)
157 lux / 15 fc at 32.8' (10 m) with beam diameter of 30.6' (9.33 m)Spot 8° @ 2800K
15,950 lux / 1482 fc at 9.8' (3.0 m) with beam diameter of 1.4' (0.42 m)
5742 lux / 533 fc at 16.4' (5.0 m) with beam diameter of 2.3' (0.70 m)
1436 lux / 133 fc at 32.8' (10 m) with beam diameter of 4.6' (1.4 m)Spot 8° @ 6600K
19,800 lux / 1839 fc at 9.8' (3.0 m) with beam diameter of 1.4' (0.42 m)
7128 lux / 662 fc at 16.4' (5.0 m) with beam diameter of 2.3' (0.70 m)
1782 lux / 166 fc at 32.8' (10 m) with beam diameter of 4.6' (1.4 m) In the Box DeSisti Super LED F10 VW Vari-White Fresnel (Manually Operated) 10" Fresnel Lens Manually Operated Yoke Detachable Powercon Input Mains Cable (12') 4 Leaf Barndoor Set - Medium Color Frame for Desisti Lights - 10" Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Super LED F10 VW Vari-White Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the DeSisti Super LED F10 VW Vari-White Fresnel can be downloaded in PDF format at the link stated below.
Technical parametersDeSisti LED F10 Specs | Light Source | 200 W LED, lamp life: 50,000 Hours with 70% lumens, tested and certified up to LM80 | | Color Temperature | 2800 - 6600K variable in 400K increments every 10% of DMX variation
Continuous Mode for CCT control | | CRI / TLCI | 94 / 96 | | Beam Angle | 8-50° | | Field Angle | 20-71° | | Dimming | 0-100% via DMX | | Control | DMX512
DMX channels: 1 at 8-bit (dimmer), 2 at 16-bit (dimmer)
Connectors: 5-Pin XLR DMX In/Out
DMX and power daisy chaining up to 32 lights
1 x 20 A powerCON NAC3MPA Blue (power In)
1 x 20 A powerCON NAC3MPB WHITE (power Out) | | Cable | 9.8' (3.0 m) detachable powerCON cable with bare ends | | Mount | Manually Operated yoke with 1-1/8" (28 mm) spigot | | Operating Voltage | 90-250 VAC 50/60 Hz | | Operating Temperature | Max. Housing Surface Temperature: 158°F (70°C) | | Power Consumption | 230 W @ 120 VAC and 220 W @ 230 VAC 50/60 HZ | | IP Rating | IP22 | | Dimensions | 14.2 x 16.1 x 22.4" (362 x 410 x 570 mm) Including yoke without spigot
Lens diameter: 10" (250 mm) | | Weight | 29.7 lb (13.5 kg) Without barn doors |
