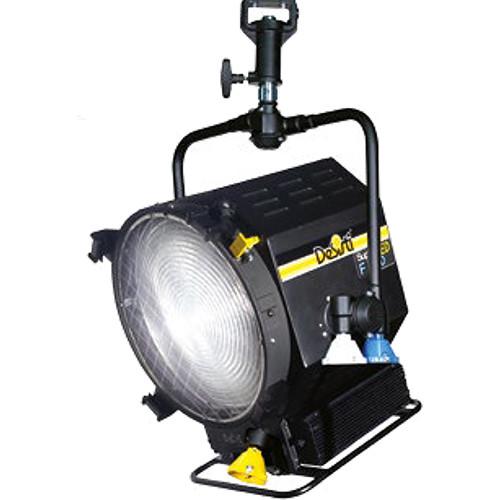

User Manual for DeSisti Super LED F14 Daylight-Balanced Fresnel Click to enlarge the picture
Contents of the user manual for the DeSisti Super LED F14 Daylight-Balanced Fresnel
- Product category: LED Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti LED Lights
|
User manual for the DeSisti Super LED F14 Daylight-Balanced Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|
Product description Utilizing a powerful, yet efficient 360W LED and a 10" diameter Fresnel lens, the Pole Operated Super LED F14 Daylight-Balanced LED Fresnel Light from DeSisti can replace a 1200W HMI Fresnel fixture and provide a versatile spot-to-flood beam angle of 12 to 51°. The specialized daylight-balanced 5600K chip-on-board LED array offers a high CRI/TLCI of 95 / 95 for accurate color rendition. The unit is also DMX controlled with smooth dimming from 0-100%. It has a high efficiency Self Stabilizing Active Cooling system for thermal regulation and a durable carbon steel housing to protect the electronics. In addition, it has a built-in universal 80-270 VAC power supply for worldwide use and comes with a 4-way barn door set and a color frame. - 14" (350mm) diameter high quality, shock resistant Borosilicate glass Fresnel lens on spring supports. Special patented optics for LED technology.
- Rugged carbon steel housing with low glare black epoxy powder coating, with internal double walls and reinforcement.
- High efficiency, self-stabilizing active cooling: automatic, thermal stabilization of the LED operating temperature is managed by an internal thermal sensor and CPU, variable speed fan and heat sink to maintain the LED Array's constant temperature at a maximum of 149°F (65°C). The hydrodynamic bearing fan operates silently with a very low RPM.
- Special patented optics for LED technology
- Steel cable driven focus mechanism which guides Teflon bushings supports LED engine along 2 rods. This ensures smooth operation during focusing, in any tilted position of the fixture. The Teflon bushings also provide a wiping action, which cleans the steel guide rails during focus. The focusing mechanism can be activated from both front and rear of the fixture and the entire spot-to-flood action is accomplished with 1.5 turn of the focusing knob.
- The unit is equipped with a hinged lens door with a wire-guard and includes accessory holding brackets. One of the 4 brackets has a locking knob and is spring loaded; it can be locked to safely hold the barn doors, color frame and scrims. It can also be rotated 90° and locked in an open position for fast accessories changes. A double safety accessory bracket with spring-loaded catch is available as an option to be assembled opposite to the locking knob. The accessories are designed for one hand installation and are secure regardless of the orientation of the fixture.
- Photometrics
- Full Flood 51°
4367 lux / 406 fc at 9.8' (3.0 m) with beam diameter of 9.4' (2.86 m)
1,572 lux / 146 fc at 16.4' (5.0 m) with beam diameter of 15.6' (4.77 m)
393 lux / 37 fc at 32.8' (10 m) with beam diameter of 31.3' (9.54 m)Spot 12°
22,950 lux / 2122 fc at 9.8' (3.0 m) with beam diameter of 2.1' (0.63 m)
8222 lux / 764 fc at 16.4' (5.0 m) with beam diameter of 3.4' (1.05 m)
2056 lux / 191 fc at 32.8' (10 m) with beam diameter of 6.9' (2.1 m) In the Box DeSisti Super LED F14 Daylight-Balanced Fresnel (Pole Operated) 14" Fresnel Lens Pole Operated Yoke Detachable Powercon Input Mains Cable (12') 4 Leaf Barndoors for Leonardo - Medium Color Frame Limited 1-Year Warranty Data Sheet PDF 675.7kbrvcwacqucvwyvtxwde Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Super LED F14 Daylight-Balanced Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti LED F14 Specs | Light Source | 360 W LED, lamp life: 50,000 Hours with 70% lumens, tested and certified up to LM80 | | Color Temperature | 5600K | | CRI / TLCI | 95 / 95 | | Beam Angle | 12-51° | | Field Angle | 22-74° | | Dimming | 0-100% via DMX | | Control | DMX512
DMX Channels: 1 at 8-bit (dimmer), 2 at 16-bit (dimmer)
Connectors: 5-Pin XLR DMX In/Out
DMX daisy chaining up to 32 lights | | Cable | 9.8' (3.0 m) Detachable powerCON cable with bare ends | | Mount | Pole Operated yoke with 1-1/8" (28 mm) spigot | | Operating Voltage | 80-270 VAC 50/60 Hz | | Power Consumption | 400 W @ 120 VAC or 230 VAC 50/60 HZ, PFC 0.96 | | Operating Temperature | Max. Housing Surface Temperature: 158°F (70°C) | | IP Rating | IP22 | | Dimensions | 15 x 19.7 x 19.5" (380 x 500 x 495 mm) Including yoke, without spigot
Lens diameter: 14" (350 mm) | | Weight | 47.3 lb (21.5 kg) Without barn doors |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
