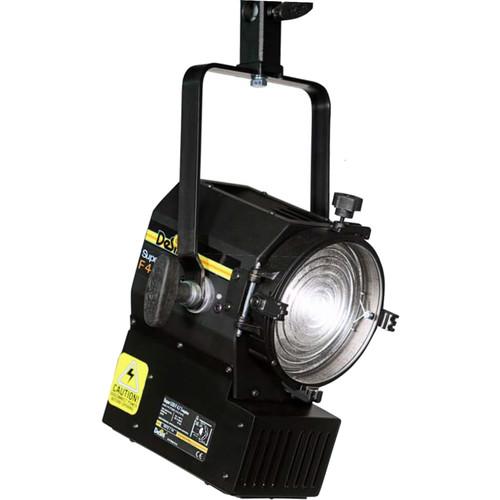

Product description Utilizing a powerful, yet efficient 60W LED and a 4.75" diameter Fresnel lens, the manually operated Super LED F4.7 Daylight-Balanced 3-Fresnel Kit with Case from DeSisti contains 3 manually operated LED F4.7s that can each replace a 250W HMI fixture. The LED F4.7 has a built-in 120-240 VAC power supply for worldwide use. Each light comes with a light stand, detachable power cable, 4-way barndoors and a color frame. A 4-piece scrim set is also included. It all fits in the kit's hard shipping case. - MAGIS Super Daylight-Balanced LED Fresnel Light (Manual Operation) Produce high quality light without consuming much power with the manually operated MAGIS Daylight-Balanced LED Fresnel Light from DeSisti which utilizes a highly efficient 5600K LED with an output equivalent to a 250W HMI fixture. It uses a 4.75" diameter Fresnel lens to adjust the spot-to-flood beam angle of 12-41°. Also, it is DMX-controlled for smooth dimming from 0-100%. Further benefiting performance are a self-stabilizing active cooling system which regulates temperature of the LED array, and a durable carbon steel housing to protect the electronics. Additionally, it has a built-in universal 120-240 VAC power supply for worldwide use.
- 4.75" (120mm) diameter shock resistant Borosilicate glass Fresnel lens on spring supports.
- Durable, lightweight carbon steel housing with low glare, black epoxy powder coating, with internal double walls and reinforcements.
- High efficiency, self-stabilizing active cooling system with automatic thermal stabilization of the LED operating temperature is managed by an internal thermal sensor and CPU, variable speed fan, and heat sink. This maintains the LED array's constant temperature at a maximum of 149°F (65°C). The hydrodynamic bearing fan operates silently with a low RPM.
- Brass helix screw-driven focus mechanism guides Teflon bushings-supported LED engine along two rods for smooth operation during focusing and in any tilting position. The bushings also provide a wiping action, which cleans the steel guide rails during focus.
- Unit is equipped with a hinged lens door with wire-guard and includes accessory holding brackets. One of the four brackets has a locking knob and is spring-loaded, it can be locked to either safely hold barndoors, color frame and scrims, or be rotated 90° and locked in an open position for fast changes.
- Accessories can be secured regardless of the fixture's orientation, and they have been designed for one-handed installation.
- Photometrics
- Flood (50% Center Value) 48°
890 lux / 83 fc at 9.8' (3 m) with beam diameter of 7.4' (2.2 m)
320 lux / 30 fc at 16.4' (5 m) with beam diameter of 12.3' (3.7 m)
80 lux / 7 fc at 32.8' (10 m) with beam diameter of 24.5' (7.5 m)
Spot (50% Center Value) 12°
3,700 lux / 344 fc at 9.8' (3 m) with beam diameter of 2.1' (0.6 m)
1,332 lux / 124 fc at 16.4' (5 m) with beam diameter of 3.5' (1.1 m)
333 lux / 31 fc at 32.8' (10 m) with beam diameter of 6.9' (2.1 m) - Set of 4 Scrims for Magis 650 Fresnel (5 1/8") This is a Set of 4 Scrims for the DeSisti Magis 650 Fresnel or any other fixture that accepts a 5 1/8" accessory.Full scrims dim the light across the entire beam spread, and 1/2 and graduated scrims are used to even the beam spread when lighting a subject or background from an angle.Keep several densities of scrims available to be prepared for any lighting situation.
- Light Stand (7.8') This 7.8' DeSisti Light Stand is a versatile, lightweight aluminum stand that's quick to set up, and very stable. It features a black anodized finish, and it works in all kit combinations.
- Large, sure locking knobs
In the Box Bundle Items 3 x MAGIS Super Daylight-Balanced LED Fresnel Light (Manual Operation) fzqftffsxtyavfrx - Manually Operated Yoke with 5/8" (16mm) Socket
- Powercon Detachable Mains Cable for CST Fixtures - 12' (3.6m)
- 4 Leaf Barndoor Set for Magis
- Color Frame for Magis 650
- Extruded C-Clamp with 5/8" Stud
Set of 4 Scrims for Magis 650 Fresnel (5 1/8") 3 x Light Stand (7.8') fzqftffsxtyavfrx
Also Includes User Manual PDF 863.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Super LED F4.7 Daylight-Balanced 3-Fresnel Kit with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MAGIS Super Daylight-Balanced LED Fresnel Light (Manual Operation)
| Light Source | 60 W LED
Lamp Life: 50,000 hours with 70% lumen maintenance, tested and certified to LM80 | | Color Temperature | 5600K | | CRI | 90+ | | Beam Angle | 12-41° | | Field Angle | 22-64° | | Dimming | 0-100% via DMX | | Control | DMX512
DMX channels: 1 at 8-bit (dimmer), 2 at 16-bit (dimmer)
Connectors: 5-Pin XLR DMX in/out
DMX daisy chaining up to 32 lights | | Cable | 9.8' (3.0 m) detachable powerCON cable with bare ends | | Mount | Yoke with 5/8" (16 mm) spigot | | Operating Voltage | 120-240 VAC 50/60 Hz | | Power Consumption | 75 W at 120 VAC, 50/60 Hz
71 W at 230 VAC, 50/60 Hz | | IP Rating | IP 22 | | Dimensions | 6.8 x 7.8 x 13.8" (176 x 200 x 352 mm) including yoke
Lens Diameter: 4.75" (120 mm) | | Weight | 7.7 lb (3.5 kg) without barndoors | | | | Box Dimensions (LxWxH) | 15.9 x 11.7 x 8.6" | - Set of 4 Scrims for Magis 650 Fresnel (5 1/8")
| | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 0.25" | - Light Stand (7.8')
| Load Capacity | 9 lb / 4.1 kg | | Mounting Options | 5/8" Stud | | Maximum Working Height | 7.8' / 2.4 m | | Minimum Working Height | 27" / 68 cm | | Collapsed Height | 27" / 69 cm | | Footprint Diameter | 37" / 94 cm | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 2.4 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 26.0 x 3.0 x 1.0" |
