Product description

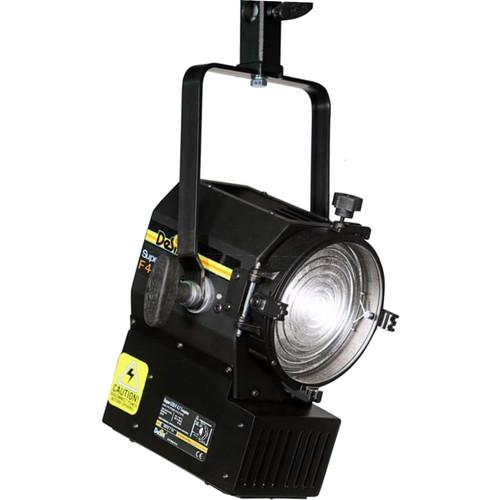

• Super LED F4.7 Daylight-Balanced Fresnel Light (Manually Operated, Battery Option) Utilizing a powerful, yet efficient 60W LED and a 4.75" diameter Fresnel lens, the Manually Operated, Super F4.7 Daylight-Balanced LED Fresnel Light from DeSisti can replace a 250W HMI fixture and provide a versatile spot-to-flood beam angle of 12 to 41°. The specialized, daylight-balanced 5600K chip-on-board LED array offers a high CRI/TLCI of 95 / 93 for accurate color rendition. The unit is also DMX controlled with smooth dimming from 0-100%. It has a high efficiency, Self-Stabilizing Active Cooling system for thermal regulation and a durable, lightweight carbon steel housing to protect the electronics. The light has manual panning and tilting and a 5/8" receiver that is ready for stand mounting. In addition, it has a built-in universal 120-240 VAC power supply for worldwide use and comes with a 4-way barn door set and a color frame. This version of the F4.7 also has a battery-power option that provides 1 hour of run time at full power. The battery and charger must be purchased separately.
  • 4.75" (120mm) diameter, high quality, shock resistant borosilicate glass Fresnel lens on spring supports. Special patented optics for LED technology
  • This version of the F4.7 also has a battery-power option that provides 1 hour of run time at full power. The battery and charger must be purchased separately.
  • Rugged and lightweight carbon steel housing with low glare black epoxy powder coating, with internal double walls and reinforcement
  • High efficiency, self-stabilizing active cooling: automatic, thermal stabilization of the LED operating temperature is managed by an internal thermal sensor and CPU, variable speed fan and heat sink to maintain the LED Array's constant temperature at a maximum of 149°F (65°C). The hydrodynamic bearing fan operates silently with a very low RPM.
  • Helix Screw-driven focus mechanism which guides Teflon bushings supported LED ENGINE along 2 rods. This ensures smooth operation during focusing, in any tilting position of the fixture. The Teflon bushings also provide a wiping action, which cleans the steel guide rails during focus.
  • The unit is equipped with a hinged lens door with a wire-guard and includes accessory holding brackets. One of the 4 brackets has a locking knob and is spring loaded; it can be locked to safely hold the barn doors, color frame and scrims. It can also be rotated 90° and locked in an open position for fast accessories changes. Accessories are designed for one hand installation and are secure regardless of the orientation of the fixture.
  Photometrics
  • Full Flood 41°
    890 lux / 83 fc at 9.8' (3.0 m) with beam diameter of 7.4' (2.24 m)
    320 lux / 30 fc at 16.4' (5.0 m) with beam diameter of 12.3' (3.74 m)
    80 lux / 7 fc at 32.8' (10 m) with beam diameter of 24.5' (7.48 m)Full Spot 12°
    3700 lux / 344 fc at 9.8' (3.0 m) with beam diameter of 2.07' (0.63 m)
    1332 lux / 124 fc at 16.4' (5.0 m) with beam diameter of 3.45' (1.05 m)
    333 lux / 31 fc at 32.8' (10 m) with beam diameter of 6.90' (2.10 m)
• Set of 4 Scrims for Magis 650 Fresnel (5 1/8") This is a Set of 4 Scrims for the DeSisti Magis 650 Fresnel or any other fixture that accepts a 5 1/8" accessory.Full scrims dim the light across the entire beam spread, and 1/2 and graduated scrims are used to even the beam spread when lighting a subject or background from an angle.Keep several densities of scrims available to be prepared for any lighting situation.
• Light Stand (7.8') This 7.8' DeSisti Light Stand is a versatile, lightweight aluminum stand that's quick to set up, and very stable. It features a black anodized finish, and it works in all kit combinations.
  • Large, sure locking knobs

• 4.75" Fresnel Lens

• Manually Operated Yoke

• Detachable Powercon Input Mains Cable (12')

• 4 Leaf Barndoor Set for Magis

• Color Frame for Magis 650

• Limited 1-Year Warranty

• Full Single Scrim

• Half Single Scrim

• Full Double Scrim

• Half Double Scrim

Also Includes

• Hard Kit Case
