User Manual for DeSisti Super LED F4.7 Tungsten-Balanced Fresnel Light Click to enlarge the picture
Contents of the user manual for the DeSisti Super LED F4.7 Tungsten-Balanced Fresnel
- Product category: LED Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti LED Lights
|
User manual for the DeSisti Super LED F4.7 Tungsten-Balanced Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|

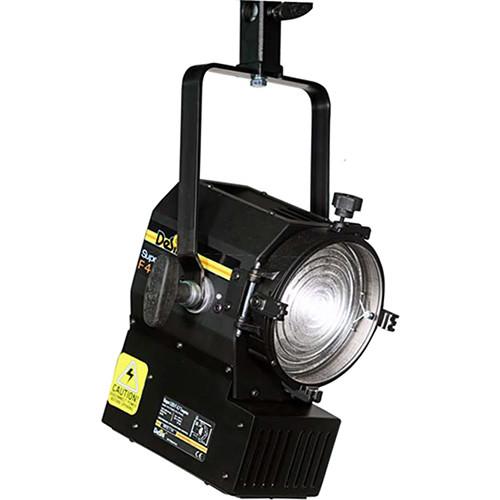

Product description Utilizing a powerful, yet efficient 60W LED and a 4.75" diameter Fresnel lens, the Manually Operated, Super F4.7 Tungsten-Balanced LED Fresnel Light from DeSisti can replace a 750W tungsten Fresnel fixture and provide a versatile spot-to-flood beam angle of 12 to 41°. The specialized, tungsten-balanced 3200K chip-on-board LED array offers a high CRI/TLCI of 92 / 91 for accurate color rendition. The unit is also DMX controlled with smooth dimming from 0-100%. It has a high efficiency, Self-Stabilizing Active Cooling system for thermal regulation and a durable, lightweight carbon steel housing to protect the electronics. The light has manual panning and tilting and a 5/8" receiver that is ready for stand mounting. In addition, it has a built-in universal 120-240 VAC power supply for worldwide use and comes with a 4-way barn door set and a color frame. This version of the F4.7 also has a battery-power option that provides 1 hour of run time at full power. The battery and charger must be purchased separately. - 4.75" (120mm) diameter, high quality, shock resistant borosilicate glass Fresnel lens on spring supports. Special patented optics for LED technology
- This version of the F4.7 also has a battery-power option that provides 1 hour of run time at full power. The battery and charger must be purchased separately.
- Rugged and lightweight carbon steel housing with low glare black epoxy powder coating, with internal double walls and reinforcement
- High efficiency, self-stabilizing active cooling: automatic, thermal stabilization of the LED operating temperature is managed by an internal thermal sensor and CPU, variable speed fan and heat sink to maintain the LED Array's constant temperature at a maximum of 149°F (65°C). The hydrodynamic bearing fan operates silently with a very low RPM.
- Helix Screw-driven focus mechanism which guides Teflon bushings supported LED ENGINE along 2 rods. This ensures smooth operation during focusing, in any tilting position of the fixture. The Teflon bushings also provide a wiping action, which cleans the steel guide rails during focus.
- The unit is equipped with a hinged lens door with a wire-guard and includes accessory holding brackets. One of the 4 brackets has a locking knob and is spring loaded; it can be locked to safely hold the barn doors, color frame and scrims. It can also be rotated 90° and locked in an open position for fast accessories changes. Accessories are designed for one hand installation and are secure regardless of the orientation of the fixture.
- Photometrics
- Full Flood 41°
885 lux / 82 fc at 9.8' (3.0 m) with beam diameter of 7.4' (2.24 m)
319 lux / 30 fc at 16.4' (5.0 m) with beam diameter of 12.3' (2.74 m)
80 lux / 7 fc at 32.8' (10 m) with beam diameter of 24.5' (7.48 m)Full Spot 12°
3580 lux / 333 fc at 9.8' (3.0 m) with beam diameter of 2.1' (0.63 m)
1289 lux / 120 fc at 16.4' (5.0 m) with beam diameter of 3.4' (1.05 m)
322 lux / 30 fc at 32.8' (10 m) with beam diameter of 6.9' (2.10 m) In the Box DeSisti Super LED F4.7 Tungsten-Balanced Fresnel Light (Manually Operated, Battery Option) 4.75" Fresnel Lens Manually Operated Yoke Detachable Powercon Input Mains Cable (12') 4 Leaf Barndoor Set for Magis Color Frame for Magis 650 adufwyasxstbefeexasbxbzqsayus Limited 1-Year Warranty Data Sheet PDF 719kb Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Super LED F4.7 Tungsten-Balanced Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti LED F4.7 Specs | Light Source | 60 W LED, lamp life: 50,000 Hours with 70% lumens, tested and certified up to LM80 | | Color Temperature | 3200K | | CRI / TLCI | 92 / 91 | | Lens | 4.75" (120 mm) Fresnel | | Beam Angle | 12-41° | | Field Angle | 22-64° | | Dimming | 0-100% via DMX | | Control | DMX512
DMX channels: 1 at 8-bit (dimmer), 2 at 16-bit (dimmer)
Connectors: 5-Pin XLR DMX In/Out
DMX daisy chaining up to 32 lights
1 x 20 A powerCON NAC3MPA Blue (power in)
1 x 20 A powerCON NAC3MPB White (power out) | | Cable | 9.8' (3.0 m) detachable powerCON cable with bare ends | | Mount | Manually Operated yoke with 5/8" (16 mm) receiver | | Operating Voltage | 120-240 VAC 50/60 Hz | | Power Consumption | U.S.A.: 75 W @ 120 VAC, 50/60 Hz Europe: 71 W @ 230 VAC, 50/60 Hz | | IP Rating | IP22 | | Dimensions | 7.8 x 6.8 x10" (200 x 176 x 256 mm) Including yoke, without 5/8" (16 mm) receiver | | Weight | 7.7 lb (3.5 kg) Without barn doors |
