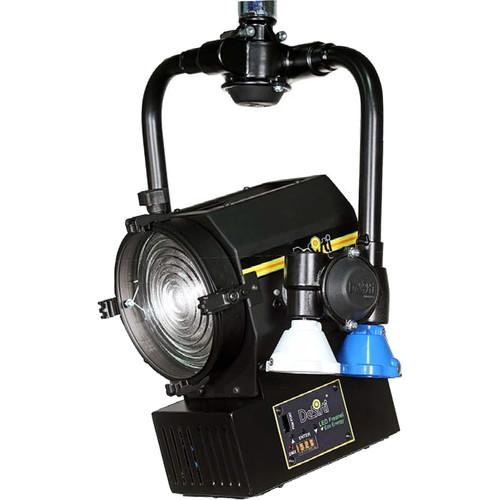

Product description The Super LED F4.7 Vari-White LED Fresnel Spotlight from DeSisti features a variable white phosphors LED array that provides the ability to modulate the correlated color temperature from a minimum of 2800K to a maximum of 6600K, and has an enhanced CRI (Color Rendering Index) higher than 94 at any CCT within the range. The fixture is DMX-controlled for 0 to 100% dimming, has a step mode for CCT control in increments of 400K every 10% of DMX variation, and has a continuous mode for CCT control. It combines spot/flood beam control on an equivalent focus range to a conventional lamp fresnel with the use of barndoors. The fixture comes with a pole-operated yoke which can be used via a lighting pole for panning and tilting the light. - Variable white CCT technology, with a range from 2800K to 6600K
- High output optics with the flexibility of variable color temperature
- 50,000-hour LED array life
- Universal A/C input voltage from 90 to 240V
- 0 to 100% dimming via DMX 512
- Silent dimming with little to no color shift
- Universal powerCON AC input
- Shock resistant borosilicate glass Fresnel lens on spring supports
- Automatic, thermal stabilization of the LED operating temperature is managed by an internal thermal sensor and CPU, variable speed fan and heat sink to maintain the LED Array's constant temperature at a maximum of 65°C
- Hydrodynamic bearing fan operates silently with a very low RPM
In the Box DeSisti Super LED F4.7VW Vari-White LED Fresnel Pole Operated Spotlight Blue POWERCON Power Cable Yoke with 28.5mm Spigot (B.S. 1 1/8") with Top End for C Clamp 4 Leaf Barndoor Set for Magis Color Frame for Magis 650 User Manual PDF 863.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Super LED F4.7VW Vari-White LED Fresnel Pole Operated Spotlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti Super F4.7 Specs | Power | 60 W
DC Current to the LED (flicker-free) | | Power Consumption | 75 W @ 120 V, 50 to 60 Hz | | DMX 512 Connectors | Use a 5-pin XLR for DMX input and output
Shielded data cables (sold separately)
Up to a maximum of 32 devices can be used on a single DMX chain
* Do not overload the daisy chain | | DMX Channels | Total 3 DMX Channels:
Base: Dimmer/ Light Intensity
Base +1: CCT Control
Base +2: Mode of CCT Control (steps or continuous) | | Lens Diameter | 4.75" (120 mm) Fresnel lens | | Photometric Data | Full Flood
@ 2800K CCT, 9.8' (3 m)
Illumination center values at distances 387 lux (36 fc)
@ 6600K CCT, 9.8' (3 m)
Illumination center values at distances 433 lux (40 fc)
Light beam diameter with beam angle 9.2' (2.8 m)
Light beam diameter with field angle 13.8' (4.2 m)
@ 2800K CCT, 16.4' (5 m)
Illumination center values at distances 139 lux (13 fc)
@ 6600K CCT, 16.4' (5 m)
Illumination center values at distance 156 lux (14 fc)
Light beam diameter with beam angle 15.3' (4.66 m)
Light beam diameter with field angle 23' (7 m)
@ 2800K CCT, 32.8' (10 m)
Illumination center values at distances 35 lux (3 fc)
@ 6600K CCT, 32.8' (10 m)
Illumination center values at distances 39 lux (4 fc)
Light beam diameter with beam angle 30.6' (9.33 m)
Light beam diameter with field angle 45.9' (14.0 m)
Full Spot
@ 2800K CCT, 9.8' (3 m)
Illumination center values at distances 2394 lux (222 fc)
@ 6600K CCT, 9.8' (3 m)
Illumination center values at distances 2654 lux (247 fc)
Light beam diameter with beam angle 1.9' (0.58 m)
Light beam diameter with field angle 3.5' (1.06 m)
@ 2800K CCT, 16.4' (5 m)
Illumination center values at distances 862 lux (80 fc)
@ 6600K CCT, 16.4' (5 m)
Illumination center values at distance 955 lux (89 fc)
Light beam diameter with beam angle 3.2 (0.96 m)
Light beam diameter with field angle 5.8' (1.7 m)
@ 2800K CCT, 32.8' (10 m)
Illumination center values at distances 215 lux (20 fc)
@ 6600K CCT, 32.8' (10 m)
Illumination center values at distances 239 lux (22 fc)
Light beam diameter with beam angle 6.3' (1.93 m)
Light beam diameter with field angle 11.6' (3.53 m) | | LED Life | 50,000 hours with 70% lumen maintenance | | Protection Type | IP22 | | Temperature | Maximum Housing Surface: 158°F (70°C) | | Dimensions | 10.2 x 15.9 x 10" (25.9 x 40.3 x 25 cm) | | Weight | 12 lb (5.4 kg) |
