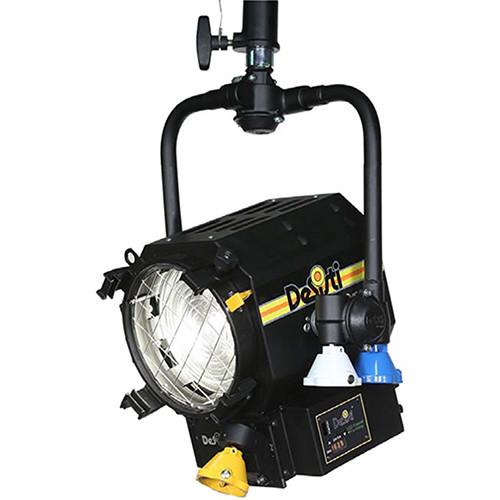

Product description The Pole Operated Super LED F6 Vari-White 6" Fresnel from DeSisti is a high output fixture with a patented optical system and color temperature that's tunable from 2800 to 6600K with a high CRI of 94 and a TLCI rating of 96 for precise color rendering. The F6 has an extensive spot-to-flood range of 9 to 55 degrees for maximum flexibility in coverage. Focusing action is steel cable driven and guides Teflon bushings supporting the LED engine along 2 rods for maximum smoothness. The light has a 3-channel onboard DMX for remote dimming from 0-100% and color tuning in Continuous Mode or in 400K steps. For large setups you can both power and DMX daisy chain to eliminate superfluous wiring. The Super LED F6 Vari-White has a 90-240 VAC power supply for worldwide use. - Benefits
-
- CRI greater than 94 at any CCT within the range
- Variable White CCT technology, with a range from 2800K to 6600K
- High output and patented optics with the flexibility of variable color temperature
- 50,000-Hour LED array life
- Step Mode for CCT Control: Increments of 400K every 10% of DMX variation
- Continuous Mode for CCT control
- Spot/Flood beam control on a focus range equivalent to a conventional lamp Fresnel with precise barn door cutting
- Universal A/C input voltage from 90-240 VAC
- True smooth and silent 100-0% dimming via DMX 512 with little or no color shift
- 6" (150mm) Diameter, high quality, shock resistant borosilicate glass Fresnel lens
- Rugged and lightweight carbon steel housing
- High efficiency, self-stabilizing active cooling via low RPM fan and heat sink
- Steel, cable-driven focus mechanism guides Teflon bushings and supports LED engine along 2 rods to ensure smooth operation
- Equipped with a hinged lens door with a wire-guard and includes accessory holding brackets
- Uses standard accessories from the DeSisti range for equivalent Fresnel lens size
- Photometrics
- Flood (50% center value) 55° 2800K 642 lux / 60 fc at 9.8' (3.0 m) with beam diameter of 10.2' (3.12 m)
231 lux / 21 fc at 16.4' (5.0 m) with beam diameter of 17.1' (5.21 m)
58 lux / 5 fc at 32.8' (10 m) with beam diameter of 34.2' (10.41 m) Flood (50% center value) 55° 6600K 831 lux / 77 fc at 9.8' (3.0 m) with beam diameter of 10.2' (3.12 m)
299 lux / 28 fc at 16.4' (5.0 m) with beam diameter of 17.1' (5.21 m)
75 lux / 7 fc at 32.8' (10 m) with beam diameter of 34.2' (10.41 m) Full Spot (50% center value) 9° 2800K 5342 lux / 496 fc at 9.8' (3.0 m) with beam diameter of 1.5' (0.47 m)
1923 lux / 179 fc at 16.4' (5.0 m) with beam diameter of 2.6' (0.79 m)
481 lux / 45 fc at 32.8' (10 m) with beam diameter of 5.2' (1.57 m) Full Spot (50% center value) 9° 6600K 6800 lux / 632 fc at 9.8' (3.0 m) with beam diameter of 1.5' (0.47 m)
2448 lux / 227 fc at 16.4' (5.0 m) with beam diameter of 2.6' (0.79 m)
612 lux / 57 fc at 32.8' (10 m) with beam diameter of 5.2' (1.57 m) In the Box DeSisti Super LED F6 Vari-White 6" Fresnel (Pole Operation) Detachable Powercon Input Mains Cable (12') Pole Operated Yoke with 1-1/8" Spigot 4 Leaf Barndoor Set Color Frame for Leonardo 1K Limited 1-Year Warranty User Manual PDF 864.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Super LED F6 Vari-White 6" Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti LED F6 VW Specs | Light Source | 120 W LED
Lamp life: 50,000 Hours with 70% Lumen Maintenance | | Color Temperature | 2800 to 6600K | | CRI / TLCI | CRI >94, TLCI 96 | | Beam Angle | 9 - 55° | | Dimming | 0-100% via DMX | | Cooling | Fan and heat sink | | Control | DMX512
3 DMX channels:
Base: Dimmer/Light Intensity
Base +1: CCT Control
Base +2: Step or Continuous CCT Control
DMX connectors: 5-Pin XLR DMX In/Out
DMX and power daisy chaining up to 32 lights
Power connectors: 20 A powerCON NAC3MPA blue Power In
20 A powerCON NAC3MPA white Power Out | | Cable | 9.8' (3.0 m) detachable powerCON cable with bare ends | | Mount | Pole Operated yoke with 1-1/8" (28 mm) spigot | | Operating Voltage | 90-240 VAC 50/60 Hz | | Power Consumption | 150 W at 120 VAC, 50/60 Hz
141 W at 230 VAC, 50/60 Hz | | IP Rating | IP 22 Water resistant | | Max Temperature | Max surface temperature: 158° (70°C) | | Dimensions | 18.1 x 12.2 x 11.8" (460 x 310 x 300 mm) including yoke, without spigot
Lens diameter: 6.0" (150 mm) | | Weight | 20 lb (9.1 kg) Without barndoors and filter frame |
