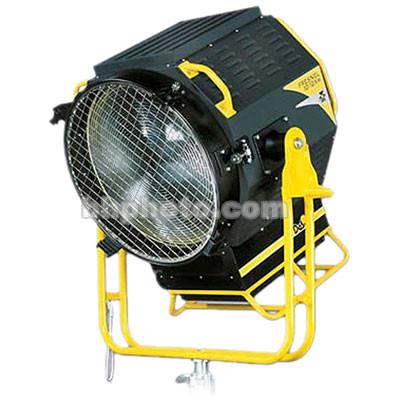

User Manual for DeSisti Super Leonardo 10 12KW Fresnel Light - 20" - Stand Mount Click to enlarge the picture
Contents of the user manual for the DeSisti Super Leonardo 10 12KW Fresnel
- Product category: Tungsten Lights DeSisti
- Brand: DeSisti
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DeSisti Tungsten Lights
|
User manual for the DeSisti Super Leonardo 10 12KW Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DeSisti product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!
|
Product description The Super Leonardo 10 is a 10KW 20" Fresnel tungsten fixture, designed for cine stand mounting. It is ideal for main lighting of large studio sets. It has power switch. Constructed of brushed stainless steel sheets, which are screwed together for easy maintenance and repair. When equipped with a 12KW bulb (available separately), this fixture will supply a beam of light of 669 footcandles 7 feet in diameter from a distance of 40 feet @ full spot. It will throw a beam of 106 footcandles 37.3 feet in diameter @ full flood, from the same distance. - Utilizes a cable driven focusing system instead of a conventional worm gear drive.
- The focusing system uses Teflon bushings, which glide over chrome plated brass rods, eliminating the binding and slippage associated with metal bushings. This helps the rails stay clean, and avoids pitting.
- Offers heavy-duty construction for industrial applications, featuring a 20" fresnel lens.
In the Box DeSisti Super Leonardo 10/12KW Fresnel Light - 20" - Stand Mount (110-230V) Built-in dimmer 6' Detachable power cord with switch WireguardNote: Bulb is not included Table of Contents
|
Upload User Manual
Have you got an user manual for the DeSisti Super Leonardo 10 12KW Fresnel Light - 20" - Stand Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeSisti Super Leonardo 10-12kW Specs | Rating | 10,00 or 12,000 watts | | Socket (Lampholder) | G38 Bi-post | | Lens (Condenser) | 20" Fresnel | | Reflector (Mirror) | Bi-metallic clad aluminum | | Mounting | 1-1/8" junior pin | | Yoke | Heavy duty tubular fork manual tilt and swivel | | Cable | 6' (1.8 M) with Edison plug with switch | | Focusing | Manually operatedrear and front knob
Stainless steel cable driven
1.5 full knob turns from spot to full flood | | Weight | 97.6 lbs (44.2 kg) | | Dimensions | 37.6 x 30.9 x 22.6" (95.5 x 78.4 x 57.4 cm) |
