User Manual for Dexibell CLASSICO L3 76-Key Digital Organ Click to enlarge the picture
Contents of the user manual for the Dexibell CLASSICO L3 76-Key Digital Organ
- Product category: Stage Pianos & Organs Dexibell
- Brand: Dexibell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dexibell Stage Pianos & Organs
 |
User manual for the Dexibell CLASSICO L3 76-Key Digital Organ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dexibell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dexibell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dexibell product will considerably shorten its lifespan!
|

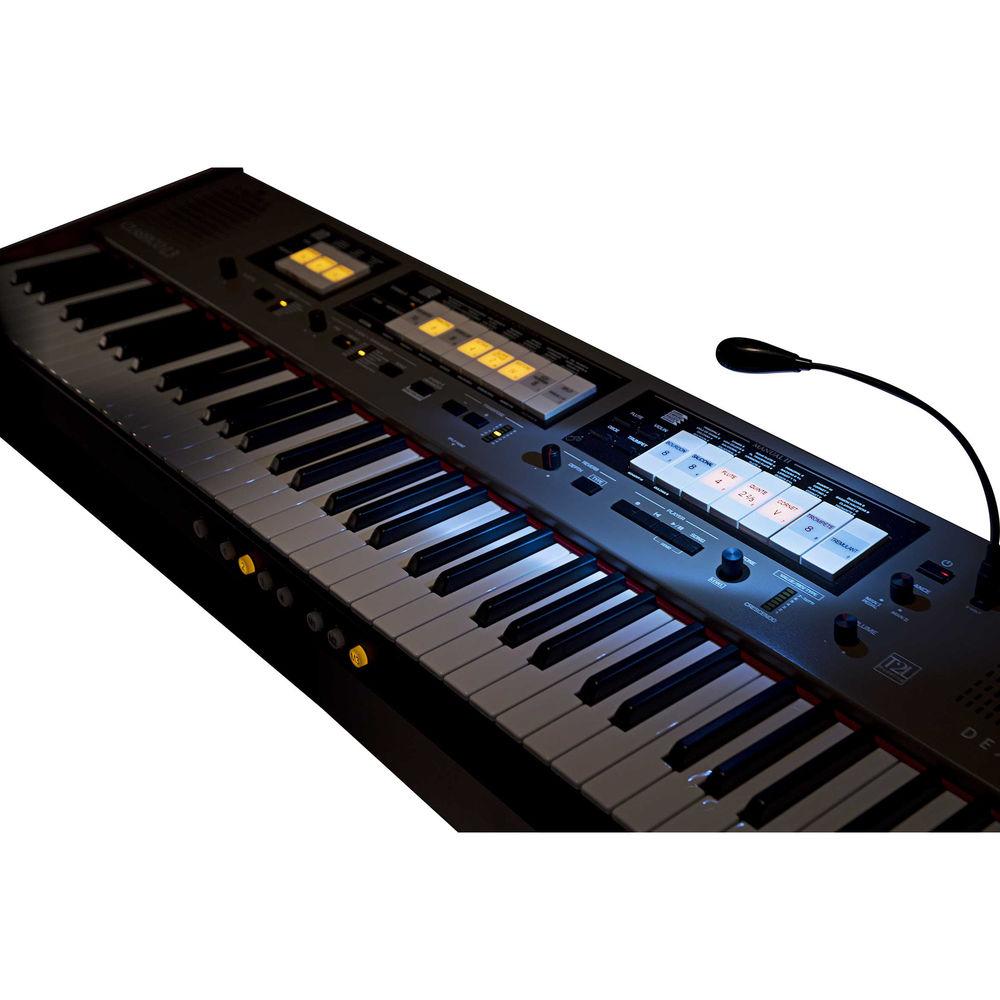

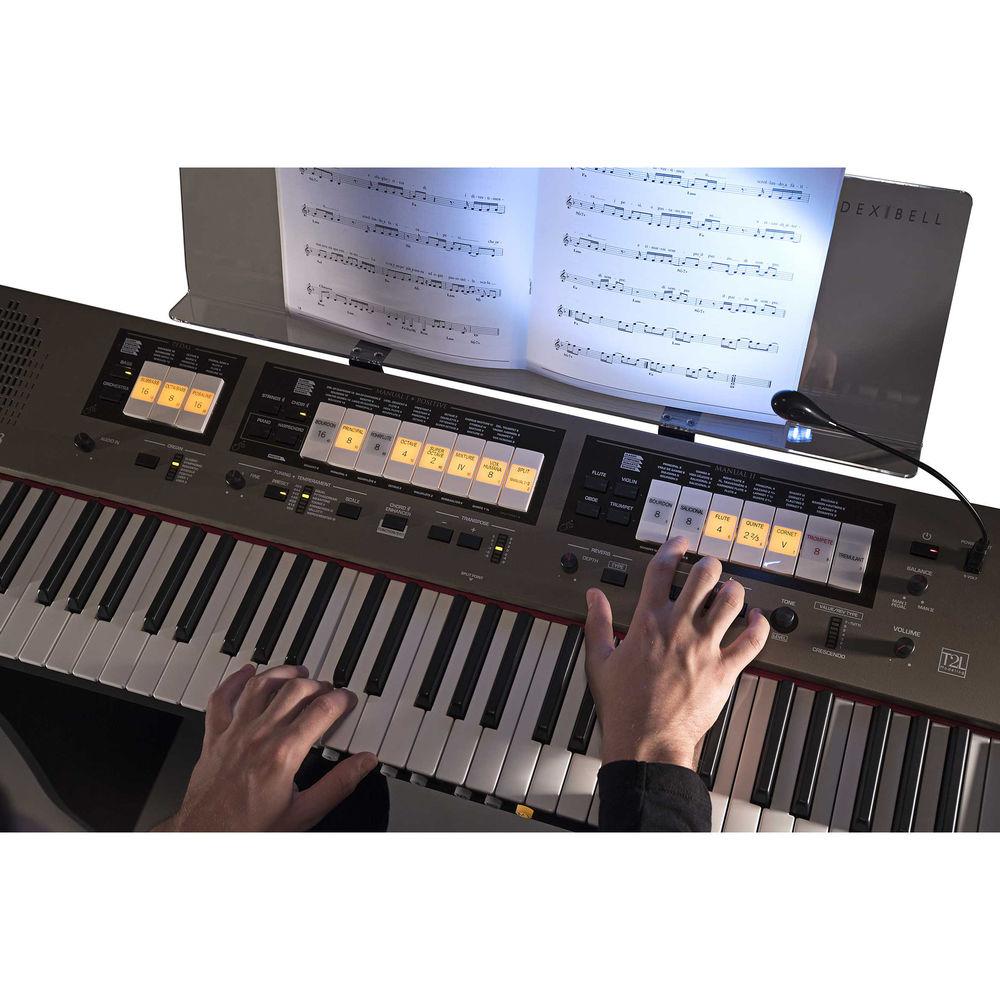

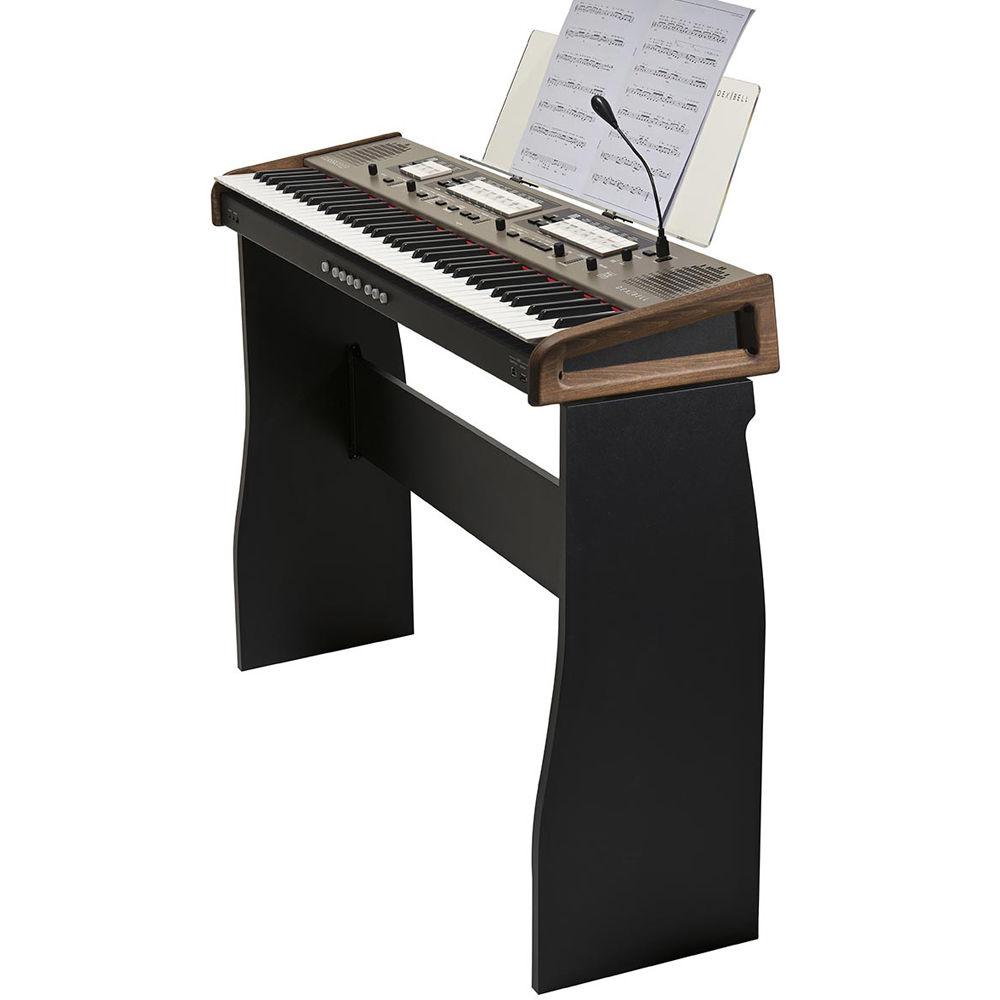

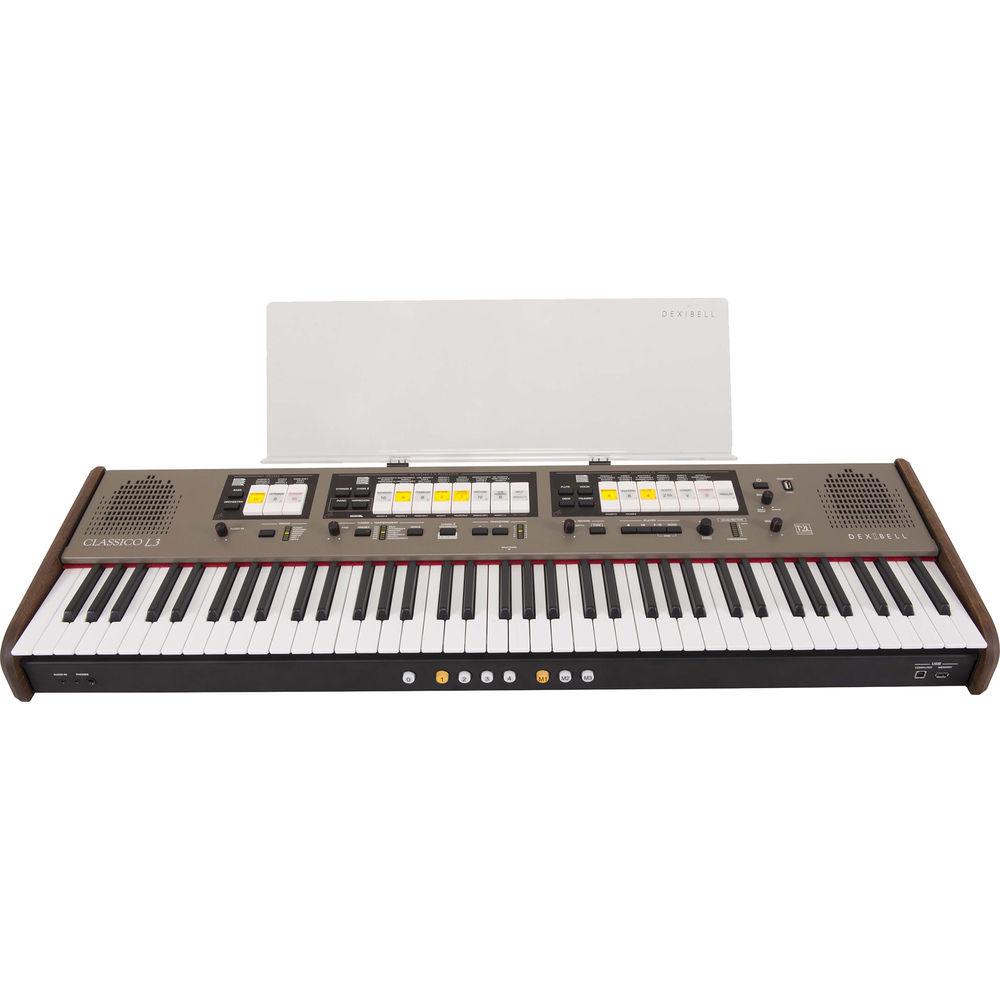

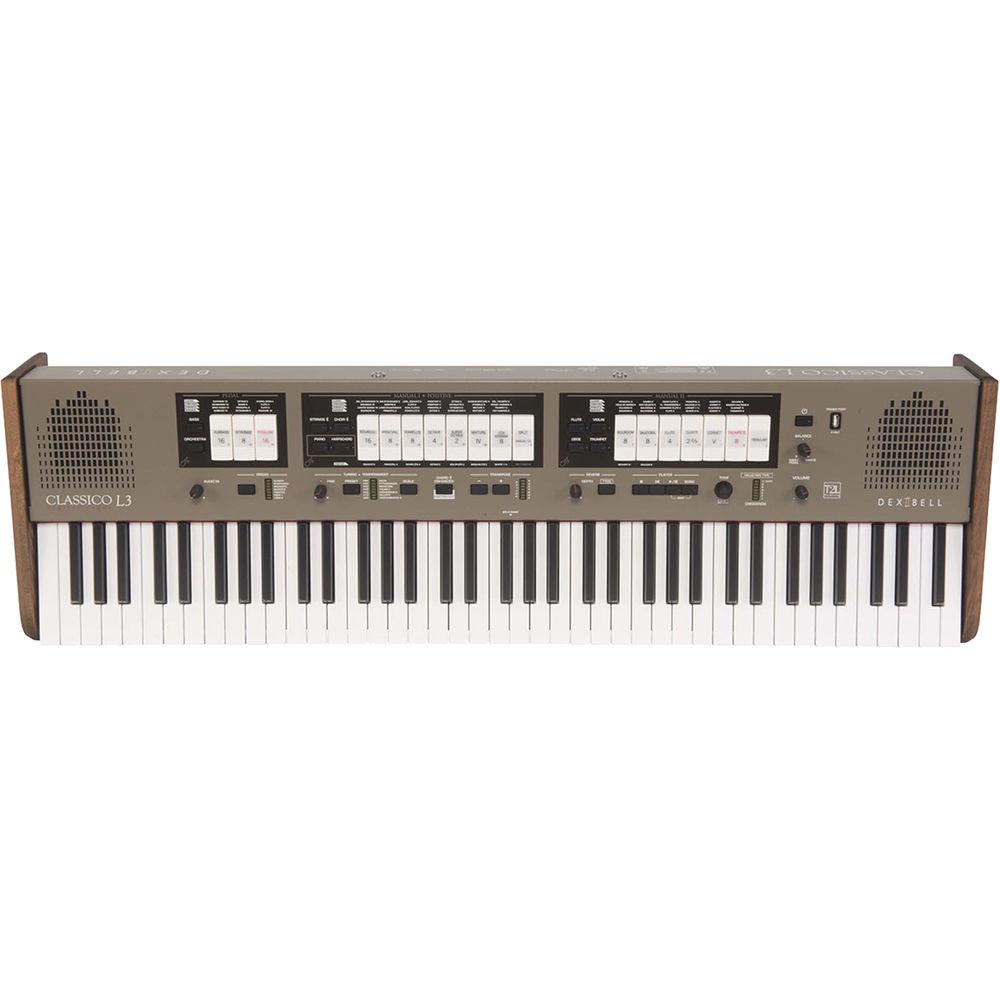

Product description The Dexibell CLASSICO L3 is a 76-key digital organ offering versatile classical organ tones and uncompressed audio recording/playback for use in lessons, studio sessions, and live stage applications. With unlimited notes of polyphony, four simultaneous parts, and 76 keys incorporating dynamic sensitivity, the CLASSICO L3 is welcoming and easily playable for keyboardists and traditional organists. Its memory bank features an array of sounds created with Dexibell's T2L sampling and modeling technology—seven organ types, pedal and manual I/II stops, and 34 orchestral voices are readily available.Enhance your sounds with the internal DSP including seven types of reverb, three types of tremulant, and a master tone control. Jam along with songs from your mobile device through the 3.5mm stereo aux input or to the built-in Bluetooth receiver, or play WAV, AIFF, and MP3 files from an external USB flash drive. Record your rehearsals and performances in 32-bit / 48 kHz resolution to external USB memory, and reference them later via the internal song player. Listen to the integrated stereo speaker system, or utilize the stereo main and headphone outputs to monitor through headphones or external speakers. The CLASSICO L3 includes an AC adapter, a USB LED lamp, and a plexiglass music rest. - 76 keys with dynamic sensitivity
- Utilizes Dexibell's T2L (True 2 Life) technology to deliver a combination of sampling and modeling algorithms with unlimited notes of polyphony, 24-bit / 48 kHz resolution, and up to 15 seconds of recorded WAV samples
- Sounds and effects transition smoothly during patch changes and memory recalls
- Complete set of sounds includes seven organ types (baroque, romantic, symphonic, classic, positive, user 1, and user 2), three pedal stops, seven manual I stops, six manual II stops, and 34 orchestral voices
- Built-in Bluetooth receiver for wirelessly streaming audio from a mobile device
- Seven types of reverb and three types of tremulant
- Versatile master tuning including seven historical presets and fine adjustments of
|
Upload User Manual
Have you got an user manual for the Dexibell CLASSICO L3 76-Key Digital Organ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDexibell CLASSICO L3 Specs | Keyboard | 76 Keys with Dynamic Sensitivity | | Polyphony | Unlimited (with 320 Oscillators) | | Multitimbral | No | | Synthesis Method | T2L (True 2 Life) Sampling and Modeling Technology | | Presets | Master Tuning: 7
Organ Types: 7
Orchestral Voices: 34 | | Sequencer | None | | Record and Playback | Record: 32-Bit / 48 kHz WAV via USB Memory
Playback: WAV, AIFF, and MP3 in All Formats and Resolutions | | User Memory | Organ Types: 2 Front-Panel Settings: 12 (4 Memories x 3 Banks) | | Effects | Reverb: 7 Types
Tremulant: 3 Types

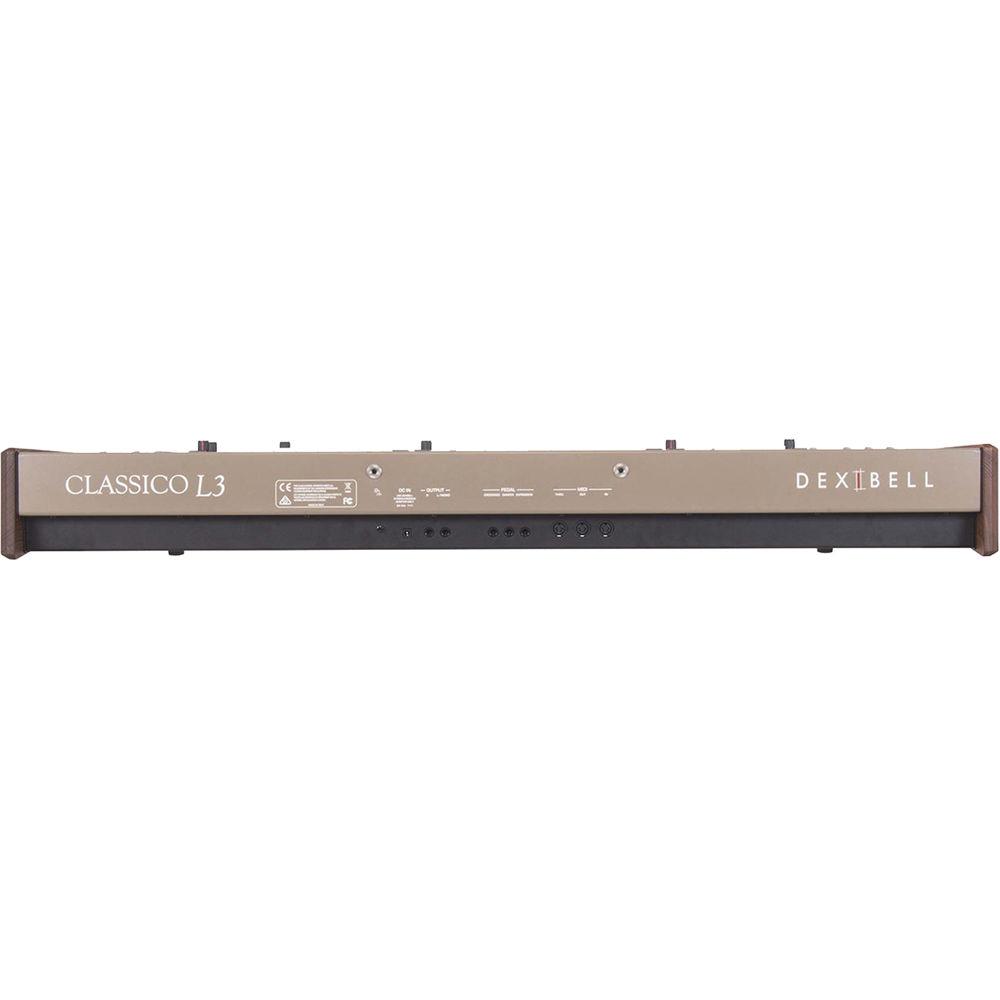

Master Equalizer: Tone Control | | Controllers | None | | Sample RAM | Not Specified by Manufacturer | | Expansion Slots | None | | Inputs | 1 x 1/8" / 3.5 mm Stereo Mini Jack | | Outputs | 2 x 1/4" / 6.3 mm Main Outputs
1 x 1/4" / 6.3 mm Headphone Output
1 x 1/8" / 3.5 mm Headphone Output | | 1/4" Pedal Functions | 1 x 1/4" / 6.3 mm Crescendo Pedal Input
1 x 1/4" / 6.3 mm Damper Pedal Input
1 x 1/4" / 6.3 mm Expression Pedal Input | | MIDI | 1 x DIN 5-pin MIDI Input
1 x DIN 5-Pin MIDI Output
1 x DIN 5-Pin MIDI Thru | | USB | 1 x USB Type-A (to USB LED Lamp)
1 x USB Type-A (to USB Memory)
1 x USB Type-B (to Computer) | | Bluetooth | Built-In Bluetooth Receiver | | Storage | Internal: Not Specified by Manufacturer
External: USB Memory (Available Separately) | | Amplifier | 35 W x 2 | | Speakers | 2 x 3.5" / 8.9 cm Full-Range Speakers | | Maximum SPL | 108.1 dB | | THD + N | < 0.1% at Rated Power Output | | Display | None | | Power Requirement | 24 VDC, 2.5 A via Supplied AC Adapter | | Power Consumption | Standby: < 0.2 W
Power On: 10 W
Average: 14 W
Maximum: 30 W | | Dimensions (W x D x H) | 43.5 x 13.1 x 4.9" / 110.5 x 33.3 x 12.4 cm | | Weight | 30.9 lb / 14 kg | | System Requirements | Computer with Available USB Type-A Port |
