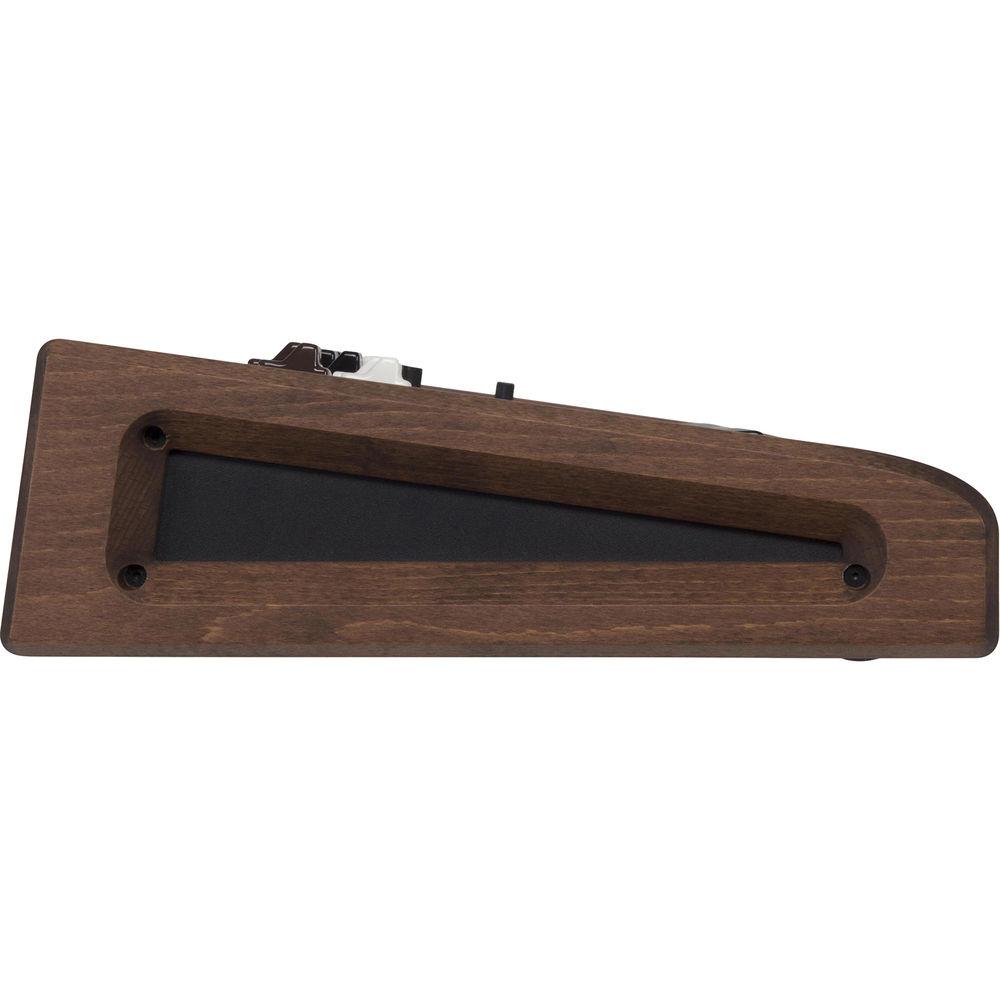

User Manual for Dexibell COMBO J7 73-Key Digital Organ Click to enlarge the picture
Contents of the user manual for the Dexibell COMBO J7 73-Key Digital Organ
- Product category: Stage Pianos & Organs Dexibell
- Brand: Dexibell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dexibell Stage Pianos & Organs
 |
User manual for the Dexibell COMBO J7 73-Key Digital Organ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dexibell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dexibell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dexibell product will considerably shorten its lifespan!
|

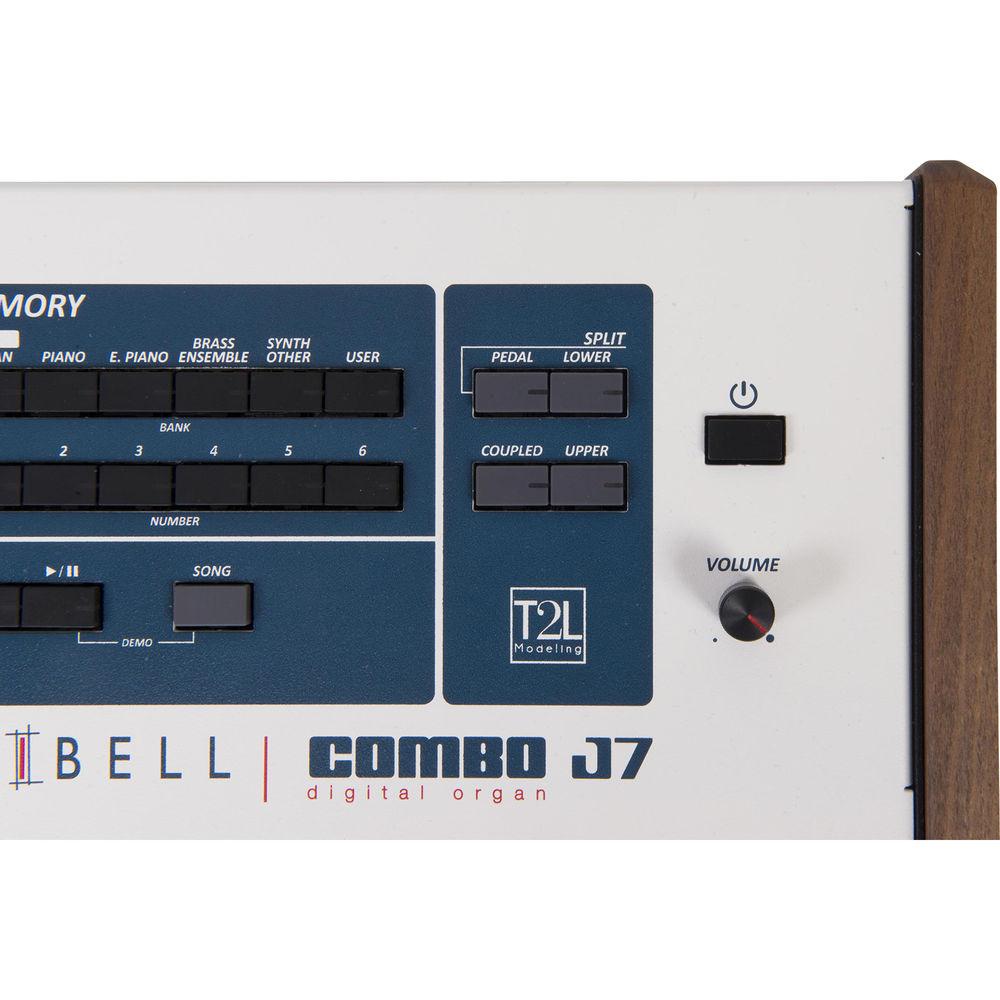

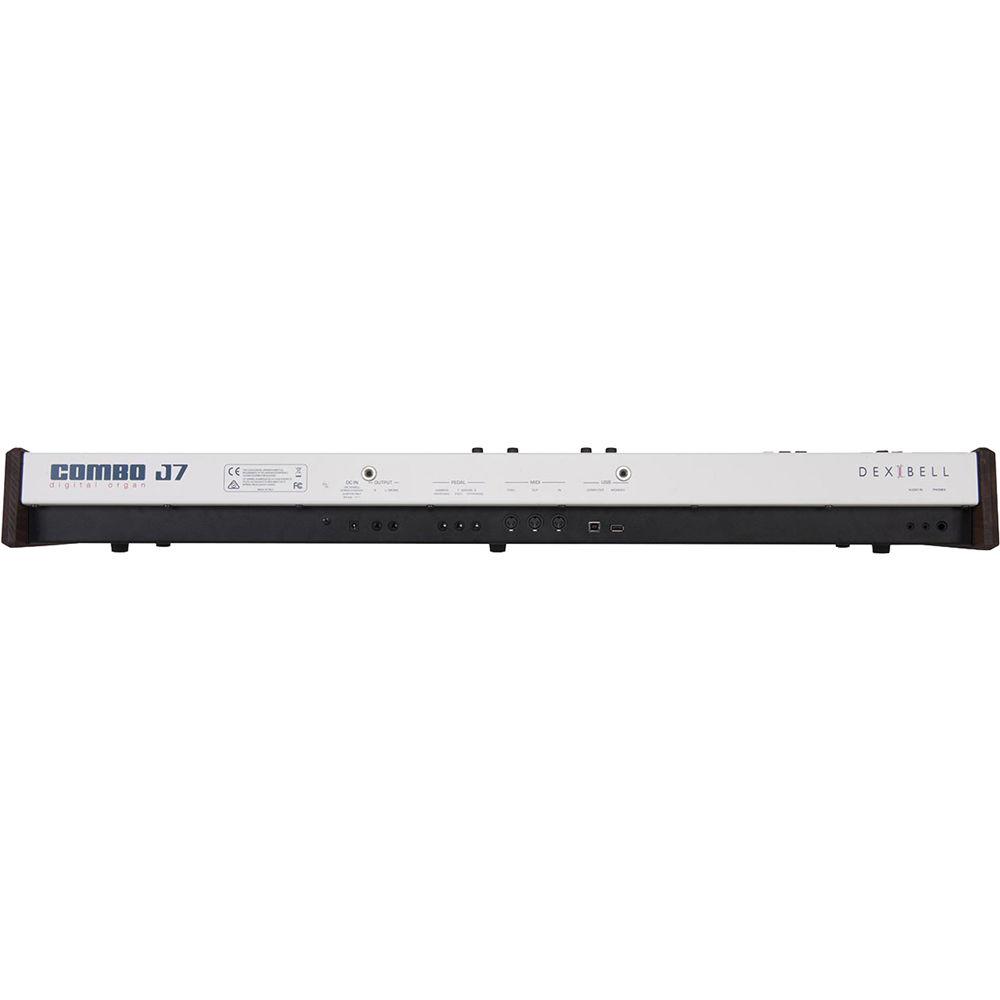

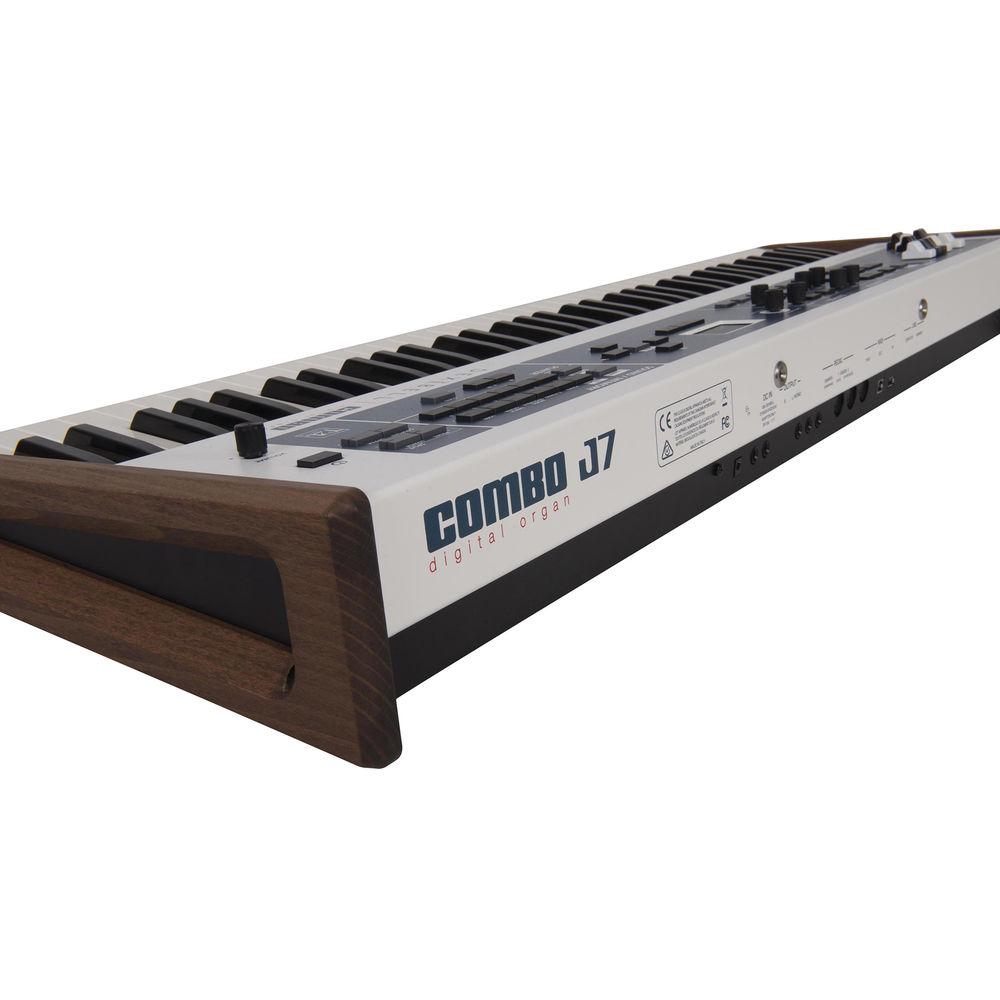

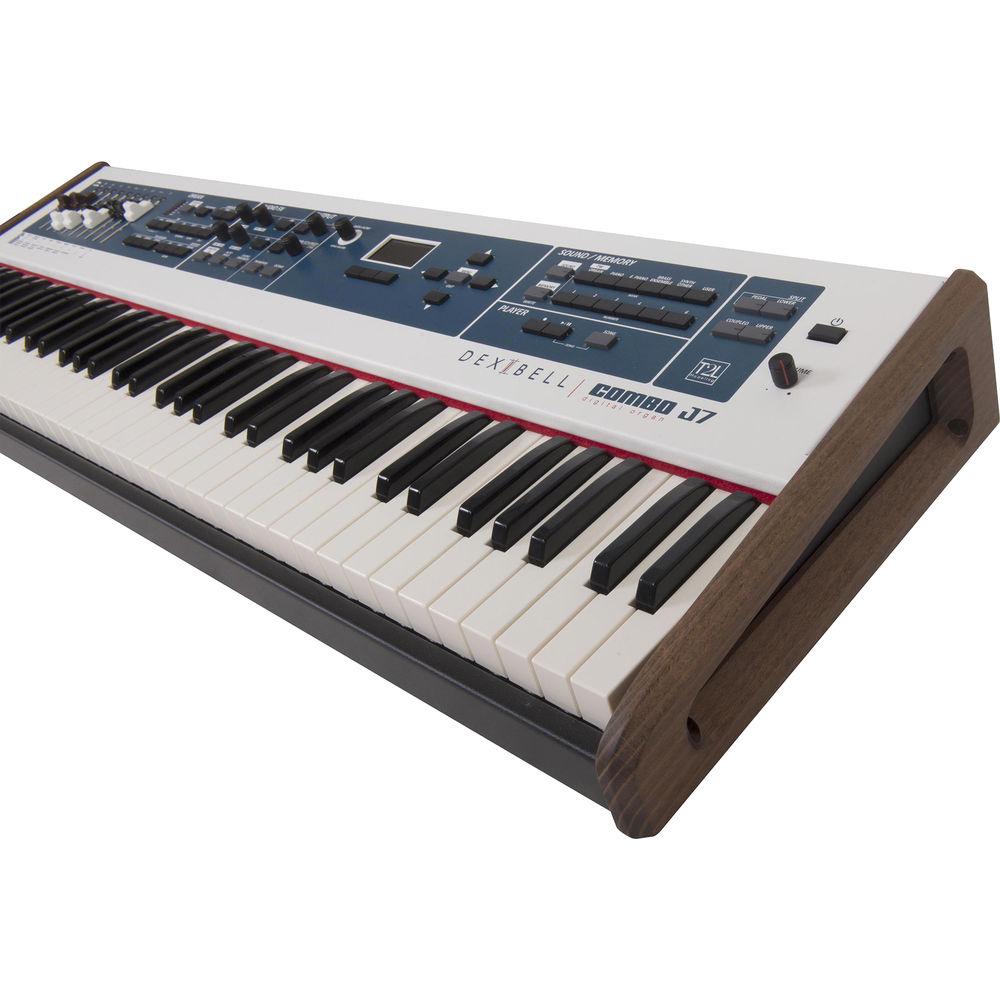

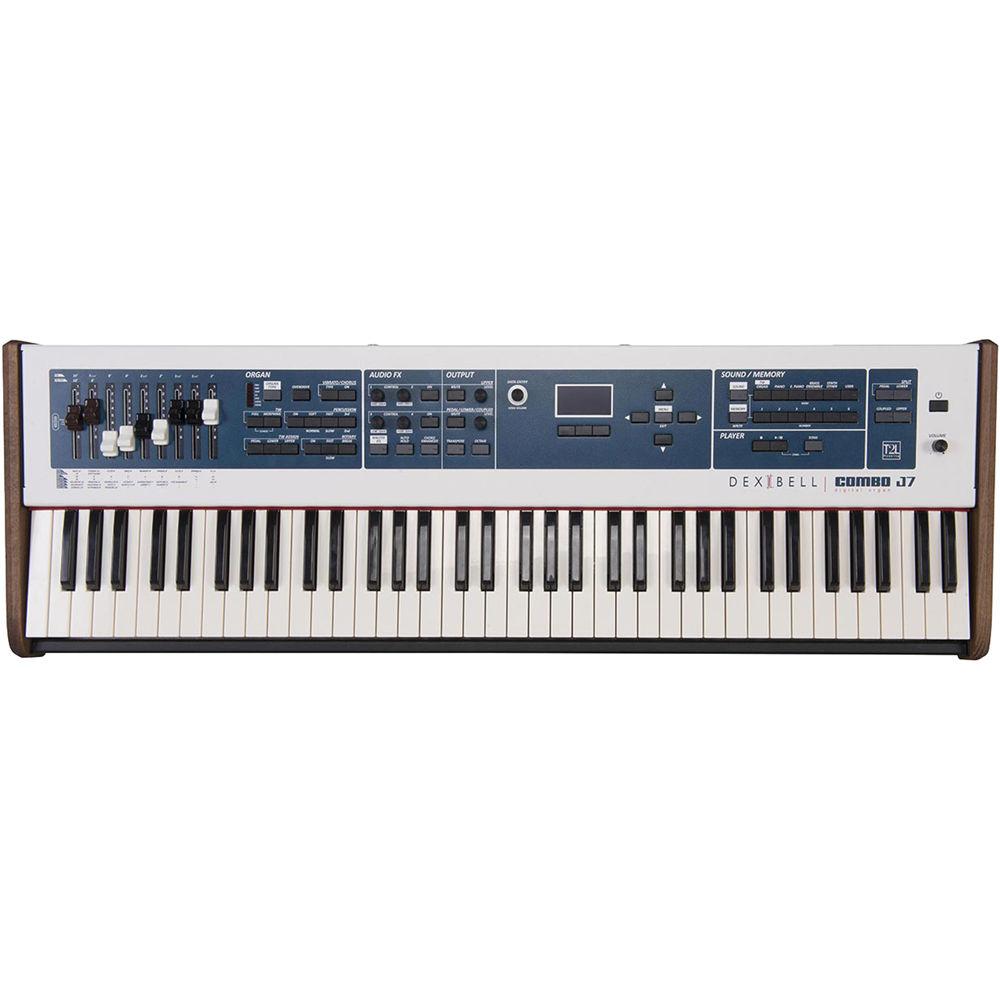

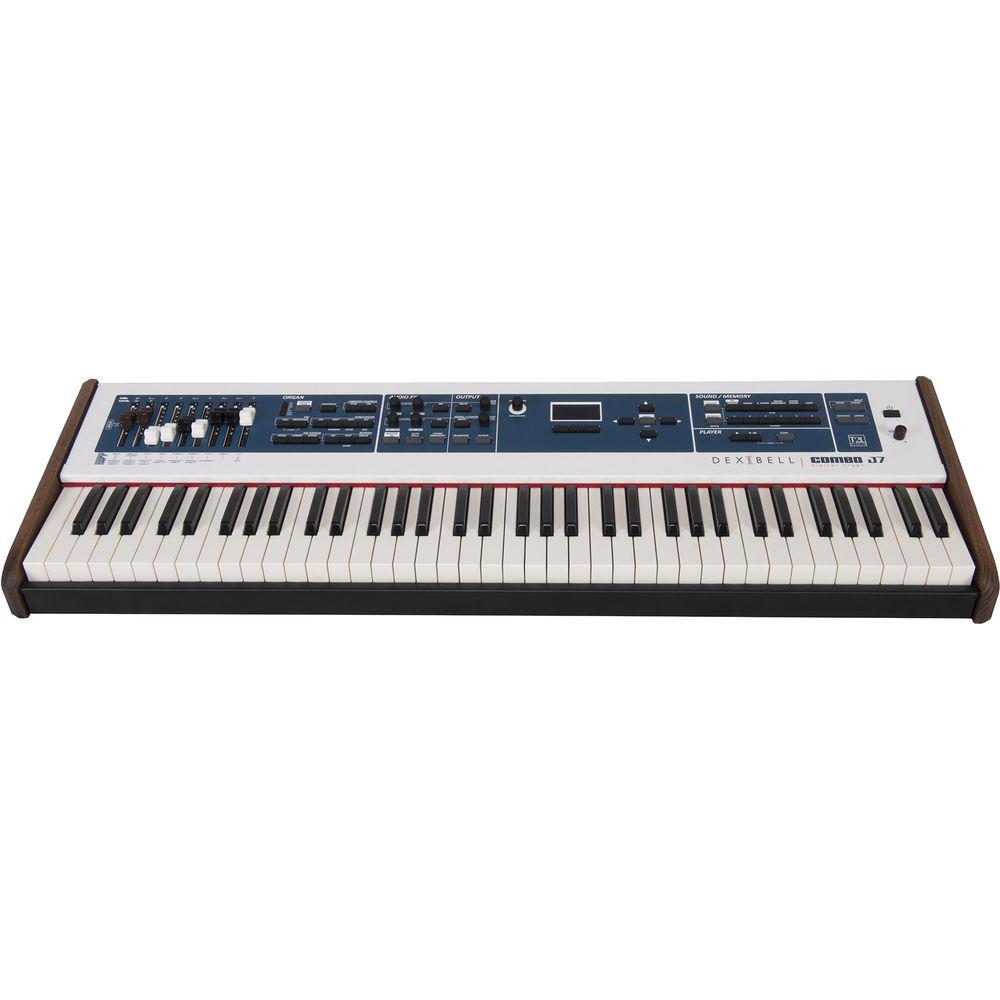

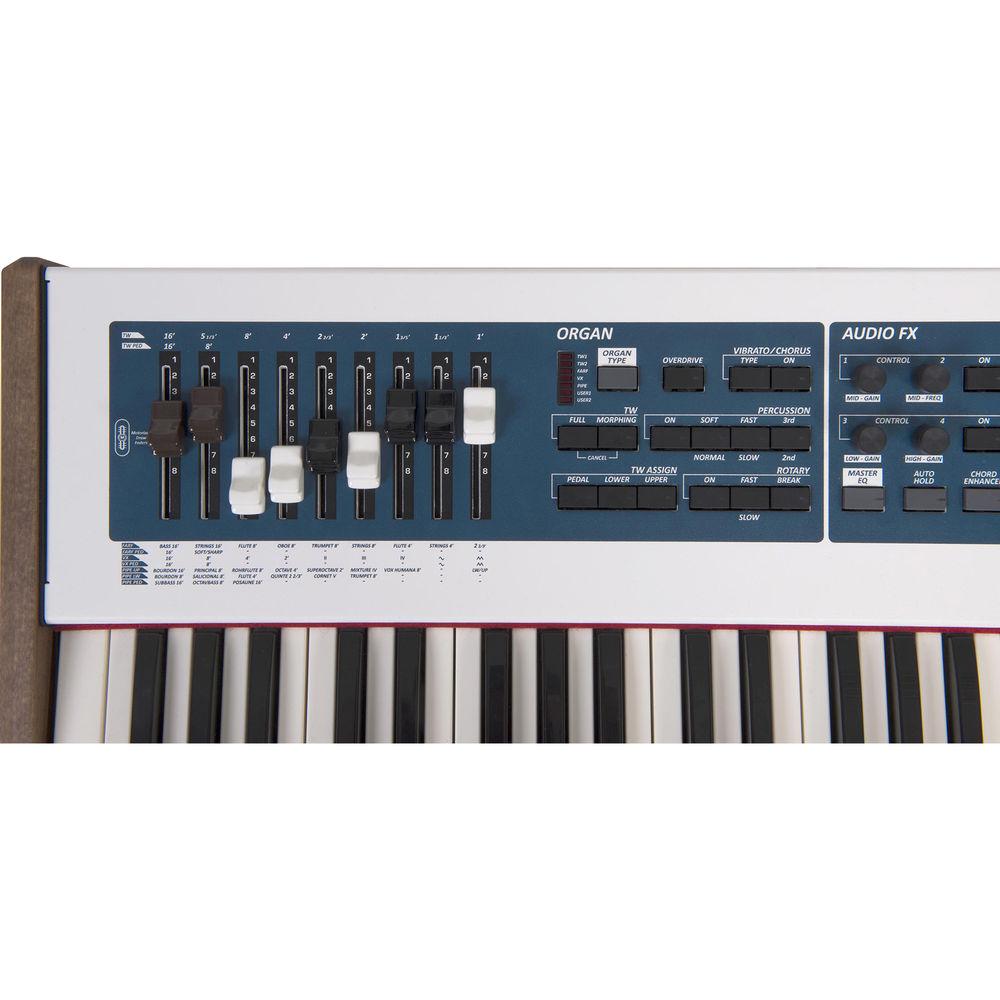

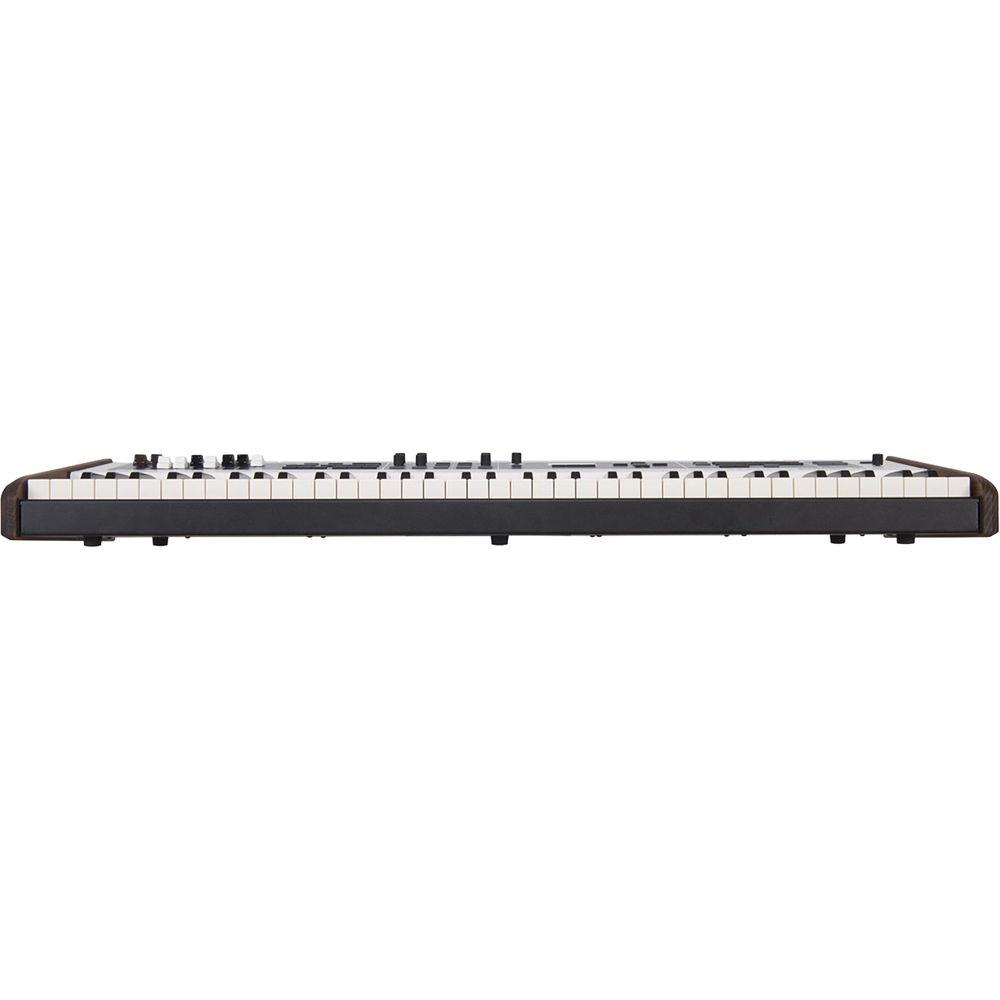

Product description The Dexibell COMBO J7 is a 73-key digital organ offering versatile instruments tones and uncompressed audio recording/playback for use in lessons, studio sessions, and live stage applications. With unlimited notes of polyphony, four simultaneous parts, and 73 waterfall-type keys incorporating dynamic sensitivity, the COMBO J7 is welcoming and easily playable for keyboardists, pianists, and organists. Nine motorized draw-faders provide realistic control and accurate recall of tone settings. The COMBO J7's memory bank features an array of sounds created with Dexibell's T2L sampling and modeling technology—over 100 presets using seven organ types, and 105 instrument tones such as acoustic and electric pianos, brass, pads, synths, strings, and bass are readily available.Enhance your sounds with the internal DSP including 24 types of reverb, delay, overdrive, rotary, EQ, and more. Jam along with songs from your mobile device through the 3.5mm stereo aux input or to the built-in Bluetooth receiver, or play WAV, AIFF, and MP3 files from an external USB flash drive. Record your rehearsals and performances in 32-bit / 48 kHz resolution to external USB memory, and reference them later via the internal song player. Stereo main and headphone outputs enable simple monitoring through speakers or headphones. The COMBO J7 includes an AC adapter and a music rest. - 73 waterfall-type keys with dynamic sensitivity, tonewheel and transistor organ sounds, and nine motorized draw-faders
- Utilizes Dexibell's T2L (True 2 Life) technology to deliver a combination of sampling and modeling algorithms with unlimited notes of polyphony, 24-bit / 48 kHz resolution, and up to 15 seconds of recorded WAV samples
- Sounds and effects transition smoothly during patch changes and memory recalls, and may be controlled via an expression pedal
- Complete set of sounds includes seven organ types (tonewheel 1, tonewheel 2, farfisa, vox, pipe, user 1, and user 2), and 105 instrument tones (acoustic and electric pianos, brass, pads, synths, bass, guitar, horns, and more)
- Supports downloadable SoundFont (.sf2) files
- Built-in Bluetooth receiver for wirelessly streaming audio from a mobile device
- 24 types of reverb and 17 types of effects
- Eight independent DSPs allow two effects per part (upper, coupled, lower, and pedal)
- Versatile master tuning including seven historical presets and fine adjustments of
|
Upload User Manual
Have you got an user manual for the Dexibell COMBO J7 73-Key Digital Organ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDexibell COMBO J7 Specs | Keyboard | 73 Waterfall-Type Keys with Dynamic Sensitivity | | Touch Sensitivity | 5 Types plus Fixed | | Polyphony | Unlimited (with 320 Oscillators) | | Multitimbral | No | | Synthesis Method | T2L (True 2 Life) Sampling and Modeling Technology | | Presets | Master Tuning: 7
Temperament: 9
Organ Types: 7
Organ Presets: > 100
Instrument Presets: 105 | | Sequencer | None | | Record and Playback | Record: 32-Bit / 48 kHz WAV via USB Memory
Playback: WAV, AIFF, and MP3 in All Formats and Resolutions | | User Memory | Organ Types: 2
Settings Memories: 36 Internal, Unlimited via External USB Memory
Temperament: 3 | | Effects | Reverb: 24 Types
Tremulant: 6 Types
Multi-Effects: Flanger, Phaser, Chorus, Vibrato, Tremolo, Rotary, Overdrive, 4-Band EQ
Master Equalizer: 3-Band EQ | | Master Tuning | 415.4 to 466.1 Hz (Adjustable in Increments of 0.1 Hz) plus Two Presets (440 Hz and 442 Hz) | | Controllers | 9 x Motorized Draw-Faders
4 x EQ/FX Encoders
2 x Part Level Encoders
1 x Data Entry / Song Level Encoder
1 x Master Volume Knob | | Sample Memory | 1.5 GB | | Expansion Slots | None | | Inputs | 1 x 1/8" / 3.5 mm Stereo Mini Jack | | Outputs | 2 x 1/4" / 6.3 mm Main Outputs
1 x 1/4" / 6.3 mm Headphone Output
1 x 1/8" / 3.5 mm Headphone Output | | 1/4" Pedal Functions | 1 x 1/4" / 6.3 mm Damper Pedal Input
1 x 1/4" / 6.3 mm Footswitch Input
1 x 1/4" / 6.3 mm Expression Pedal Input | | MIDI | 1 x DIN 5-Pin MIDI Input
1 x DIN 5-Pin MIDI Output
1 x DIN 5-Pin MIDI Thru | | USB | 1 x USB Type-A (to USB Memory)
1 x USB Type-B (to Computer) | | Bluetooth | Built-In Bluetooth Receiver | | Storage | Internal: Not Specified by Manufacturer
External: USB Memory (Available Separately) | | Display | 128 x 64 High-Contrast OLED | | Power Requirement | 24 VDC, 2.5 A via Supplied AC Adapter | | Power Consumption | Standby: < 0.2 W
Maximum: 15 W | | Dimensions (W x D x H) | 41.7 x 13.3 x 4.4" / 106.0 x 33.8 x 11.2 cm | | Weight | 22 lb / 10 kg (Excluding AC Adapter) | | System Requirements | Computer with Available USB Port |
