User Manual for Dexibell DX HF7 On-Ear Monitor Headphones Click to enlarge the picture
Contents of the user manual for the Dexibell DX HF7 On-Ear Monitor Headphones
- Product category: Professional Headphones Dexibell
- Brand: Dexibell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dexibell Professional Headphones
 |
User manual for the Dexibell DX HF7 On-Ear Monitor Headphones contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dexibell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dexibell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dexibell product will considerably shorten its lifespan!
|

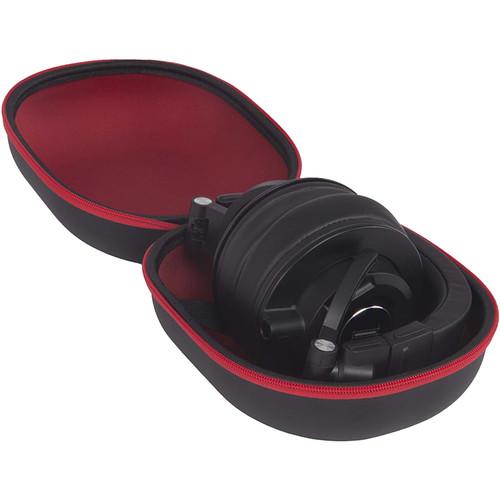

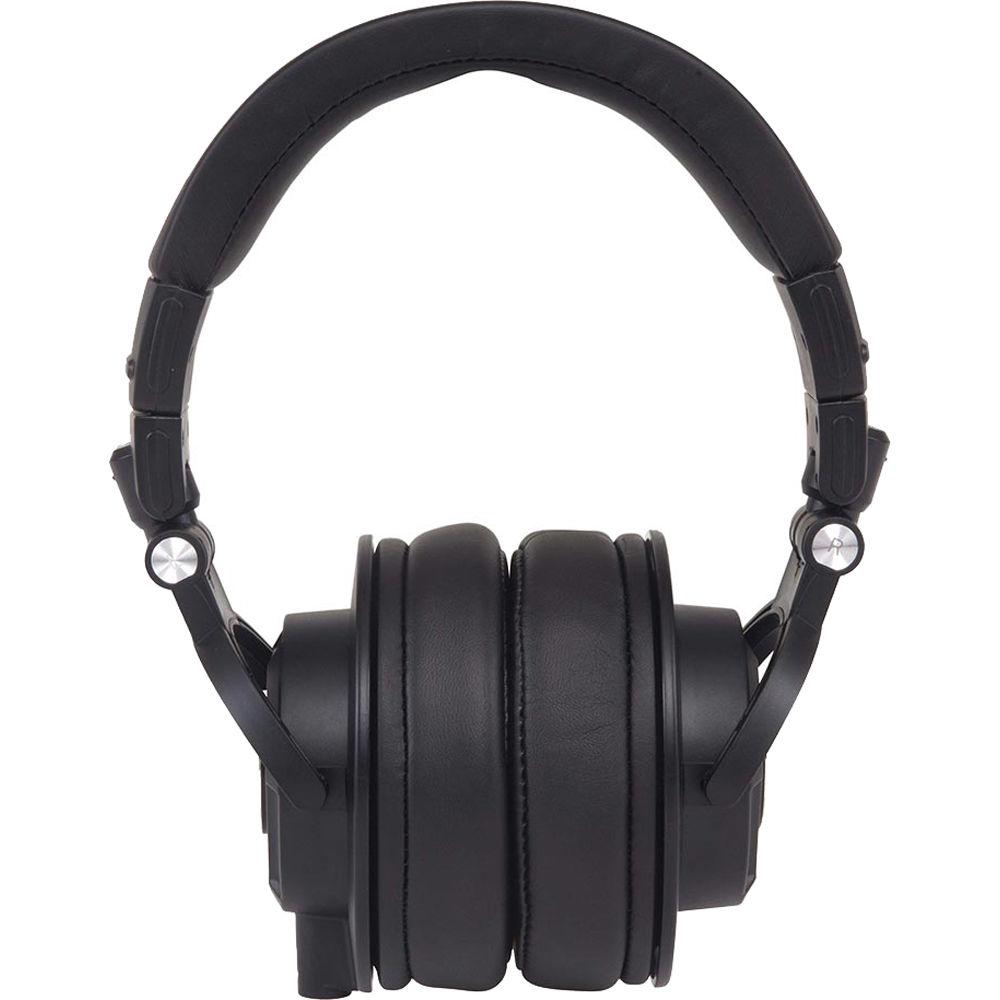

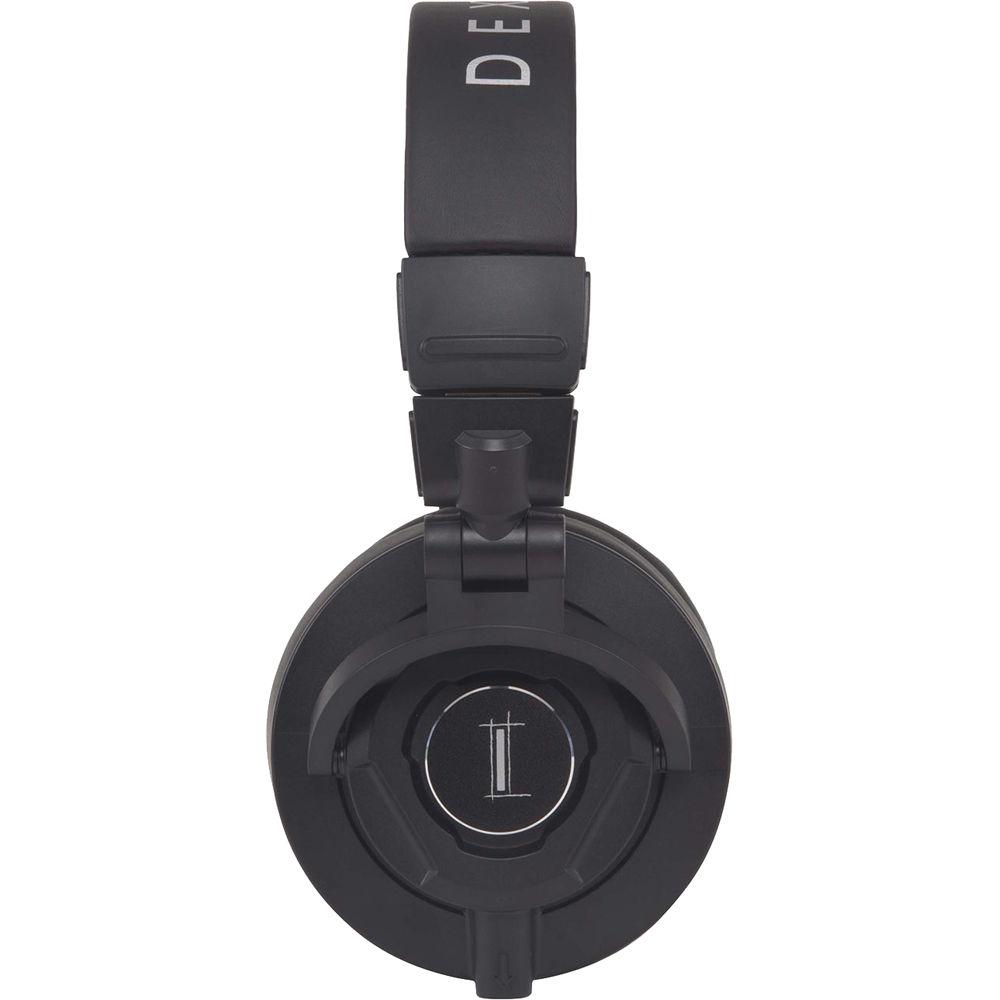

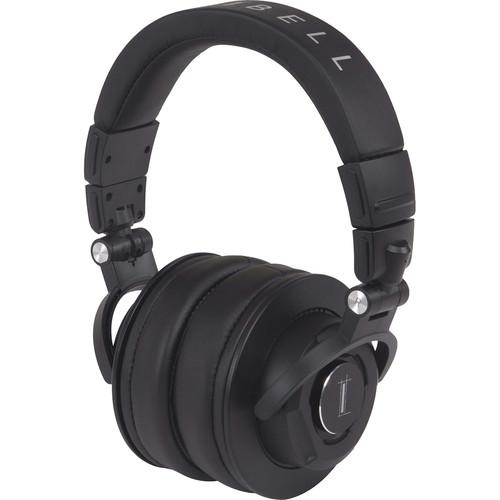

Product description The Dexibell DX HF7 are on-ear monitor headphones offering extended frequency reproduction for performing and recording musicians in studios and live stage applications. Their 45mm dynamic drivers yield a frequency response of 10 Hz to 26 kHz well suited for pianos, keyboards, and electronic percussion. The supra-aural, closed-back design provides passive isolation from ambient sound such as stage volume and bleed from other instruments. Thick earcup cushioning and a padded adjustable headband ensure comfortable wearing for lengthy rehearsals and studio sessions. The detachable single-sided cable design allows you to easily swap between the included 9.8' straight and coiled 3.5mm headphone cables. A gold-plated 1/4" adapter is supplied for connection to dedicated headphone amplifiers, audio interfaces, and mixers. The DX HF7 headphones are foldable for compact storage and transport in the included semi-rigid carrying case. - Closed-back design provides passive noise isolation
- 45mm dynamic drivers yield a wide frequency response optimized for reproduction of pianos and electronic percussion

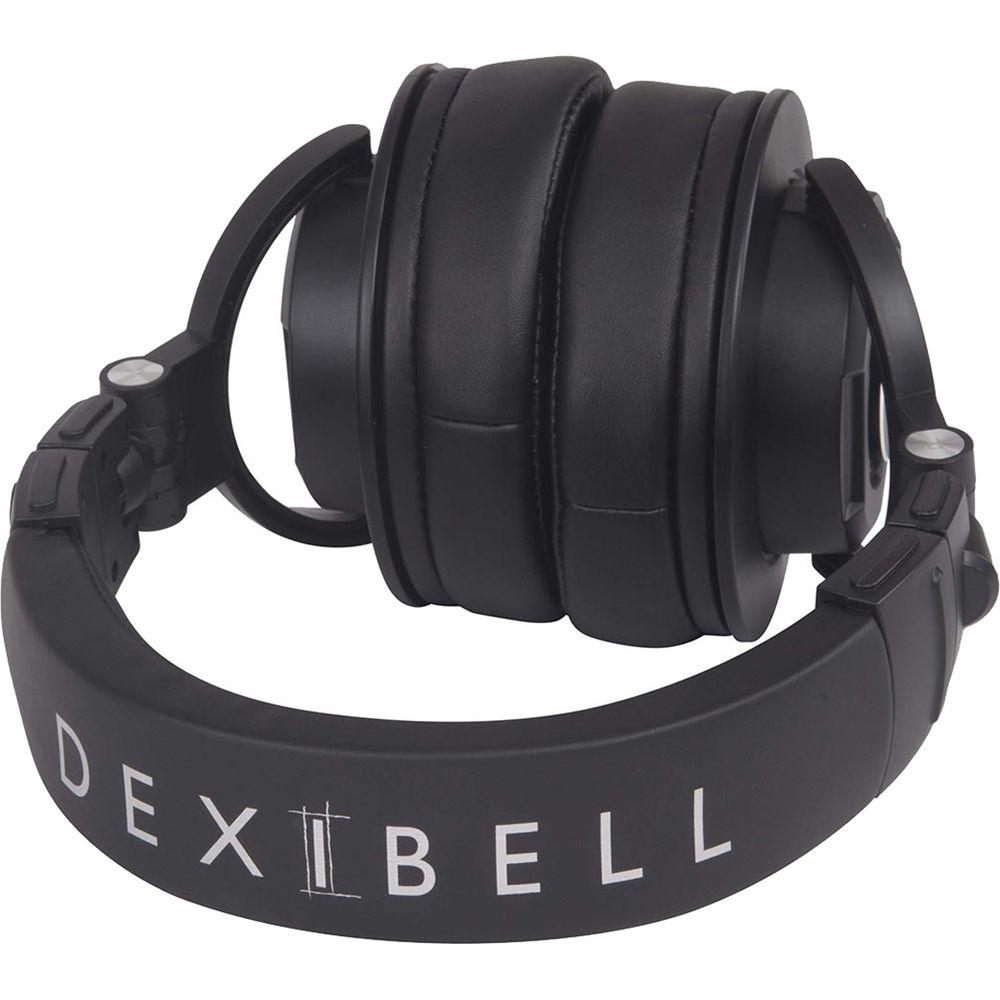

- Foldable for compact storage
- Thick earcup cushioning and padded headband for long-lasting comfort
- Detachable single-sided cable design

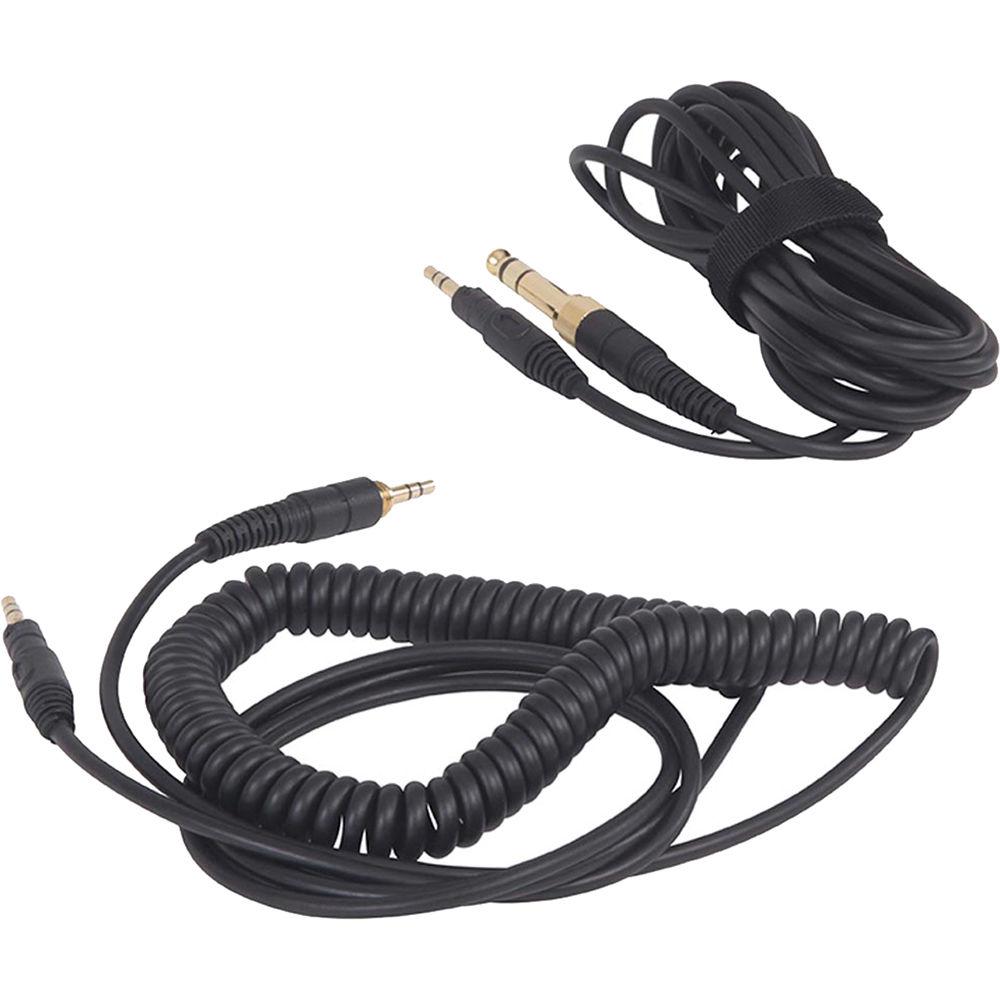

- Includes two 9.8' headphone cables—one coiled and one straight—terminated with 3.5mm TRS connectors
- Includes 1/4" TRS adapter and semi-rigid carrying case
- All connectors are gold-plated for enhanced conductivity

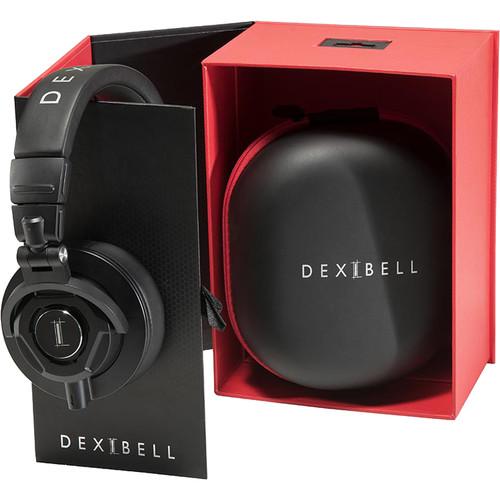

In the Box Dexibell DX HF7 On-Ear Monitor Headphones 9.8' Coiled 3.5mm Headphone Cable 9.8' Straight 3.5mm Headphone Cable 1/4" Adapter Carrying Case Limited 2-Year Warranty Extendable to 5 Years upon Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Dexibell DX HF7 On-Ear Monitor Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDexibell DX HF7 Specs | | | Driver Size | 1.77" / 45 mm | | Driver Type | Dynamic | | Design | On-Ear (Supra-aural) | | Earcup Style | Closed-Back | | | | Frequency Response | 10 Hz to 26 kHz | | Sensitivity | 98 dB | | Impedance | 40 Ohms | | Maximum Power Handling | 300 mW | | Active Noise Cancellation | No | | Foldable | Yes | | | | Audio Connector | 1/8" (3.5 mm) TRS Straight | | Connector Plating | Gold | | Adapter (Included) | 1/4" (6.3 mm) TRS | | Connector to Earpiece | 1 x 1/8" (3.5 mm) | | | | Design | Single-Sided | | Color | Black | | Detachable | Yes | | In-Line Remote/Microphone | No | | Cable Length | 9.84' / 3 m | | | | Dimensions (W x H x D) | 6.7 x 8.7 x 3.9" / 17.0 x 22.0 x 10.0 cm (Opened) | | Weight | 2.20 lb / 1 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
