User Manual for Dexibell VIVO H1 88-Key Digital Home Piano Click to enlarge the picture
Contents of the user manual for the Dexibell VIVO H1 88-Key Digital Home
- Product category: Digital Pianos Dexibell
- Brand: Dexibell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dexibell Digital Pianos
 |
User manual for the Dexibell VIVO H1 88-Key Digital Home contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dexibell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dexibell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dexibell product will considerably shorten its lifespan!
|

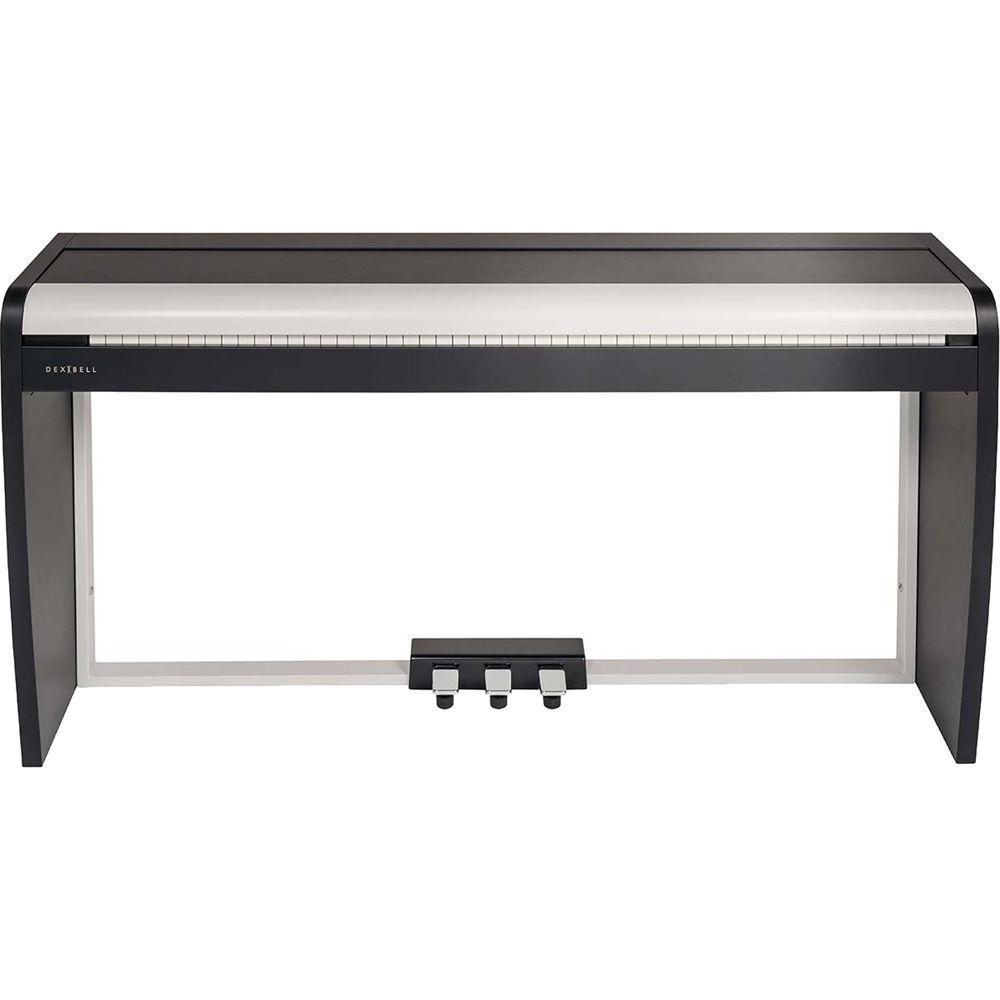

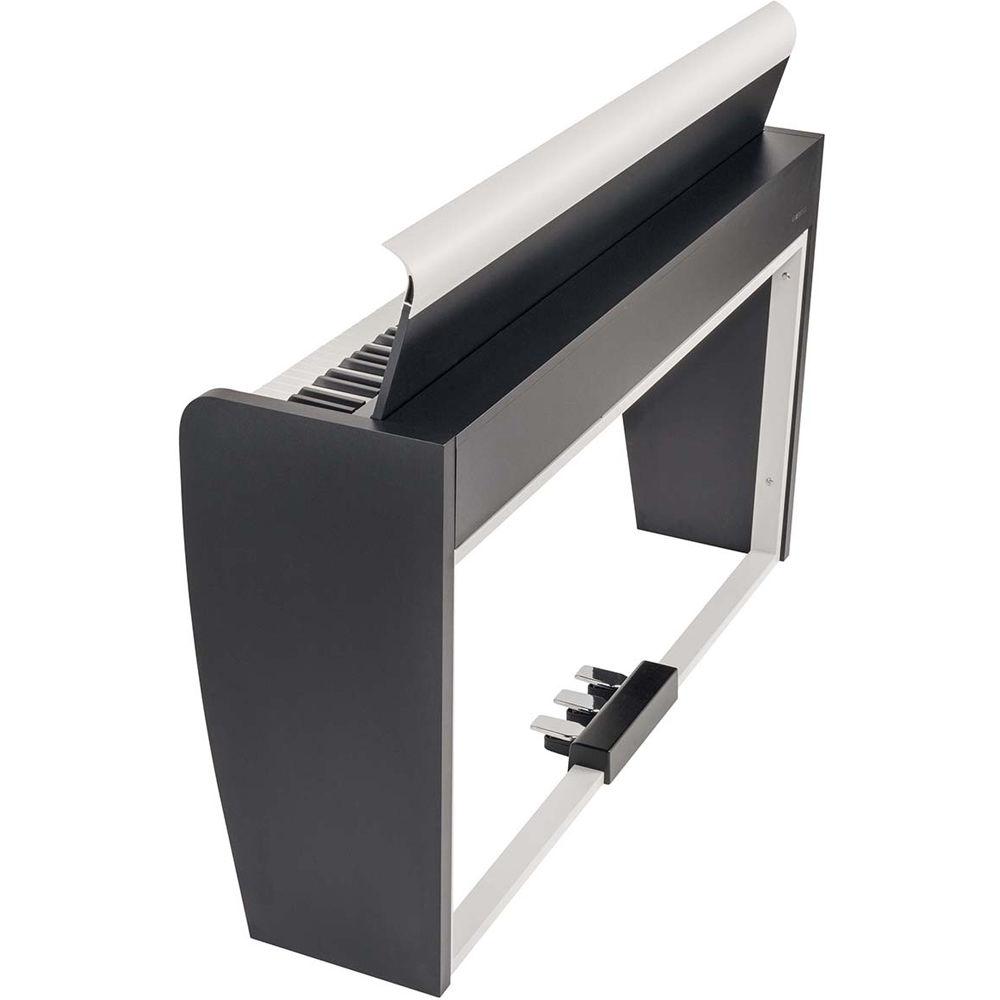

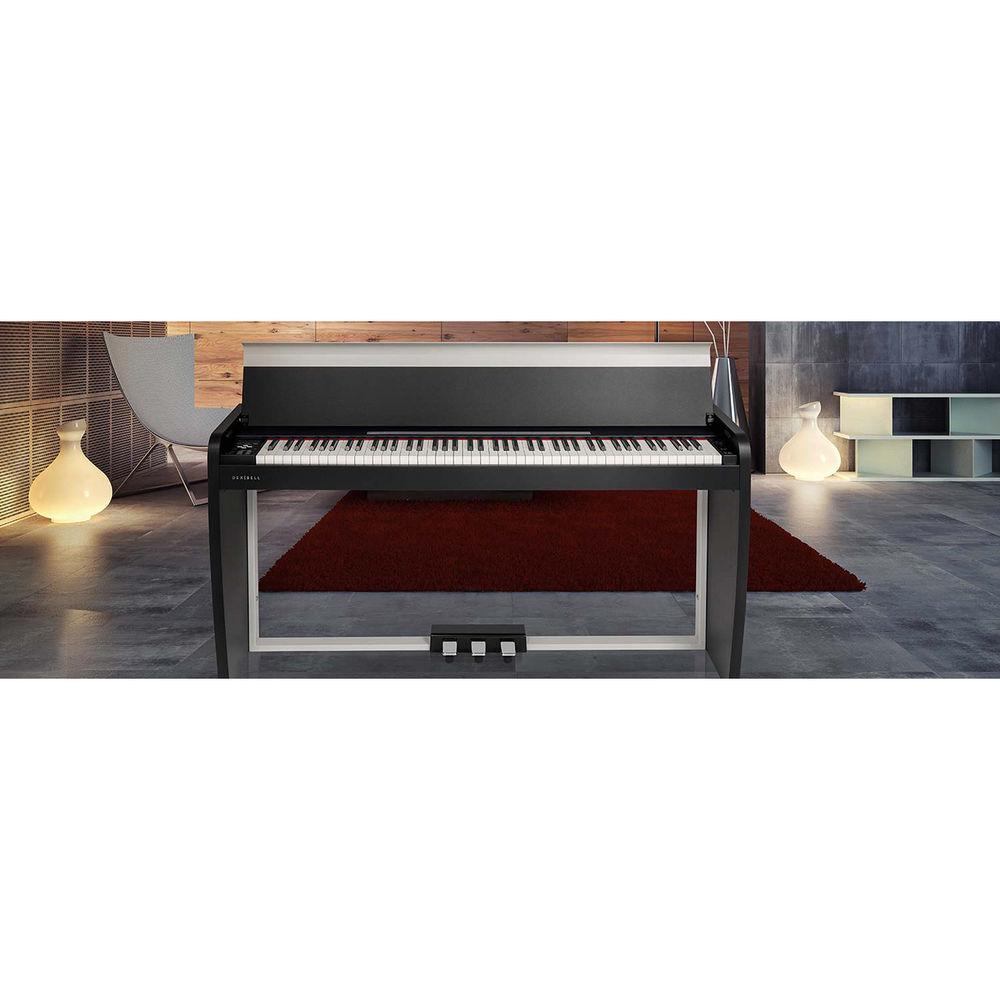

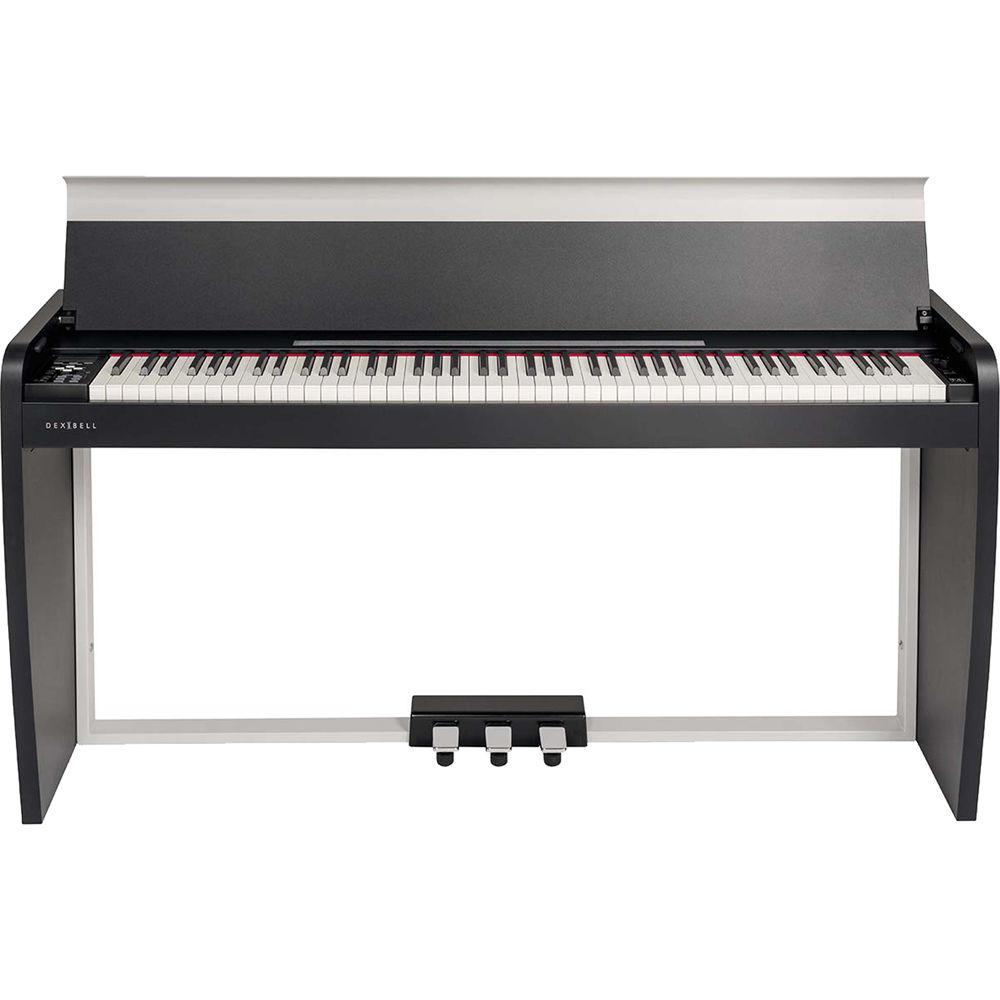

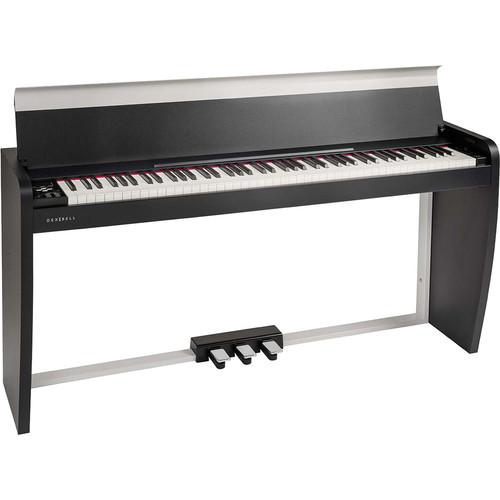

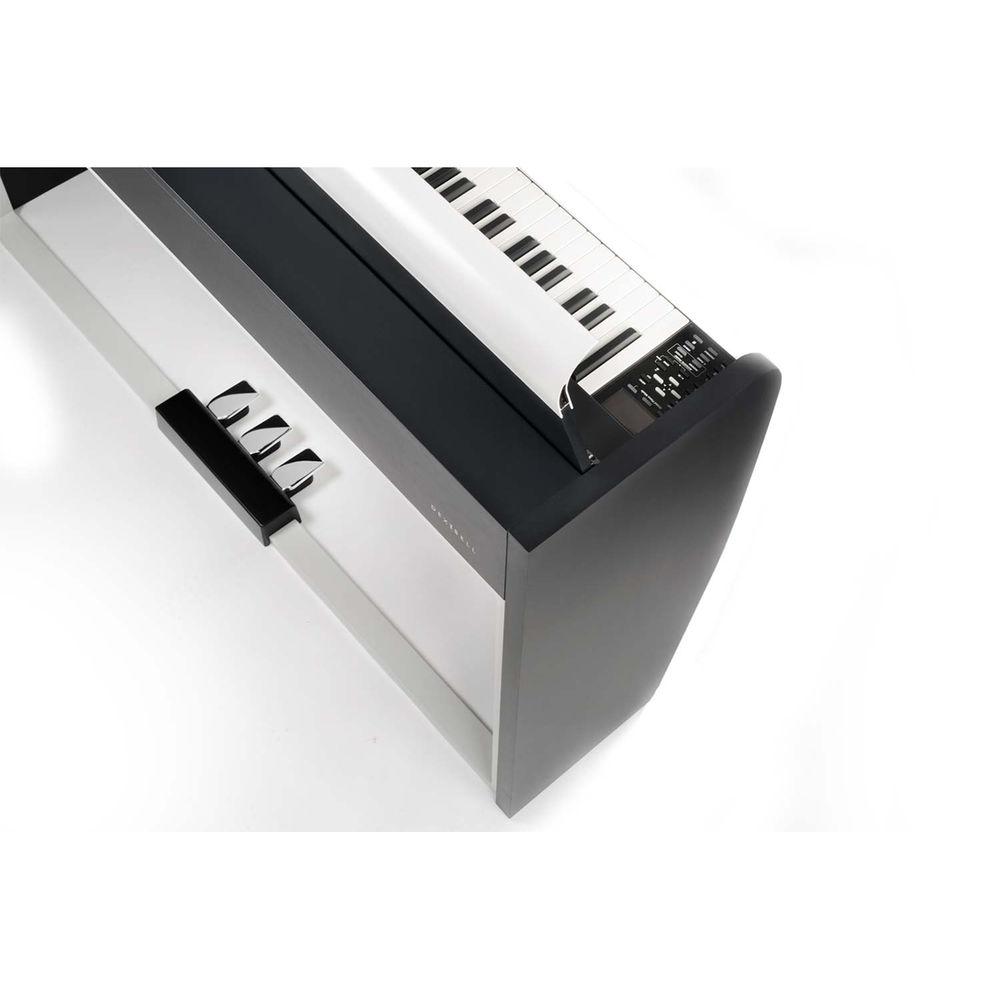

Product description The matte black Dexibell VIVO H1 is an 88-key digital home piano offering versatile tones and uncompressed audio recording/playback for use in lessons, studio sessions, and live stage applications. With unlimited notes of polyphony and 88 weighted, hammer-action keys, the VIVO H1 is welcoming and easily playable for pianists and keyboardists. Its 1.5GB memory bank features a useful array of sounds created with Dexibell's T2L sampling and modeling technology—acoustic and electric pianos, organs, strings, synths, and more are readily available.Enhance your sounds with the built-in DSP including 24 types of reverb, 17 types of effects, and a 3-band master EQ. Practice to the built-in metronome, jam along with songs from your mobile device via the 3.5mm stereo aux input, or play WAV, AIFF, and MP3 files from the internal memory or an external USB flash drive. Record your rehearsals and performances in 32-bit / 48 kHz resolution to external USB memory, and reference them later via the internal song player. Listen to the integrated stereo speaker system, or utilize the stereo main and headphone outputs to monitor through headphones or external speakers.The foot controller unit provides damper, soft, and sostenuto pedals; two of the three pedals may be assigned to other parameters. The VIVO H1 is powered via the included AC adapter. - 88 weighted, hammer-action, triple-contact keys
- Utilizes Dexibell's T2L (True 2 Life) technology to deliver a combination of sampling and modeling algorithms with unlimited notes of polyphony, 24-bit / 48 kHz playback resolution, and up to 15 seconds of recorded WAV samples
- 1.5GB internal sound library with over 80 sounds including acoustic and electric piano, organ, strings, brass, synth, guitar, bass, vibraphone, marimba, and more
- Supports downloadable SoundFont (.sf2) files
- Sounds and effects transition smoothly during patch changes and memory recalls
- Integrated DSP includes 24 reverb types, 17 effect types, and a 3-band master equalizer
- Built-in metronome with tap tempo and 13 standard tempo presets
- Save WAV, AIFF, or MP3 files to the internal memory or an external flash drive for playback via the internal song player
- Record performances as 32-bit / 48 kHz WAV files to external USB memory (available separately)
- Supports real-time control of audio patterns through the downloadable X-MURE iOS app
- Integrated stereo system with 35W per side and two 3.5" speakers
- DSP on amplifier includes dynamic EQ and 3-band compression
- 1/4" and 3.5mm stereo headphone outputs
- USB ports for connection of external flash memory and a host computer

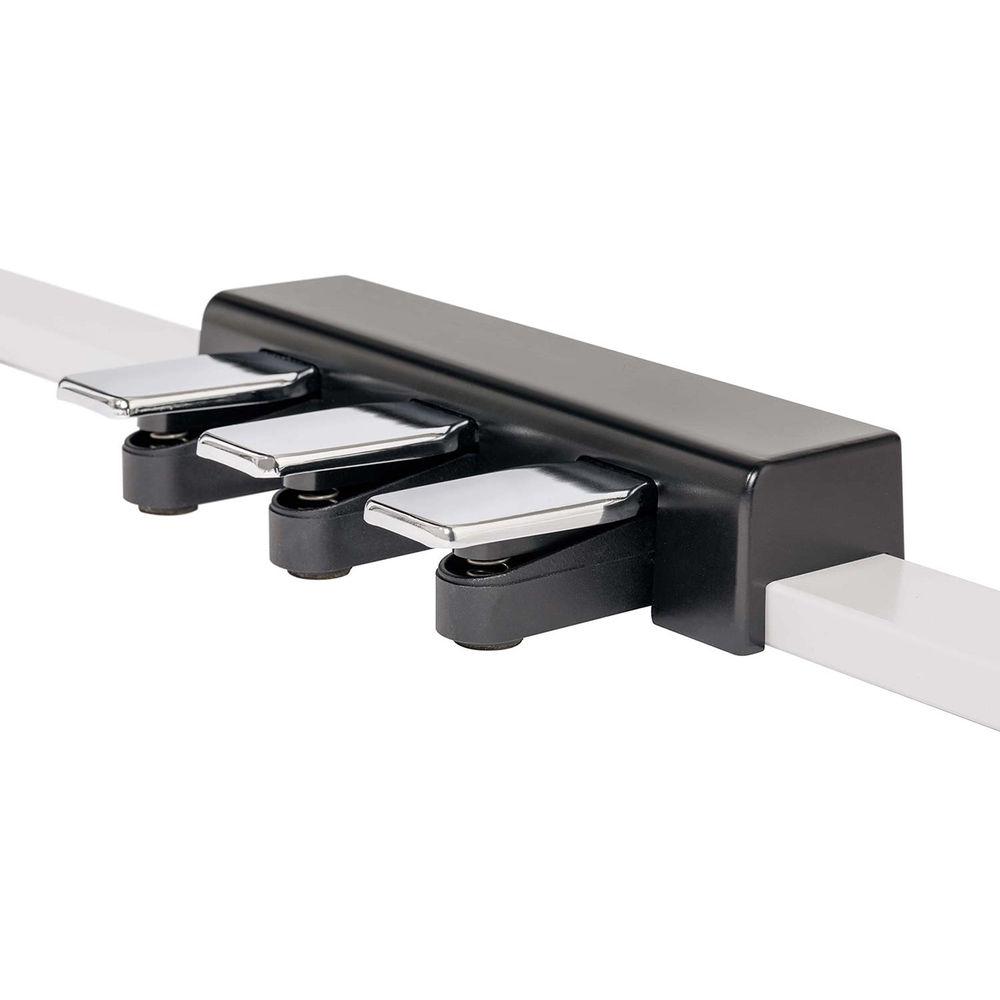

- 7-pin socket allows connection of the VIVO H1's 3-pedal foot controller
- 128 x 64 high-contrast OLED screen
- Powered via included AC adapter
In the Box Dexibell VIVO H1 88-Key Digital Home Piano (Matte Black) AC Adapter with Power Cable Limited 2-Year Warranty Extendable to 5 Years with Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Dexibell VIVO H1 88-Key Digital Home Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDexibell VIVO H1 Specs | | | Keyboard | 88 Piano Keys, Hammer Action | | Touch Response | 7 Levels of Sensitivity, Plus Fixed | | Expression Controls | None | | | | Number of Sound Presets | 80 x Sounds | | Number of Song Presets | None | | Effects | Chorus, Delay, Drive, EQ, Flanger, Phaser, Reverb, Rotary, Tremolo, Vibrato | | Maximum Polyphony | Unlimited | | Performance Functions | Duet Mode, Octave Shift, Split/Layer, Temperament Adjustment, Transpose, Tuning Adjustment | | | | Audio Recording Formats | WAV, 48 kHz / 32-Bit | | | | I/O | 1 x 1/8" (3.5 mm) TRS Stereo Input
2 x 1/4" (6.3 mm) TS Mono Output
1 x 1/4" (6.3 mm) TRS Headphone Output
1 x 1/8" (3.5 mm) TRS Headphone Output | | Pedal Support | 1 x 7-Pin DIN Damper/Soft/Sustain | | Data Port | 1 x USB Type-A (External Memory)
1 x USB Type-B (Computer Transfer, MIDI) | | Bluetooth | No | | OS Compatibility | macOS
Windows | | | | Amplifiers | 2 x 35 W | | Round Speakers | 2 x 3.5" / 8.89 cm | | Maximum Sound Pressure Level (SPL) | 108.1 dB | | | | AC/DC Power Adapter | 24 VDC at 2.5 A (Included) | | Power Consumption | 32 W | | | | Display | Monochrome OLED | | Included Accessories | None | | Dimensions | 55.9 x 14.2 x 31.2" / 142.0 x 36.0 x 79.3 cm (with Lid Closed)
55.9 x 14.2 x 39.7" / 142.0 x 36.0 x 100.9 cm (with Lid Open) | | Weight | 99.4 lb / 45.1 kg (without AC Adapter) |
