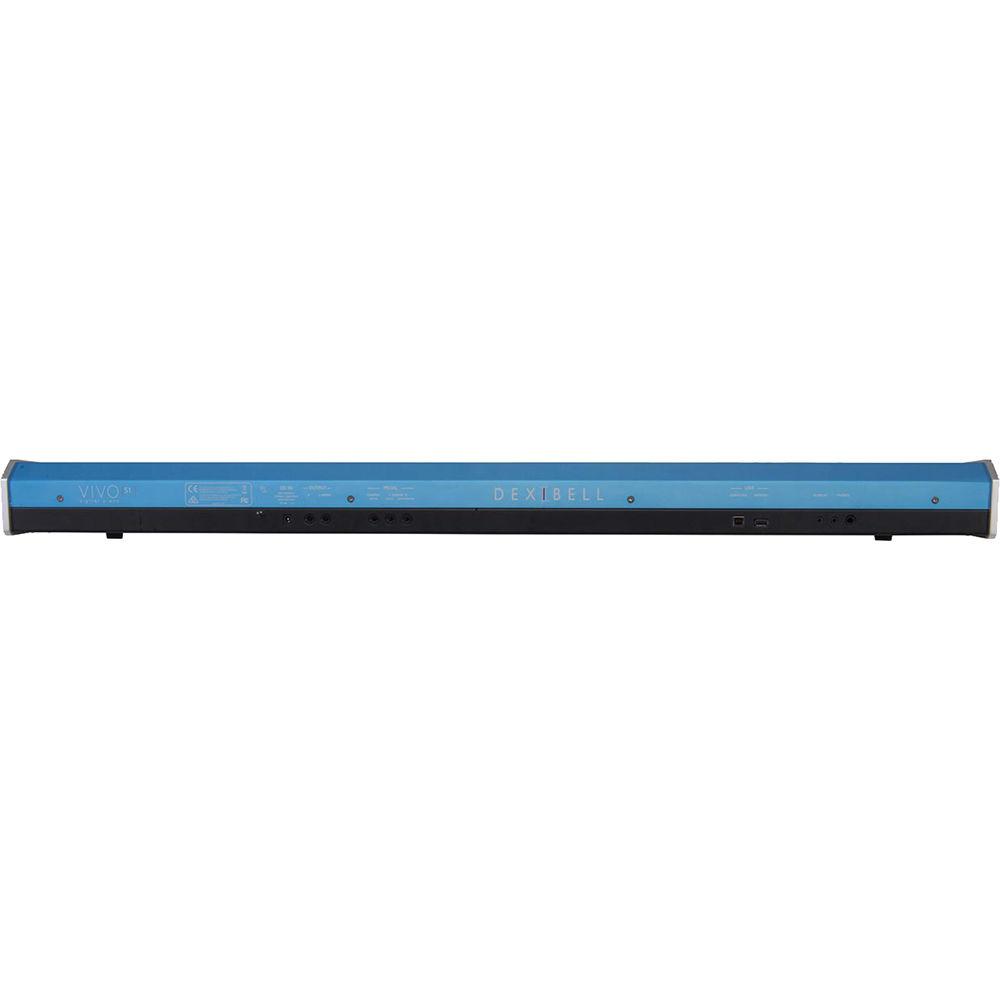

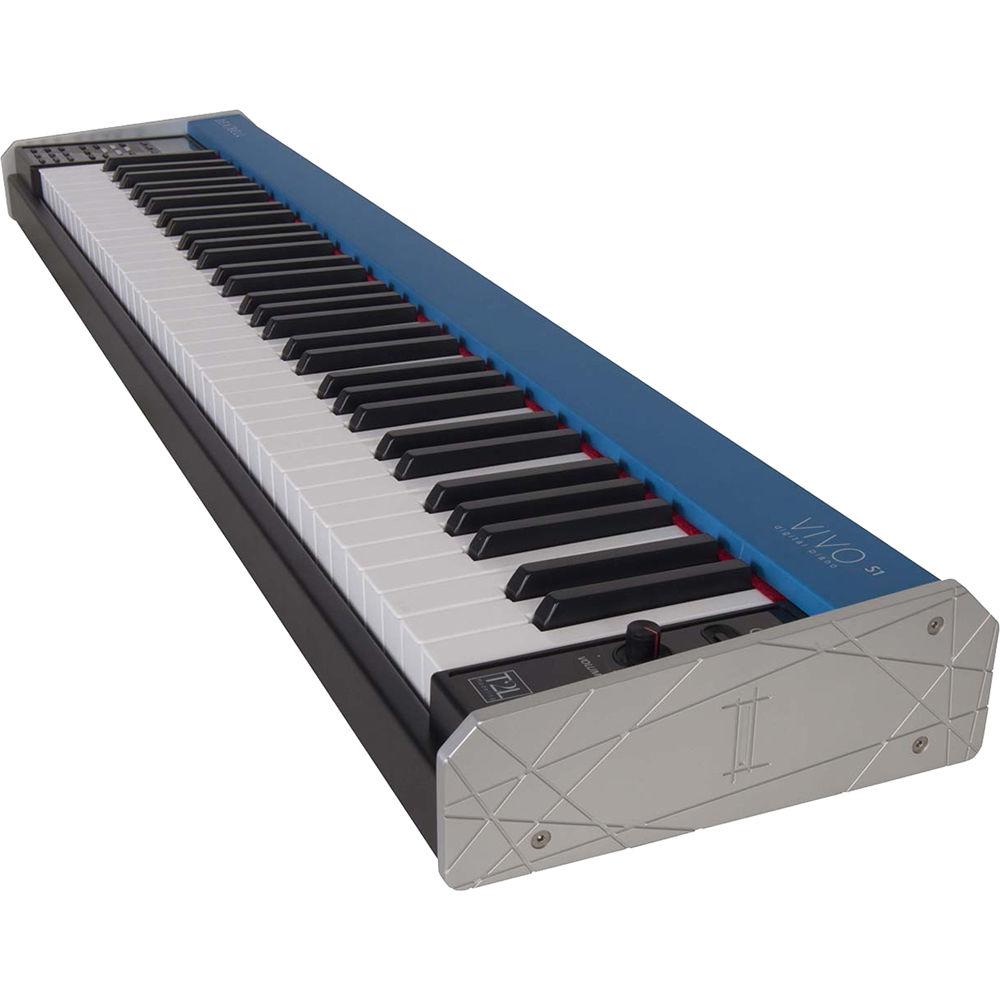

User Manual for Dexibell VIVO S1 68-Key Digital Stage Piano Click to enlarge the picture
Contents of the user manual for the Dexibell VIVO S1 68-Key Digital Stage
- Product category: Digital Pianos Dexibell
- Brand: Dexibell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dexibell Digital Pianos
 |
User manual for the Dexibell VIVO S1 68-Key Digital Stage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dexibell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dexibell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dexibell product will considerably shorten its lifespan!
|

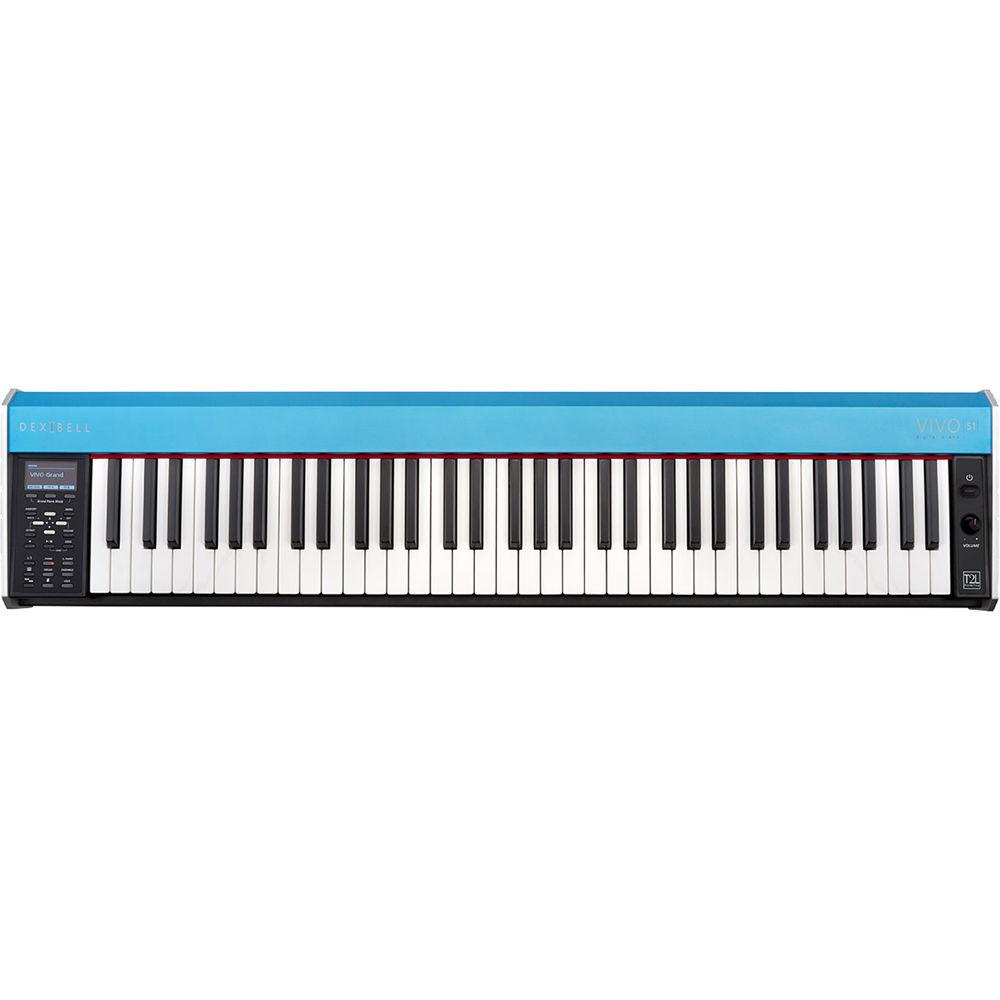

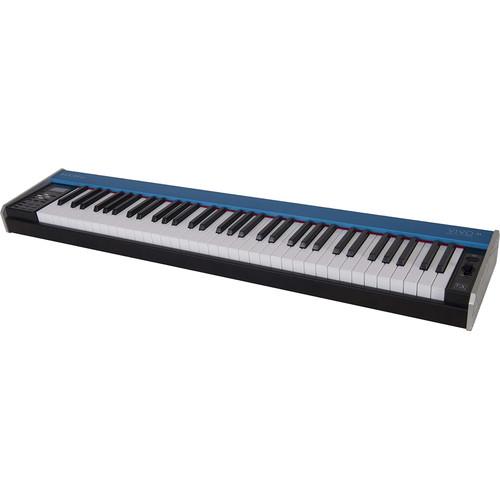

Product description The Dexibell VIVO S1 is a 68-key digital stage piano offering versatile tones and uncompressed audio recording/playback for use in lessons, studio sessions, and live stage applications. With unlimited notes of polyphony and 68 light-weighted keys starting at the same low "A" as an 88-key piano, the VIVO S1 is welcoming and easily playable for pianists and keyboardists. Its 1.5GB memory bank features 80 sounds created with Dexibell's T2L sampling and modeling technology—pianos, strings, synths, and more are readily available.Enhance your sounds with the built-in DSP including 24 types of reverb, 17 types of effects, and a 3-band master EQ. Jam along with songs from your mobile device via the 3.5mm stereo aux input, or play WAV, AIFF, and MP3 files from the internal memory or an external USB flash drive. Record your rehearsals and performances in 32-bit / 48 kHz resolution to external USB memory, and reference them later via the internal song player. Stereo main and headphone outputs enable simple monitoring through speakers or headphones.Connect damper, footswitch, and expression pedals to the VIVO S1's 1/4" pedal inputs, or use the virtual damper function when no pedals are present. Power the VIVO S1 with the included AC adapter or eight AA NiMH batteries (available separately). - Lightweight aluminum body is easily transported between gigs
- 68 light-weighted keys with same starting note as 88-key pianos
- Utilizes Dexibell's T2L (True 2 Life) technology to deliver a combination of sampling and modeling algorithms with unlimited notes of polyphony, 24-bit / 48 kHz playback resolution, and up to 15 seconds of recorded WAV samples
- 1.5GB internal sound library with 80 tones including piano, organ, strings, brass, wind, synth, guitar, bass, percussion, and more
- Supports downloadable SoundFont (.sf2) files
- Sounds and effects transition smoothly during patch changes and memory recalls
- Virtual damper function works without a physical damper pedal
- Integrated DSP includes 24 reverb types, 17 effect types, and a 3-band master equalizer
- Save WAV, AIFF, or MP3 files to the internal memory or an external flash drive for playback via the internal song player
- Record performances as 32-bit / 48 kHz WAV files to external USB memory (available separately)
- Supports real-time control of audio patterns through the downloadable X-MURE iOS app
- 1/4" and 3.5mm stereo headphone outputs
- 1/4" inputs for damper pedal and two assignable pedal functions
- 128 x 64 high-contrast OLED display
- Powered via included AC adapter or eight AA NiMH batteries (available separately)
In the Box Dexibell VIVO S1 68-Key Digital Stage Piano AC Adapter Limited 2-Year Warranty Extendable to 5 Years with Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Dexibell VIVO S1 68-Key Digital Stage Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDexibell VIVO S1 Specs | | | Keyboard | 68 Full-Size Keys, Semi-Weighted Action | | Touch Response | 7 Levels of Sensitivity, Plus Fixed | | Expression Controls | None | | | | Number of Sound Presets | 80 x Sounds | | Number of Song Presets | None | | Effects | Chorus, Delay, Drive, EQ, Flanger, Phaser, Reverb, Rotary, Tremolo | | Maximum Polyphony | Unlimited | | Performance Functions | Octave Shift, Split/Layer, Temperament Adjustment, Transpose, Tuning Adjustment | | | | Audio Recording Formats | WAV, 48 kHz / 32-Bit | | | | I/O | 1 x 1/8" (3.5 mm) TRS Stereo Input
2 x 1/4" (6.3 mm) TS Mono Output
1 x 1/4" (6.3 mm) TRS Headphone Output
1 x 1/8" (3.5 mm) TRS Headphone Output | | Pedal Support | 1 x 1/4" TS Damper
1 x 1/4" TS Footswitch
1 x 1/4" TS Expression | | Data Port | 1 x USB Type-A (External Memory)
1 x USB Type-B (Computer Transfer, MIDI) | | Bluetooth | No | | OS Compatibility | macOS
Windows | | | | AC/DC Power Adapter | 12 VDC at 2 A (Included) | | Power Consumption | <9 W | | Battery Type | 8 x AA | | Expected Battery Life | 4 Hours (NiMH) | | | | Display | Monochrome OLED | | Included Accessories | None | | Dimensions | 43.0 x 9.5 x 3.7" / 1093.0 x 242.0 x 94.0 mm (Keyboard Only) | | Weight | 19.4 lb / 8.8 kg (without AC Adapter) |
