User Manual for Dexibell VIVO S9 88-Key Digital Stage Piano Click to enlarge the picture
Contents of the user manual for the Dexibell VIVO S9 88-Key Digital Stage
- Product category: Digital Pianos Dexibell
- Brand: Dexibell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dexibell Digital Pianos
 |
User manual for the Dexibell VIVO S9 88-Key Digital Stage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dexibell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dexibell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dexibell product will considerably shorten its lifespan!
|

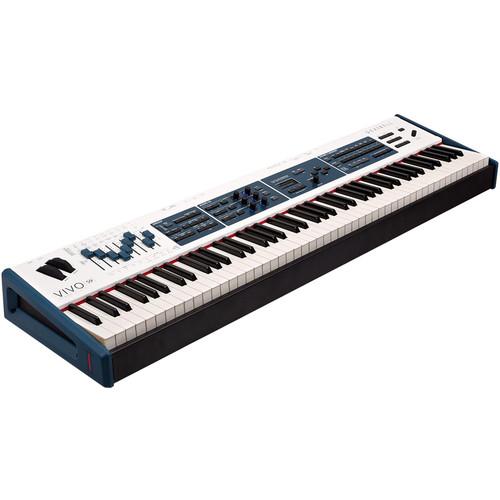

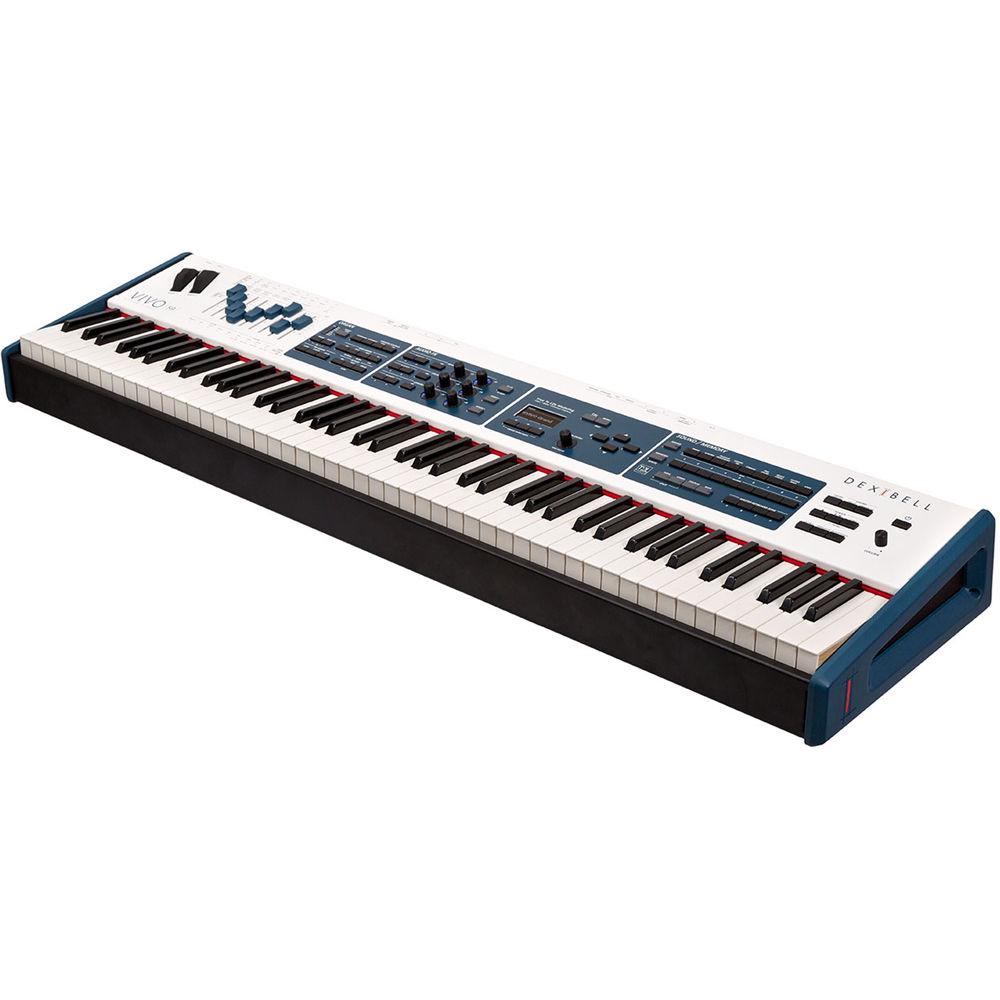

Product description The Dexibell VIVO S9 is an 88-key digital stage piano offering versatile tones and uncompressed audio recording/playback for use in lessons, studio sessions, and live stage applications. With unlimited notes of polyphony, 88 hammer-action keys with aftertouch, and nine motorized draw-faders, the VIVO S9 is welcoming and easily playable for pianists, organists, and keyboardists. Its 1.5GB memory bank features a useful array of sounds created with Dexibell's T2L sampling and modeling technology—acoustic and electric pianos, organs, strings, synths, and more are readily available.Enhance your sounds with the built-in DSP including 24 types of reverb, 17 types of effects, and a 3-band master EQ. Jam along with songs from your mobile device via the 3.5mm stereo aux input, or play WAV, AIFF, and MP3 files from the internal memory or an external USB flash drive. Record your rehearsals and performances in 32-bit / 48 kHz resolution to external USB memory, and reference them later via the internal song player. Stereo XLR and 1/4" main outputs, and 3.5mm and 1/4" headphone outputs enable simple monitoring through speakers or headphones.Connect damper, footswitch, and expression pedals to the VIVO S9's 1/4" pedal inputs. The VIVO S9 includes one damper pedal, a music rest, and the required power adapter. - 88 hammer-action keys with wood/plastic hybrid structure, three contacts, aftertouch, and factory note-by-note calibration
- Nine motorized draw-faders for tone wheels, mixer, EQ, or master keyboard control
- Utilizes Dexibell's T2L (True 2 Life) technology to deliver a combination of sampling and modeling algorithms with unlimited notes of polyphony, 24-bit / 48 kHz playback resolution, and up to 15 seconds of recorded WAV samples
- 1.5GB internal sound library with over 100 organ presets and 85 sounds including acoustic and electric piano, organ, strings, brass, synth, guitar, bass, vibraphone, marimba, and more
- Supports downloadable SoundFont (.sf2) files
- Sounds and effects transition smoothly during patch changes and memory recalls
- Integrated DSP includes 24 reverb types, 17 effect types, and a 3-band master equalizer
- Save WAV, AIFF, or MP3 files to the internal memory or an external flash drive for playback via the internal song player
- Record performances as 32-bit / 48 kHz WAV files to external USB memory (available separately)
- Supports real-time control of audio patterns through the downloadable X-MURE iOS app

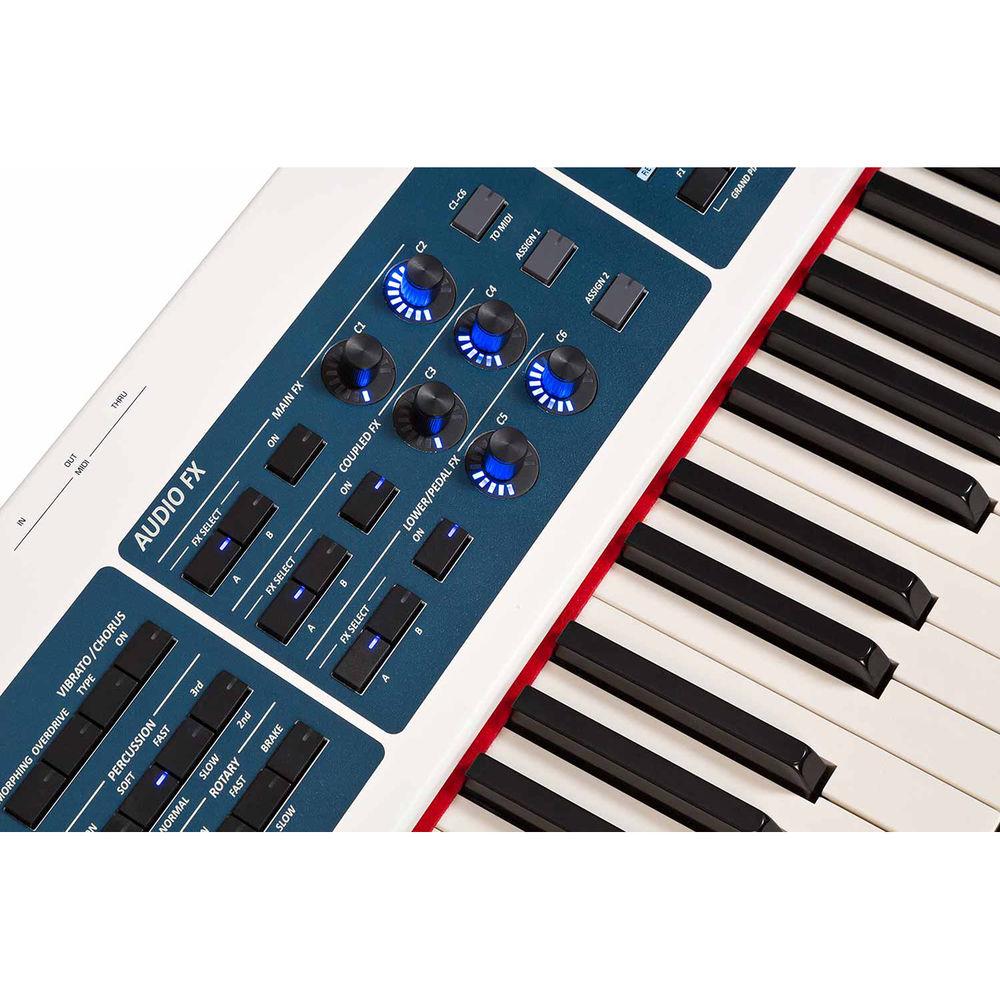

- Six FX encoders with LED meters
- Built-in Bluetooth receiver supports wireless streaming of audio from a mobile device or computer
- 1/4" and 3.5mm stereo headphone outputs
- Stereo XLR and 1/4" main outputs
- MIDI 5-pin input/output/thru ports
- 1/4" inputs for damper pedal, footswitch, and two assignable pedal functions
- 128 x 64 high-contrast OLED display
- Powered via included AC adapter

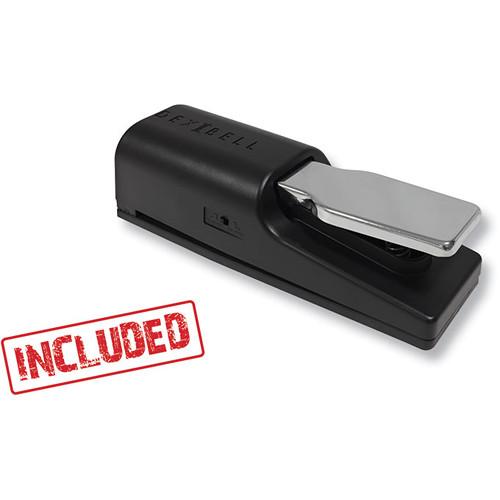

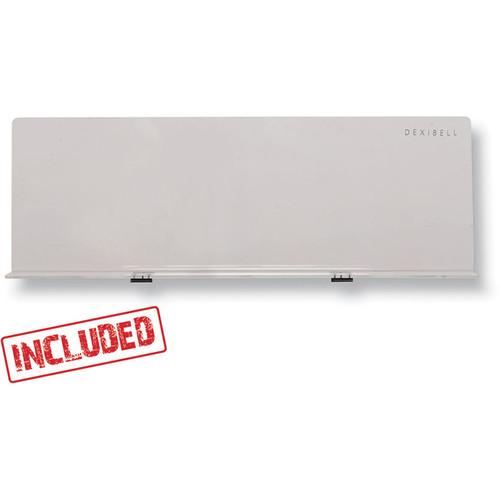

In the Box Dexibell VIVO S9 88-Key Digital Stage Piano AC Adapter Music Rest DX CP1 Keyboard Continuous-Style Sustain Pedal with Mode Switch Limited 2-Year Warranty Extendable to 5 Years upon Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Dexibell VIVO S9 88-Key Digital Stage Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDexibell VIVO S9 Specs | | | Keyboard | 88 Piano Keys, Hammer Action with Aftertouch | | Touch Response | 7 Levels of Sensitivity, Plus Fixed | | Expression Controls | 1 x Pitch Bend
1 x Modulation
9 x Drawbars | | | | Number of Sound Presets | 185 x Sounds | | Number of Song Presets | None | | Effects | Chorus, Compressor, Delay, Drive, EQ, Flanger, Phaser, Reverb, Rotary, Tremolo, Vibrato, Wah-Wah | | Maximum Polyphony | Unlimited | | Performance Functions | Octave Shift, Split/Layer, Temperament Adjustment, Transpose, Tuning Adjustment | | | | Audio Recording Formats | WAV, 48 kHz / 32-Bit | | | | I/O | 1 x 1/8" (3.5 mm) TRS Stereo Input
2 x 3-Pin XLR Mono Output
2 x 1/4" (6.3 mm) TS Mono Output
1 x 1/4" (6.3 mm) TRS Headphone Output
1 x 1/8" (3.5 mm) TRS Headphone Output
1 x 5-Pin MIDI Input
1 x 5-Pin MIDI Output
1 x 5-Pin MIDI Thru | | Pedal Support | 1 x 1/4" TS Damper
1 x 1/4" TS Footswitch
2 x 1/4" TS Expression | | Data Port | 1 x USB Type-A (External Memory)
1 x USB Type-B (Computer Transfer) | | Bluetooth | Yes (Audio) | | OS Compatibility | macOS
Windows | | | | AC/DC Power Adapter | 24 VDC at 2.5 A (Included) | | Power Consumption | 20 W | | | | Display | Monochrome OLED | | Included Accessories | Damper Pedal, Music Rest | | Dimensions | 50.0 x 13.9 x 5.1" / 127.0 x 35.4 x 13.0 cm (Keyboard Only) | | Weight | 44.1 lb / 20.0 kg (without AC Adapter) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
