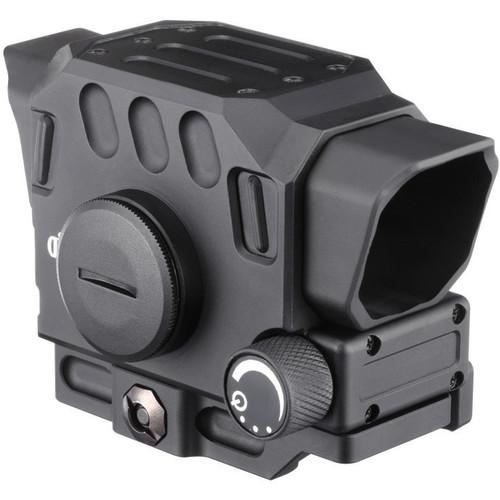

User Manual for DI Optical 1x28 DCL30C Prismatic Red Dot Sight Click to enlarge the picture
Contents of the user manual for the DI Optical 1x28 DCL30C Prismatic Red
- Product category: Red Dot/Holographic Sights DI Optical
- Brand: DI Optical
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DI Optical Red Dot/Holographic Sights
|
User manual for the DI Optical 1x28 DCL30C Prismatic Red contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DI Optical product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DI Optical user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DI Optical product will considerably shorten its lifespan!
|
Product description Designed to thrive under the harshest conditions and use, the DI Optical 1x28 DCL30C Prismatic Red Dot Sight features a 2 MOA center aiming dot with a larger 65 MOA diameter circle around it. This reticle configuration makes it ideal for close quarter work for fast target acquisition and tracking—regardless of whether that target is large or small. Eleven brightness levels enable you to see the reticle in all light conditions, including three levels that are compatible with night vision devices (NVDs). The 1x28 configuration is optimized for both-eyes-open shooting techniques which affords an unlimited field of view and eye relief to make it as comfortable as possible with maximum situational awareness.The DCL30C is sized to work perfectly on AR platforms, and its integrated mount is compatible with Picatinny/Weaver rails. To withstand the rigors of rifle mounting, the sight is made of lightweight and durable 6061-T6 aluminum and the exterior is treated with a scratch-resistant Type III hard anodized finish. The housing is O-ring sealed to be waterproof and submersible to a depth of 30 feet, and has a broad operating temperature range for use in extreme conditions. - Optical Performance
-
- 1x28 configuration is specifically designed for both-eyes-open shooting techniques that allow for fast target acquisition and tracking of moving targets
- Unmagnified view provides exceptional situational awareness optimized for Close Quarters Battle (CQB)
- Large 28mm sight window is spacious and easy to view through
- Reticle Details
-
- Red illumination is easy to see in daylight, in a well-lit room, and in the dark
- 2 MOA center aiming dot won't obstruct small targets
- Large 65 MOA circle around dot is ideal for larger targets
- Three brightness levels that are compatible with NVDs, three levels for twilight-level ambient light, five daylight settings
- Runs on one CR2032 battery
- Runs for over 8000 hours at brightness level 6
- Use and Handling
-
- 1 MOA impact point correction
- ±100 MOA windage and elevation adjustment range
- Large rotary switch is easy to manipulate in cold and wet weather, or while wearing gloves
- Construction Details
-
- Size is optimized for AR platforms
- Lightweight and durable 6061-T6 aluminum alloy
- Scratch-resistant Type III hard-anodized finish
- Waterproof to 30'
- Integrated Picatinny/Weaver rail mount
- Broad -25 to 110°F operating temperature range
- 12.3-ounce weight
UPC: 889054000170 In the Box DI Optical 1x28 DCL30C Prismatic Red Dot Sight (2 MOA Dot Reticle) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DI Optical 1x28 DCL30C Prismatic Red Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDI Optical DCL30C Specs | Reticle | 2 MOA Dot | Reticle Color | Red | Eye Relief | Unlimited | Power Source | 1 x CR2032 | Runtime | 8000 Hours | Mounting | Picatinny / Weaver | Quick Release | No | | Magnification | 1x | Objective Lens Diameter | 28 mm | | Impact Point Correction | 1 MOA | Windage Adjustment |
