DI Optical EG1-203 Red Dot Reflex

Search your instruction manual in PDF to download

User Manual for DI Optical EG1-203 Red Dot Reflex Sight

Click to enlarge the picture
DI Optical EG1-203 Red Dot Reflex Sight Contents of the user manual for the DI Optical EG1-203 Red Dot Reflex
  • Product category: Red Dot/Holographic Sights DI Optical
  • Brand: DI Optical
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for DI Optical Red Dot/Holographic Sights

DI Optical EG1-203 Red Dot Reflex Sight DI Optical EG1-203 Red Dot Reflex Sight DI Optical EG1-203 Red Dot Reflex Sight DI Optical EG1-203 Red Dot Reflex Sight
User manual for the DI Optical EG1-203 Red Dot Reflex contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any DI Optical product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official DI Optical user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a DI Optical product will considerably shorten its lifespan!



Product description

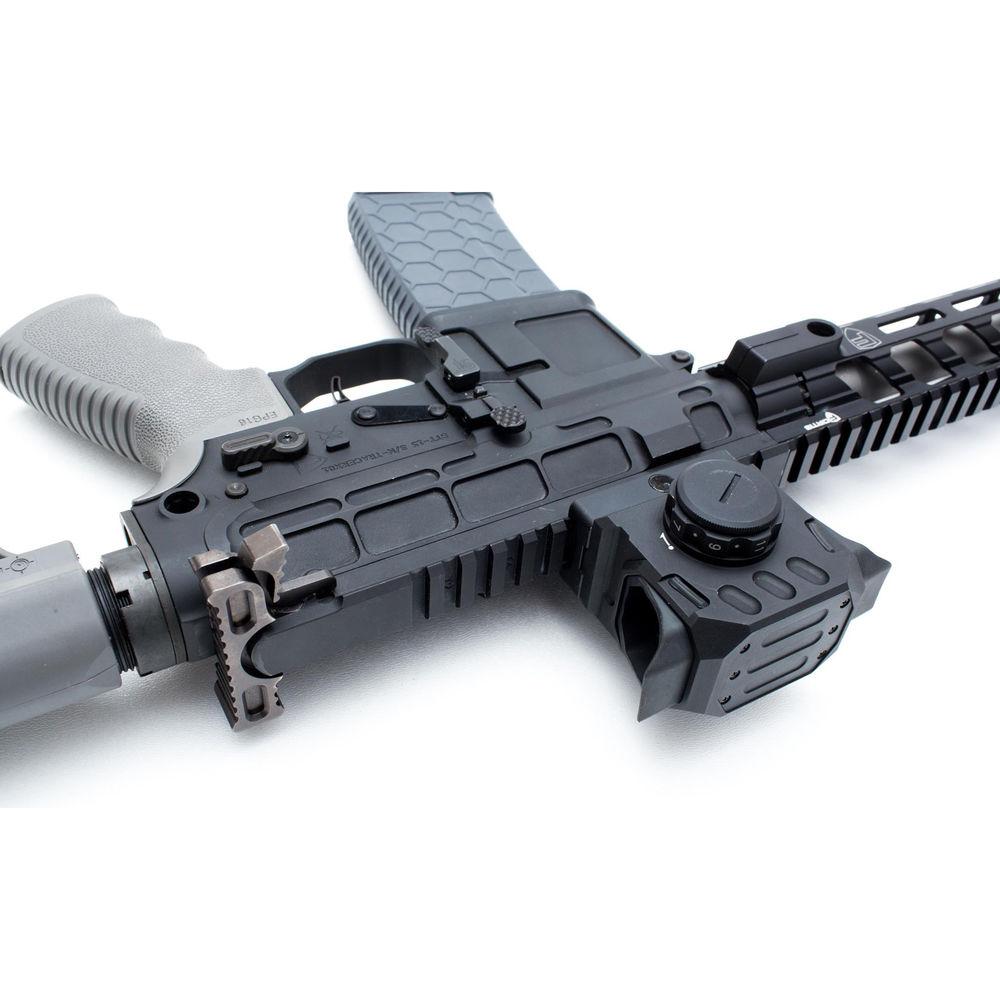

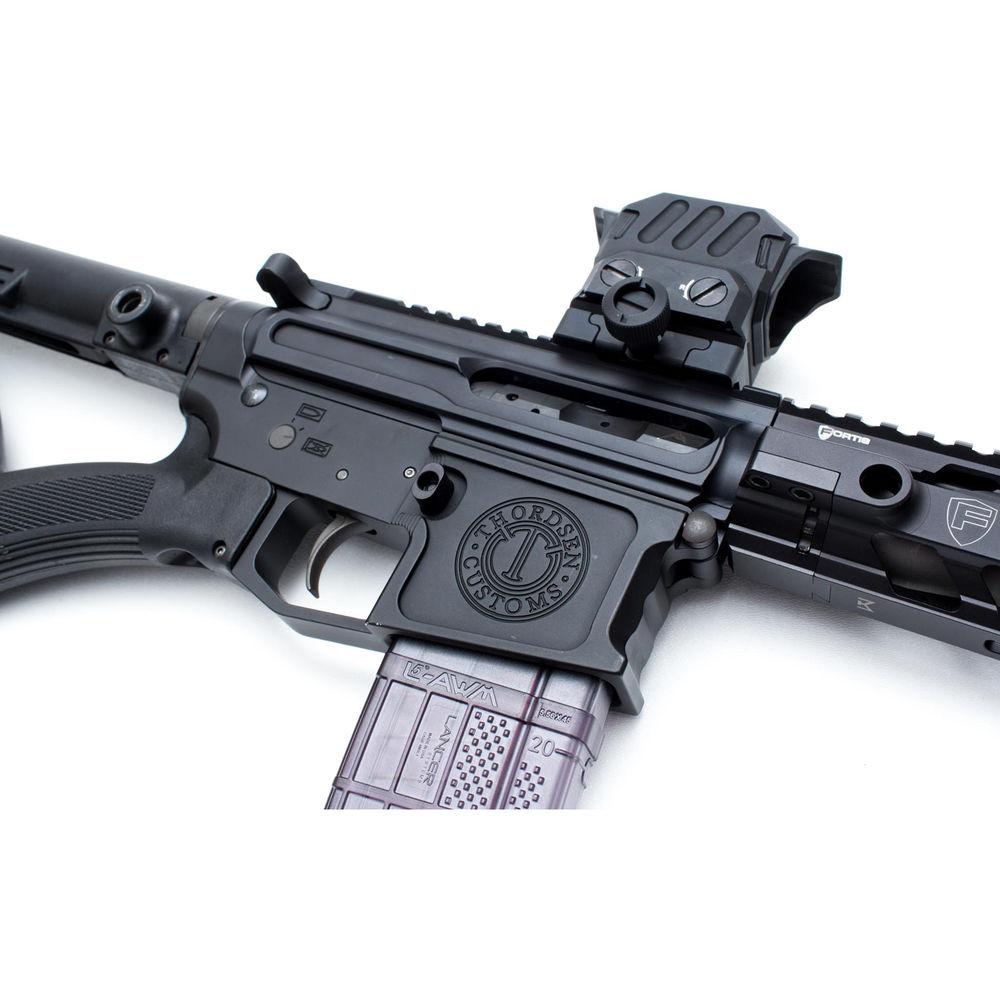

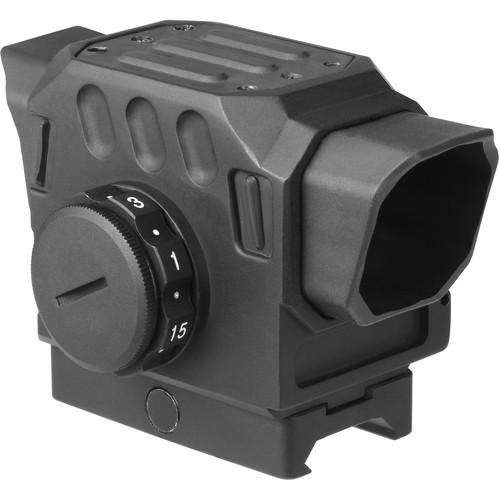

Overpower your foe with the help of the DI Optical EG1-203 Red Dot Reflex Sight. This compact and robust sight features a 1x multi-coated optical system that provides bright and clear images with a wide field of view and an unlimited eye relief. To help you make that laser-sharp shot, this optic offers an LED-illuminated 1.5 MOA Red Dot reticle, which performs virtually free of parallax. Using a rotary side dial knob, you can adjust the reticle's illumination from a bright red color, suitable for daylight, all the way down to a dim light that works well with night vision devices. The reticle is powered by the included CR2032 battery, which will run on your device for up to 5000 hours before it needs to be replaced. To compensate for ballistics and high winds, the scope also offers generous windage and elevation adjustment ranges of 80 MOA and 1 MOA clicks.

To make it a matching addition to your firearm, this gun sight is outfitted with a durable and lightweight CNC-machined 6061-T6 aluminum housing. It is impact-resistant, recoil-resistant, and waterproof and will endure the challenging conditions of the battlefields. Other highlights are its short footprint on your gun, protective rubber hoods on the objective and eyepiece, and a single-lever ADM 203 quick-detach Picatinny rail mount.
    Optical Performance
    • 1x magnification
    • Anti-reflection multi-coated
    • 30 x 30mm objective aperture
    • Unlimited eye relief
    • Virtually unlimited field of view
    • Parallax-free
      Reticle
      • 1.5 MOA Red Dot
      • LED illumination
      • 11 day illumination settings
      • 4 illumination settings for night vision devices
      • Powered by a CR2032 battery
      • 5000 hours of runtime at medium brightness
        Use and Handling
        • 1 MOA impact point correction
        • 80 MOA windage and elevation ranges
        • Rotary knob controls reticle brightness
          Construction
          • CNC-machined 6061-T6 aluminum
          • Waterproof and submersible to 10'
          • Front and back lens hoods
          • ADM 203 QD Picatinny rail mount
          In the Box DI Optical EG1-203 Red Dot Reflex Sight (1.5 MOA Red Dot Illuminated Reticle, Matte Black)
        • CR2032 Battery
        • ADM 203 QD Picatinny Mount
        • Limited 3-Year Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the DI Optical EG1-203 Red Dot Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

DI Optical EG1-203 Specs

Magnification 1x
Reticle 1.5 MOA Red Dot
Objective Size 1.18 x 1.18" / 30 x 30 mm
Field of View Unlimited
Mounting System Picatinny rail
Impact Point Correction 1 MOA
Windage/Elevation Adjustment 80 MOA
Weatherproofing Waterproof, submersible to 10' / 3.04 m
Battery / Runtime 1 x CR2032 battery / 5000 hours at medium brightness level
Storage Temperature -42 to 160°F / -41 to 71°C
Operating temperature -25.6 to 160°F / -32 to 71°C
Dimensions 2.44 x 2.4 x 2.3" / 62.0 x 60.0 x 58.0mm
Weight 11.8 oz / 334.0 g

Rating

70% users recommend this product to others. And what about you?
Rating: 3.5 of 5

This product has already been rated by 78 owners. Add your rating and experience with the product.
