User Manual for DI Optical EG1 Red Dot Reflex Sight Click to enlarge the picture
Contents of the user manual for the DI Optical EG1 Red Dot Reflex
- Product category: Red Dot/Holographic Sights DI Optical
- Brand: DI Optical
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DI Optical Red Dot/Holographic Sights
 |
User manual for the DI Optical EG1 Red Dot Reflex contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DI Optical product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DI Optical user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DI Optical product will considerably shorten its lifespan!
|

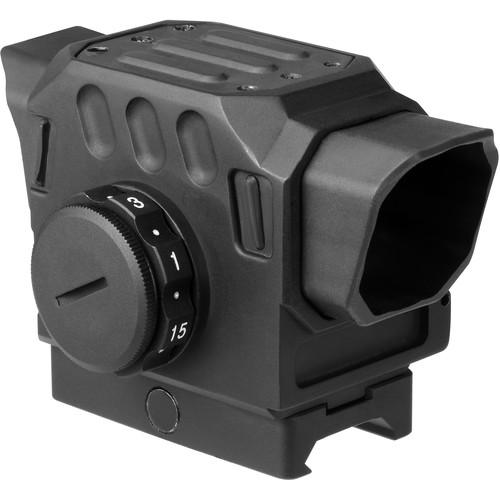

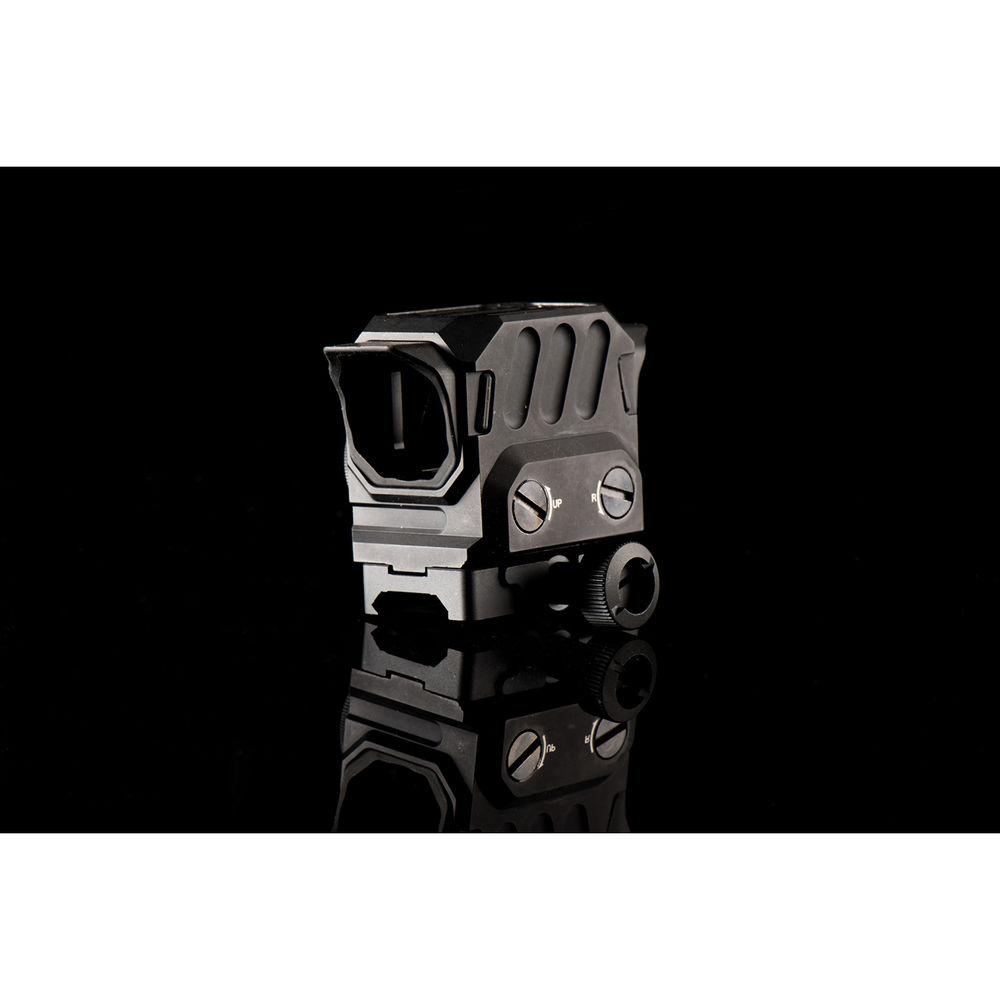

Product description Overpower your foe with the help of the DI Optical EG1 Red Dot Reflex Sight. This compact and robust sight features a 1x multi-coated optical system that provides bright and clear images with a wide field of view and an unlimited eye relief. To help you make that laser-sharp shot, this optic offers an LED-illuminated 1.5 MOA Red Dot reticle, which performs virtually free of parallax. Using a rotary side dial knob, you can adjust the reticle's illumination from a bright red color, suitable for daylight, all the way down to a dim light that works well with night vision devices. The reticle is powered by the included CR2032 battery, which will run on your device for up to 5000 hours before it needs to be replaced. To compensate for ballistics and high winds, the scope also offers generous windage and elevation adjustment ranges of 80 MOA and 1 MOA clicks.
To make it a matching addition to your firearm, this gun sight is outfitted with a durable and lightweight CNC-machined 6061-T6 aluminum housing. It is impact-resistant, recoil-resistant, and waterproof and will endure the challenging conditions of the battlefields. Other highlights are its short footprint on your gun, protective rubber hoods on the objective and eyepiece, and a Picatinny rail mount. - Optical Performance
-
- 1x magnification
- Anti-reflection multi-coated
- 30 x 30mm objective aperture
- Unlimited eye relief
- Virtually unlimited field of view
- Parallax-free
- Reticle
-
- 1.5 MOA Red Dot
- LED illumination
- 11 day illumination settings
- 4 illumination settings for night vision devices
- Powered by a CR2032 battery
- 5000 hours of runtime at medium brightness
- Use and Handling
-
- 1 MOA impact point correction
- 80 MOA windage and elevation ranges
- Rotary knob controls reticle brightness
- Construction
-
- CNC-machined 6061-T6 aluminum
- Waterproof and submersible to 10'
- Front and back lens hoods
- Picatinny rail mount
UPC: 889054000057 In the Box DI Optical EG1 Red Dot Reflex Sight (1.5 MOA Red Dot Illuminated Reticle, Matte Black) - CR2032 Battery
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the DI Optical EG1 Red Dot Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDI Optical EG1 Specs | Magnification | 1x | | Reticle | 1.5 MOA Red Dot | | Objective Size | 1.18 x 1.18" / 30 x 30 mm | | Field of View | Unlimited | | Mounting System | Picatinny rail | | Impact Point Correction | 1 MOA | | Windage/Elevation Adjustment | 80 MOA | | Weatherproofing | Waterproof, submersible to 10' / 3.04 m | | Battery / Runtime | 1 x CR2032 battery / 5000 hours at medium brightness level | | Storage Temperature | -42 to 160°F / -41 to 71°C | | Operating temperature | -25.6 to 160°F / -32 to 71°C | | Dimensions | 2.44 x 2.4 x 2.3" / 62.0 x 60.0 x 58.0mm | | Weight | 11.8 oz / 334.0 g |
