User Manual for DI Optical FC1 Prismatic Red Dot Sight Click to enlarge the picture
Contents of the user manual for the DI Optical FC1 Prismatic Red Dot
- Product category: Red Dot/Holographic Sights DI Optical
- Brand: DI Optical
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DI Optical Red Dot/Holographic Sights
 |
User manual for the DI Optical FC1 Prismatic Red Dot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DI Optical product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DI Optical user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DI Optical product will considerably shorten its lifespan!
|

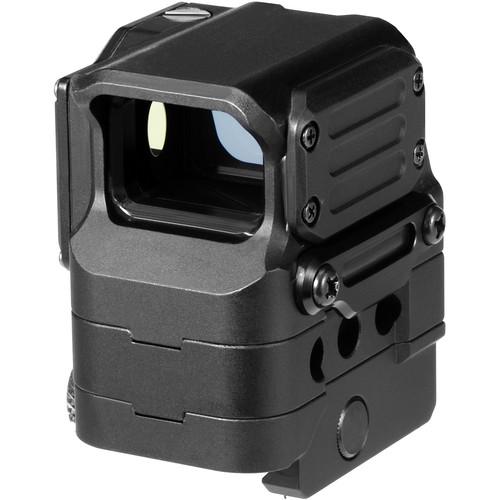

Product description CNC-machined from 6061-T6 aluminum, the DI Optical FC1 Prismatic Red Dot Sight offers extreme durability and toughness as well as a short 1.5" footprint on your rail. It is an ideal short-range aiming tool designed for carbines, sub-machine guns, and shotguns. The optical system offers bright and clear anti-reflection multi-coated 1x optics with a virtually unlimited field of view and a brilliant LED-illuminated 2 MOA Red Dot Reticle. The reticle is designed for top performance during the day, offering seven daytime brightness levels, and for compatibility with night vision devices, providing seven night vision brightness levels. It is virtually parallax-free, runs on one CR2032 battery, and has an automatic motion-sensitive shut off function that deactivates the illumination after ten hours of inactivity. To help you combat ballistic drop and strong crosswinds, the scope also has generous windage and elevation adjustment ranges of 100 MOA. - Optical Performance
-
- 1x magnification
- Anti-reflection multi-coated
- 0.9 x 0.67" objective window
- Unlimited eye relief
- Virtually unlimited field of view
- Parallax-free
- Reticle
-
- 2 MOA Red Dot
- LED illumination
- Seven daylight illumination settings
- Seven illumination settings for night vision devices
- Automatic shut off function turns off after ten hours of inactivity
- Powered by one CR2032 battery
- 5000 hours of runtime at medium brightness
- Use and Handling
-
- 1 MOA impact point correction
- 80 MOA windage and elevation ranges
- Single-button brightness control
- Construction
-
- CNC-machined 6061-T6 aluminum
- Waterproof and submersible to 10'
- Requires only 1.5" of rail space
- Top-mounted battery door for convenience
- Picatinny rail mount
UPC: 889054000064 In the Box DI Optical FC1 Prismatic Red Dot Sight (2 MOA Red Dot Reticle, Matte Black) - CR2032 Battery
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the DI Optical FC1 Prismatic Red Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDI Optical FC1 Specs | Magnification | 1x | | Reticle | 2 MOA Red Dot | | Objective Size | 0.9 x 0.67" / 23.0 x 17.0 mm | | Field of View | Unlimited | | Mounting System | Picatinny rail | | Impact Point Correction | 1 MOA | | Windage/Elevation Adjustment | 100 MOA | | Weatherproofing | Waterproof, submersible to 10' / 3.04 m | | Battery / Runtime | 1 x CR2032 battery / 5000 hours at medium brightness level | | Storage Temperature | -42 to 160°F / -41 to 71°C | | Operating temperature | -25.6 to 160°F / -32 to 71°C | | Dimensions | 1.89 x 1.7 x 1.7" / 48.0 x 43.0 x 43.0 mm | | Weight | 6.0 oz / 170.0 g | | | | Package Weight | 0.61 lb | | Box Dimensions (LxWxH) | 4.15 x 3.5 x 2.7" |
