User Manual for DI Optical RV1-203 Red Dot Reflex Sight Click to enlarge the picture
Contents of the user manual for the DI Optical RV1-203 Red Dot Reflex
- Product category: Red Dot/Holographic Sights DI Optical
- Brand: DI Optical
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DI Optical Red Dot/Holographic Sights
 |
User manual for the DI Optical RV1-203 Red Dot Reflex contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DI Optical product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DI Optical user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DI Optical product will considerably shorten its lifespan!
|

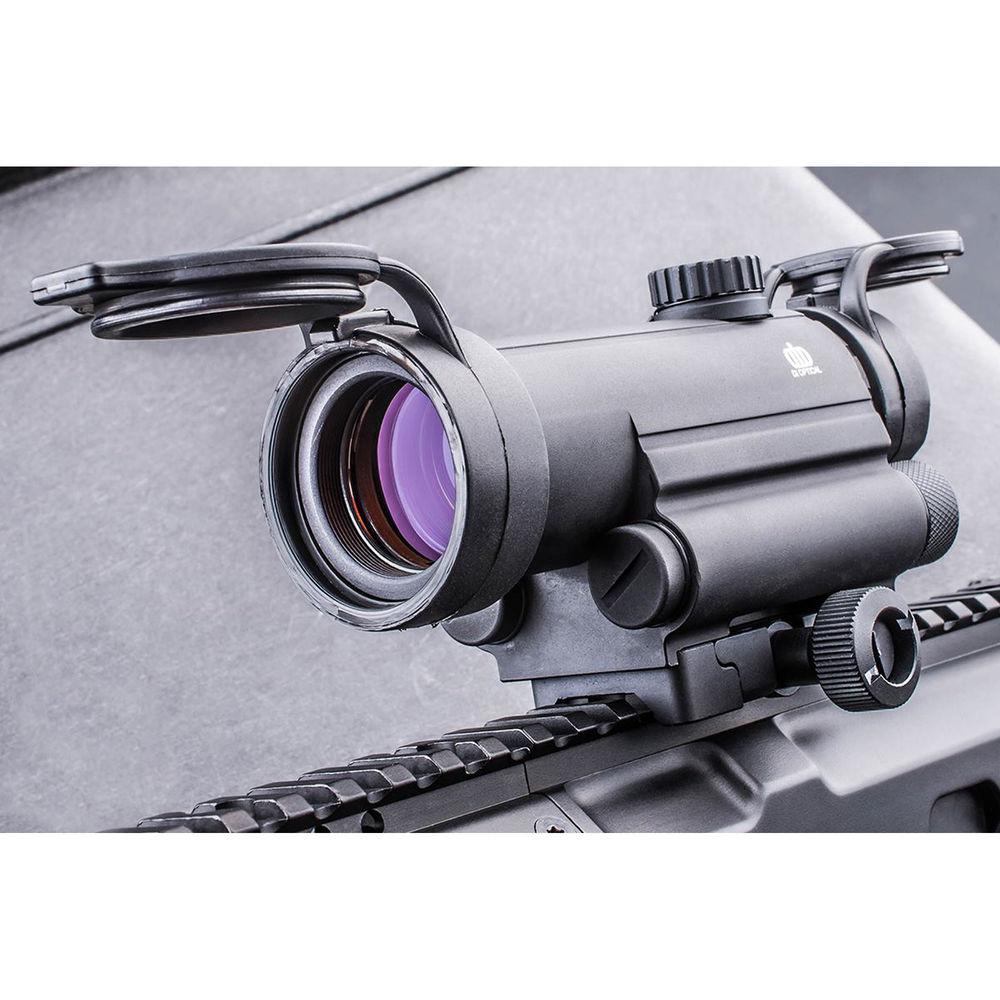

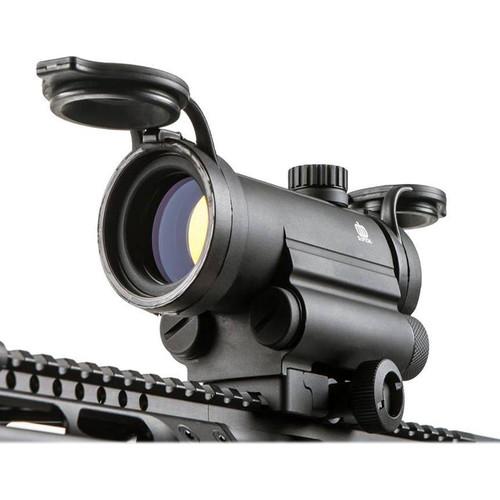

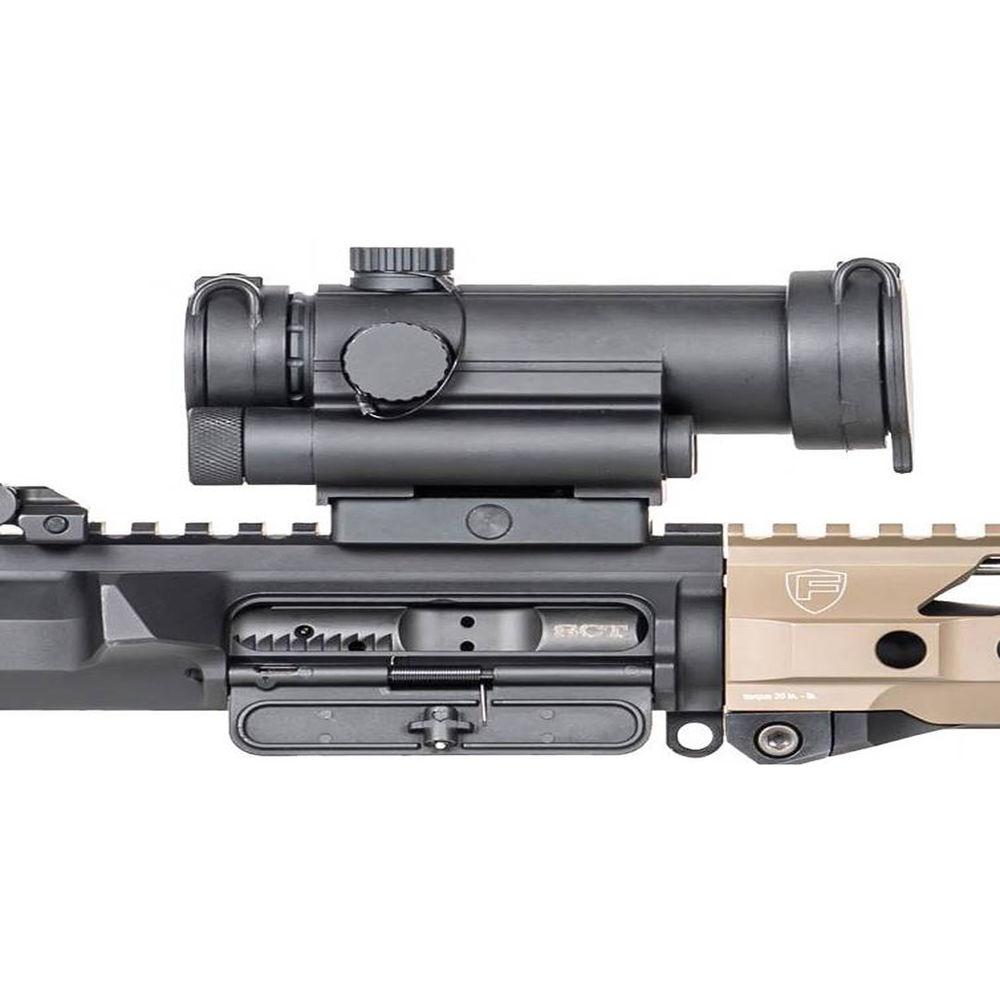

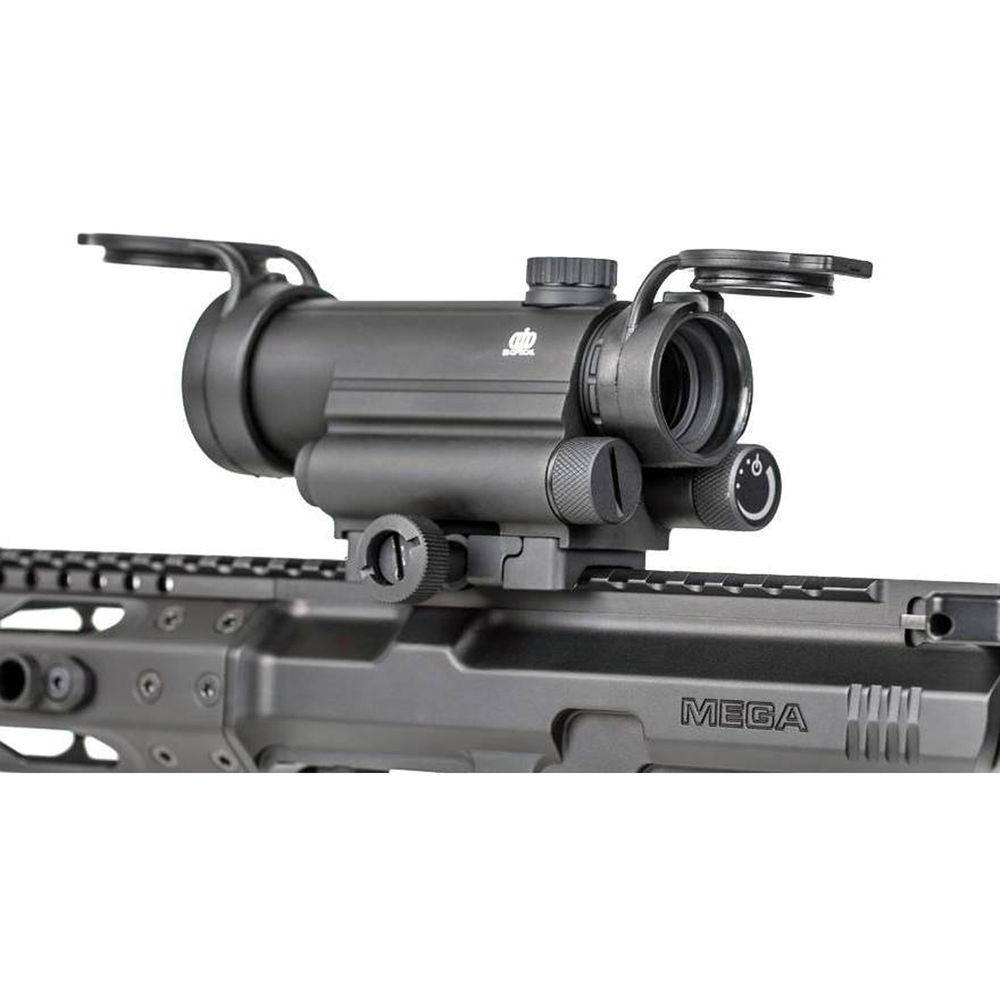

Product description Get on target with the DI Optical RV1-203 Red Dot Reflex Sight. CNC-machined from 6061-T6 aluminum, this sight exhibits extreme durability and waterproof performance (30' submersions) so that it can accompany you in the most unforgiving situations. For precision aiming, the optic features a 30mm objective aperture, clear and bright multi-coated lenses, and a 1.5 MOA Red Dot reticle with LED illumination. The reticle is designed to provide a bright aiming dot in daylight as well as at nighttime, and has settings that work well with night vision devices. To help with ballistics and wind, the sight also has generous (100 MOA) windage and elevation adjustment ranges. Using the included ADM 203 QD mount, this scope can be securely mounted to any Picatinny rail. - Optical Performance
-
- 1x magnification
- 30mm objective lens
- Unlimited eye relief
- Parallax-free
- Reticle
-
- 1.5 MOA Red Dot
- LED illumination
- Eight day illumination settings
- Three illumination settings for night vision devices
- Powered by one AA battery
- Use and Handling
-
- 1 MOA impact point correction
- 100 MOA windage and elevation ranges
- Rotary illumination brightness switch
- Construction
-
- CNC-machined 6061-T6 aluminum
- ADM 203 quick detach mount for Picatinny rails
- Waterproof to 30'
In the Box DI Optical RV1-203 Red Dot Reflex Sight (1.5 MOA Red Dot Illuminated Reticle, Matte Black) - 2 x Flip-Up Lens Covers
- AA Battery
- ADM 203 QD Mount
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the DI Optical RV1-203 Red Dot Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDI Optical RV1-203 Specs | Magnification | 1x | | Reticle | 1.5 MOA Red Dot
Compatible with night vision devices | | Objective Size | 30mm | | Field of View | 69.0" at 100 yd / 23.3 m at 100 m | | Mounting System | Picatinny rail | | Impact Point Correction | 1 MOA | | Windage/Elevation Adjustment | 100 MOA | | Weatherproofing | Waterproof, submersible to 30' / 9.14 m | | Battery / Runtime | 1 x AA battery / 20,000 hours | | Storage Temperature | -42 to 160°F / -41 to 71°C | | Operating temperature | -25.6 to 160°F / -32 to 71°C | | Dimensions | 1.89 x 1.7 x 1.7" / 125.0 x 71.0 x 56.0 mm | | Weight | 12.0 oz / 422.0 g (with battery and mount) |
