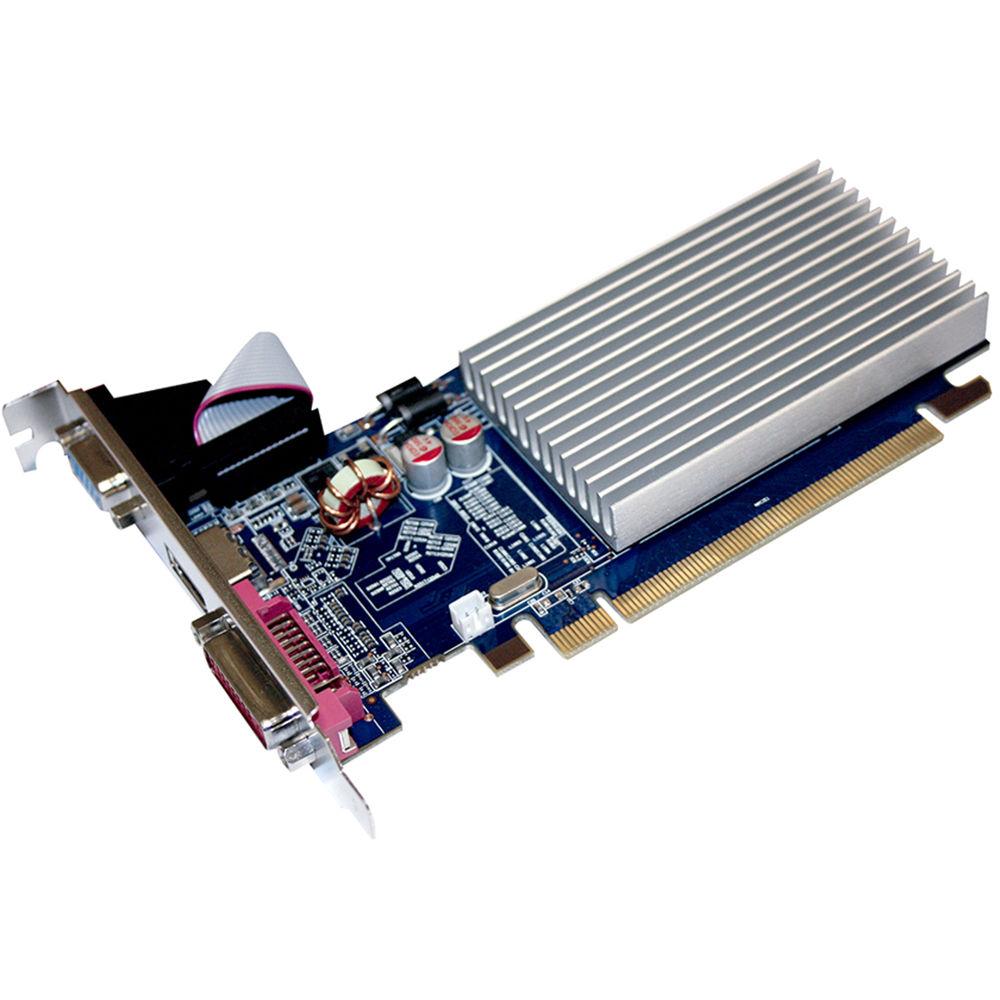

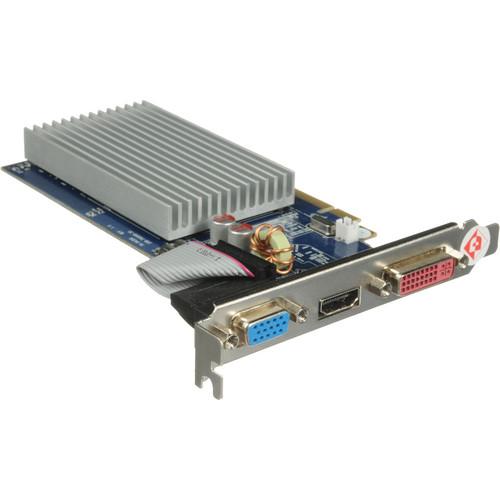

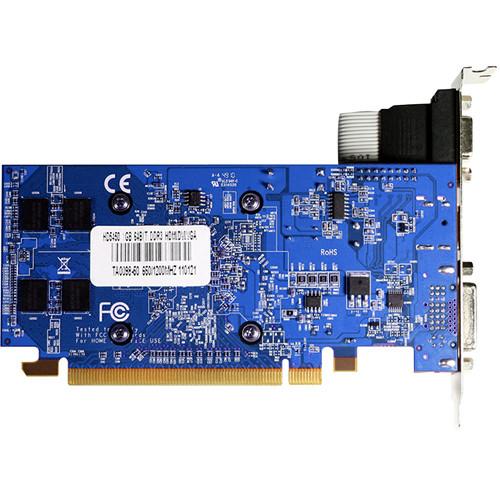

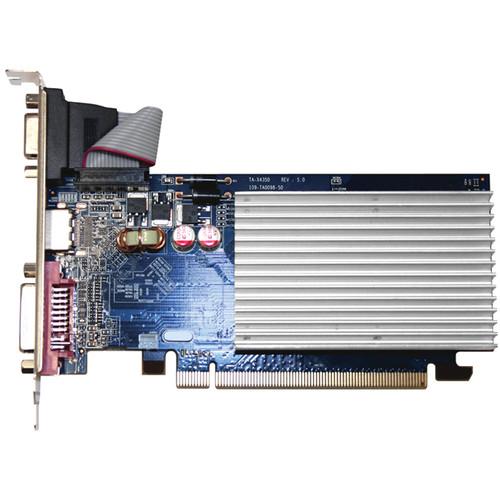

User Manual for Diamond Multimedia Radeon HD 5450 PCI Express GDDR3 1GB Video Graphics Card Click to enlarge the picture
Contents of the user manual for the Diamond Multimedia Radeon HD 5450 PCI
- Product category: Graphic Display Cards Diamond Multimedia
- Brand: Diamond Multimedia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Diamond Multimedia Graphic Display Cards
 |
User manual for the Diamond Multimedia Radeon HD 5450 PCI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Diamond Multimedia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Diamond Multimedia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Diamond Multimedia product will considerably shorten its lifespan!
|
Product description The Radeon HD 5450 GDDR3 1GB PCI Express Video Graphics Card from Diamond features dual monitor capability. This card has ATI Stream technology with which you can speed up numerous video tasks. It supports DirectX 11, thus completing the Windows 7 experience. - Engine clock speed: 650 MHz
- Processing power (single precision): 104 G FLOPS
- Polygon throughput: 650M polygons/sec
- Data fetch rate (32-bit): 20.8 billion fetches/sec
- Texture fill rate (bi linear filtered): 5.2 G texel /sec
- Pixel fill rate: 5.2 G pixels/sec
- Anti-aliased pixel fill rate: 10.4 G samples/sec
- Memory clock speed: 1200MHz GDDR3
- Memory data rate: 1.6 Gbps GDDR3
- Memory bandwidth: 12.8 GB/sec GDDR3
- Max board power: 19.4 Watts
UPC: 757448021752 In the Box Diamond Multimedia Radeon HD 5450 PCI Express GDDR3 1GB Video Graphics Card Install CD Quick Start Guide 1-Year Limited Warranty; 5- Year with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Diamond Multimedia Radeon HD 5450 PCI Express GDDR3 1GB Video Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

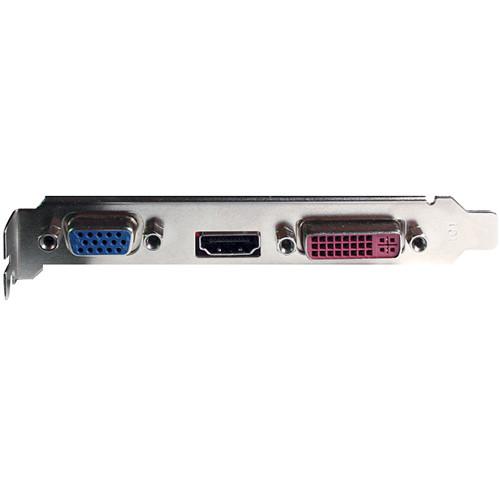

Technical parametersDiamond Multimedia HD 5450 Specs | | | GPU | Cedar | | ASIC Core | 5450 | | Core Clock | 650 MHz | | BUS | PCI Express x16 | | Ports | Dual-Link DVI,HDMI,VGA | | MFG Process | 40nm | | Transistor Count | 292 million transistors | | Cooling | Passive - HeatSink | | | | Standard Slot Solution | SINGLE | | CrossFire | CrossFire X | | Direct-X | 11.0 (8.0,9.0,10.0-10.1,) | | Open GL Support | OpenGL 3.2 | | Video Acceleration | ATI Stream acceleration technology | | Maximum Resolution Analog | 2048 x 1536 | | Maximum Resolution Digital | 2560 x 1600 | | HDR F.Point Rendering | 128 | | HDR Integer | 16-bit integer or floating point | | Anti Aliasing Modes | Up to 12x multi-sample and super-sample anti-aliasing modes | | Antisotropic Modes | 16x angle independent anisotropic texture filtering | | Texture Support | HDR texture compression | | | | Memory Clock | 600 MHz | | Memory Configuration | 32 X 32 | | Memory Type | GDDR3 | | Memory Bandwidth | 9.6 GB/s | | Memory Size | 1024MB | | RAMDAC | 400 MHz | | | | HDTV | YES | | HDMI | HDMI 1.3 / HDMI Ready | | HDMI MODE | 1.3 | | Native Display Support | No | | 3D Resolution | 2560 x 1600 | | Dual Display support | Yes | | System Requirements | Operating System: WIN 7 32 , WIN 7 64 WINVISTA32 , WINVISTA64 WINXP , WINXP64 MCE
System CPU: Pentium Intel Duo, AMD X64 or higher
CPU Speed: 2.4 GHz or higher CPU
System Memory: 1024MB
Power Supply: 400 Watt or greater power supply recommended
Optical Drive: Installation software requires CD-ROM drive, DVD playback requires DVD drive, Blu-ray playback requires Blu-ray drive
Hard Disk Space: 480MB available hard disk space
CD DVD: YES
BUS: PCI Express x16
Available Slot: SINGLE
Chassis: ATX
Monitor: Digital flat-panel (DFP) displays or Compatible DVI-I or digital CRT display or High-resolution VGA monitor | | Dimensions | 6.6 x 2.9 x .57" (16.8 x 7.4 x 1.4 cm) | | Weight | 0.6 lb (272.2 g) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 9.8 x 6.4 x 2.1" |
