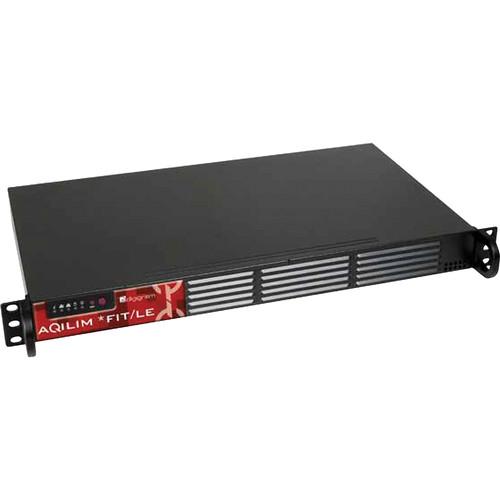

User Manual for Digigram Aqilim FIT LE SH Encoding Platform for IPTV and Multi-Screen Distribution Click to enlarge the picture
Contents of the user manual for the Digigram Aqilim FIT LE SH Encoding
- Product category: Streaming Media Solutions Digigram
- Brand: Digigram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digigram Streaming Media Solutions
|
User manual for the Digigram Aqilim FIT LE SH Encoding contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digigram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digigram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digigram product will considerably shorten its lifespan!
|
Product description The 1RU Aqilim FIT/LE SH Encoding Platform for IPTV and Multi-Screen Distribution from Digigram is a professional video encoder that simplifies high-quality live event broadcasting over an IPTV network or the Internet. The Aqilim FIT/LE has flexible input options and encodes video up to 6 Mbps in H264/AVC. It is compatible with leading CDN providers.
This product is suitable for a range of new applications for live video, such as filmed radio, live distribution of corporate, sporting or news events, the creation of WebTV, live multi-screen video distribution, and live education via e-learning. - Compatible with leading CDN, including Akamai, Level 3, Dailymotion, YouTube, and Limelight
- HLS and RTMP protocols supported for HD streaming
- Equipped with 2Gb Ethernet interfaces, providing complete IP flexibility
- Stream to multiple destinations points in UPD or RTP network protocols while using Multicast, Unicast, or Unicast Multi-points methods
- Intuitive system interface and appliance management
- Evolutive solution based on software encoding
In the Box Digigram Aqilim FIT/LE SH Encoding Platform for IPTV and Multi-Screen Distribution (1 RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram Aqilim FIT LE SH Encoding Platform for IPTV and Multi-Screen Distribution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram VB2146A0601 Specs | Channels | Number: Single input
Function: Encoding | | Connectors | 4 x USB, port
1 x PS2, port
1 x RJ45, Ethernet port ETH0
1 x RJ45, Ethernet port ETH1
1 x VGA, monitor output
1 x SDI, video input
1 x HDMI, video input
AC power jack, power input | | Input Video Resolutions | SD: 625i/50 PAL; 525i/59.94 NTSC
HD: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60 | | Video Output Format | RTMP Streaming for Adobe Flash
MPEG Transport Stream over UDP-RTP/IP
Optional: Apple HTTP live streaming for Apple and Android devices (FTP, Webdav) | | Video Specifications | H264/AVC Baseline/Main/High Profile
VBR, CBR
4:2:0 8-bit
Video encoding rate: up to 6 Mb/s | | Audio Specifications | AAC Series | | Characteristics | Remote: Web-based management, XML API, NTP
Low noise, Easy to use, Compatible with CDNs protocols and authentications
Security: Fan and temperature control
Presets: Up to 100 different encoding/decoding profiles | | Temperature | Operating: 50 to 95°F (10 to 35°C)
Storage: -4 to 158°F (-20 to 70°C) | | Compliance | EMC: EN55022, EN55024
Safety: EN 60950 | | Power Supply | 100 - 240 VAC, 50 W maximum consumption | | Dimensions | 19.00 x 1.75 x 9.80" (48.3 x 4.4 x 24.9 cm) | | Weight | 7.9 lb (3.6 kg) |
