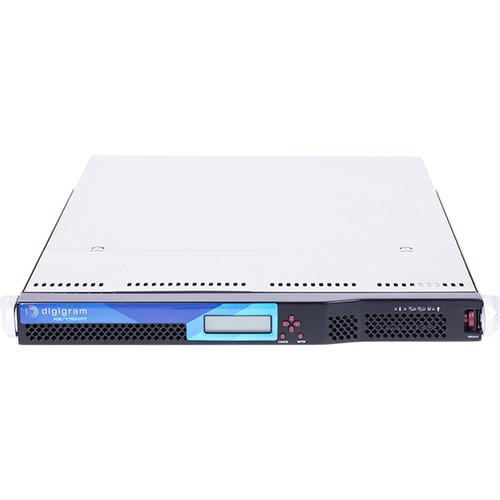

User Manual for Digigram Aqilim Serv Fit 1C 1-Channel HD SD Encoding Transcoding Platform for IPTV and OTT Click to enlarge the picture
Contents of the user manual for the Digigram Aqilim Serv Fit 1C 1-Channel
- Product category: Streaming Media Solutions Digigram
- Brand: Digigram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digigram Streaming Media Solutions
|
User manual for the Digigram Aqilim Serv Fit 1C 1-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digigram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digigram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digigram product will considerably shorten its lifespan!
|
Product description The 1RU Aqilim Serv/Fit 1C 1-Channel HD/SD Encoding/Transcoding Platform for IPTV and OTT from Digigram is a video encoder/transcoder unit which simplifies high-quality live event broadcasting over an IPTV network or the Internet and provides OTT (over-the-top) network applications. - HD/SD Encoding Applications
- An HD-SDI input supports both HD and SD input formats and enable SDI input encoding in multiple resolutions, from HD to SQCIF in MPEG2, H.264, and VC1 formats. Aqilim FIT supports multiple encoding sessions from the same SDI input. With integrated HLS support for Apple devices, MPEG-TS for IPTV, and Flash streaming for WEBTV, the Aqilim FIT provides a complete, live, multi-screen delivery system.
- HD/SD Transcoding Applications
- The software core of the Aqilim FIT provides multiple streaming solutions and CODEC options. MPEG-2 to H.264 transcoding functionality reduces the original MPEG-2 bandwidth by half while preserving high quality video. H.264 to MPEG-2 provides a professional solution to adapt the new standard H.264 stream to standard distribution networks. An H.264 to H.264 transrating function further provides the means to reduce the original H.264 bandwidth without losing image quality. The internal Scaler and Container Adapters provide a complete solution when delivering specific streams to Mobile Devices, WebTV, and IPTV from a standard input stream.
- Flexibility
- The Aqilim FIT is an all-IP solution for SDI input, high-quality SD video encoding, and transcoding at data rates up to 10Mb/s. Equipped with 2Gb Ethernet interfaces the Aqilim FIT provides complete IP flexibility. Simultaneously stream to multiple destination points in UDP or RTP network protocols while using multiple network streaming methods such as Multicast, Unicast, or Unicast Multi-point. Aqilim FIT provides concurrent streaming over the Internet for up to 10 different IP addresses.
- Intuitive System Interface/Appliance Management
- Complete system management is undertaken through either the local HMI front panel or remotely from any web enabled PC or XML API. Start/Stop or manage up to 100 Profiles remotely through the web interface or monitor hardware status such as chassis cooling temperatures, fan speeds and alarms.
In the Box Digigram Aqilim Serv/Fit 1C 1-Channel HD/SD Encoding/Transcoding Platform for IPTV and OTT (1 RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram Aqilim Serv Fit 1C 1-Channel HD SD Encoding Transcoding Platform for IPTV and OTT in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram VB2146A0301 Specs | Channels | Number of Channels: 1
Channel Functions: Encoding or transcoding | | Connectors | 4 x SD/HD-SDI (SMPTE 292, 259M), embedded audio/video input
1 x MPEG2-TS over UDP-RTP/IP or HDD, audio/video input
1 x MPEG2-TS, video output
1 x RJ45, Ethernet port ETH0
1 x RJ45, Ethernet port ETH1
2 x USB, port | | Codecs | Audio: MPEG1 Layer 2, AAC-LC, HE-AAC v1-v2, WMA
Video: H.264 | | Input Video Resolutions | SD: NTSC: 720 x 480 59.94i; PAL: 720 x 576 50i
HD: 1080i50/60; 1080p25/30; 720p50/60 | | Video Processing | Hardware Downscaling (HD to SD), Scaling, Cropping, De-interlace | | Encoding | 1 HD video
8 SD video
30 CIF video | | IP Input / Output | Stream up to 10 different IP addresses | | Storage Capacity | 1 TB SATA HDD | | Management | Remote: Web based management, XML API, NTP
Local MMI/LCD-Keypad
Security: Fan control, Temperature control | | Temperature | Operating: 50 to 95°F (10 to 35°C)
Storage: -40 to 158°F (-40 to 70°C) | | Compliance | CE Mark. EMC: EN55022, EN55024
Safety: EN 60950-1:2006 | | Power Supply | 100 - 240 VAC, 650 W Hot-swappable power supplies | | Dimensions | 19.0 x 25.6 x 1.75" (48 x 65 x 4 cm) | | Weight | 46.3 lb (21 kg) |
