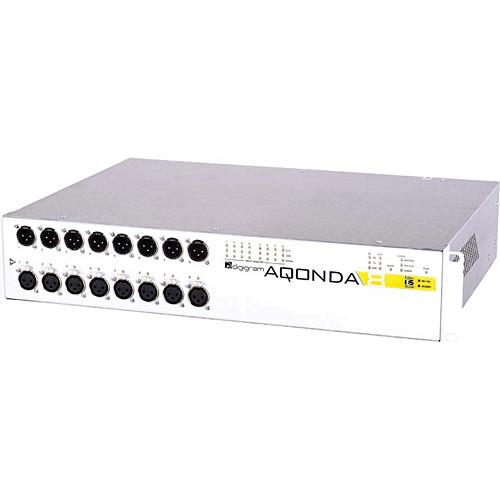

Product description The Digigram AQONDA8 Ethernet Audio Bridge would be commonly referred to as a "digital snake" with 8 analog inputs and outputs on 3-pin XLR connectors, capable of both microphone and line level signal. The AQONDA8 uses Ethernet connections to and from digital consoles, additional bridges and other gear, in order to create a loss-less digital signal path for live sound, broadcast and recording applications. The AQONDA8 is remotely programmable, capable of microphone and line level switching, phantom power, various routing configurations and more. Digigram's high quality converters are capable of 44.1 and 48kHz sampling rates. - Convert up to 8 analog signals into as many EtherSound channels
- Extract up to 8 EtherSound channels to 8 analog outputs
- 2 models: AQONDA 8 (8-in/8-out) - AQONDA 16 (16-in/16-out)
- ES-Giga 2x256 channel count
- ES-Giga additional network / control capabilities
- ES-Giga TCP/IP data tunneling: remote control components such as amp control devices, DMX lighting controllers, processors, etc.
- Outside Broadcasting
- AQONDA audio bridges offer an affordable "digital snake" solution with no compromise on audio quality. Redundant ring capability will bring you peace of mind by guaranteeing 100% on-air time.
- Live Events
- Build a large scale audio bus between the stage and front-of-house, providing audio quality from Digigram and remotely controllable preamps from popular digital consoles with EtherSound connectivity such as Yamaha or Innovason consoles
- Versatile Digital Snake
- Through the very same ES-Giga network link, transport up to 512 audio signals plus the control and monitoring data for the entire system. Don't be afraid of sharing your network with the lighting guys. The system is designed to give audio the top priority, whatever happens with the other encapsulated data
- Compatibility with existing EtherSound Setups
- While ES-Giga compatibility makes this EtherSound audio bridge future-proof, it is also perfectly compatible with existing ES-100 setups. A simple switch on the back panel will turn this ES-Giga workhorse into a regular ES-100 interface with no compatibility restrictions.
Uncompromised Quality in a Small Package - No compromise on audio quality: the inputs cover a linear gain range from microphone to line level
- Extremely high end preamps
- Preamps remotely controllable from popular digital consoles with EtherSound connectivity (e.g. Yamaha or Innovason consoles).
- Made-to-last analog/network Neutrik connectivity.
- Compact 2U 19-inch rack form factor, flawless build quality
In the Box Digigram AQONDA8 Ethernet Audio Bridge 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram AQONDA8 Ethernet Audio Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram 8 Specs | Analog I/O | Analog Input
8x Mono balanced / unbalanced, line / mic inputsConnector: 3-pin XLR
Phantom Power: 48VDCProgrammable Input Level: -22 to 71dB in 1dB step
Max Input Level +22dBu Max input Level with +71dB Gain at 0dBFS: -71dBu
Impedance (software selectable) 600 Ohm / > 3 kOhm
Analog Output8x Mono balanced / unbalanced, line / mic inputs
Connector: 3-pin XLRProgrammable Output Level: -118dB to 0dB in 0,5dB step
Max Output Level +22dBu / < 100 ohm | | Frequency Response | 20Hz to 20kHz | | Dynamic Range | 112dB | | THD & Noise | Input: < - 100dB
Output: < -98dB1kHz @ -2dBfs | | Crosstalk | 1 kHz at +22dBu : < -115dB
15 kHz at +22dBu : < -105dB | | EIN | < -126dBu | | Digital | Programmable sampling frequency: 48, 44kHz
A/D and D/A converter resolution: 24 bits | | Aux Input Connectors | Word Clock: 1 input and 1 output on two BNC connector
RS232 / RS422: 1 RX / 1 TX on DB9 Male General Purpose Input: 8 Ground Sensing inputs on 2x 8 pts Terminal Block
General Purpose Output 8 relay outputs on 2 x 8pts Terminal Block | | Power Supply | 100V - 250V 50 - 60Hz | | Operating Temperature | 0°C / +50°C • 5% / 90% | | Dimensions | 3.46 x 19 x 12.80 (88 x 482.6 x 325mm)
2U 19" Rack | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 22.0 x 14.0 x 10.0" |
