User Manual for Digigram BOB12 - Breakout Box Click to enlarge the picture
Contents of the user manual for the Digigram BOB12 - Breakout Box
- Product category: Audio Interfaces & Systems Digigram
- Brand: Digigram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digigram Audio Interfaces & Systems
|
User manual for the Digigram BOB12 - Breakout Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digigram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digigram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digigram product will considerably shorten its lifespan!
|

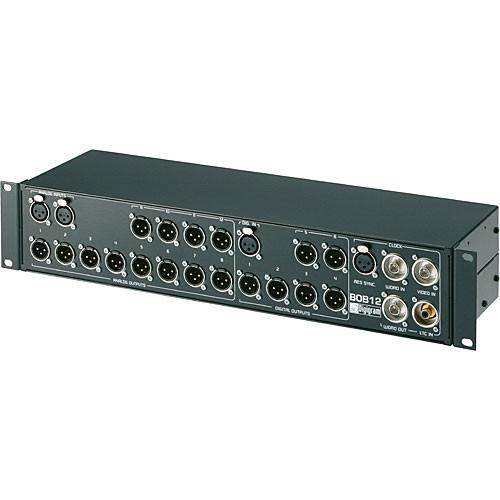

Product description The BOB12 is an elegant, safe, and ergonomic, 2U rack-mount solution to connect audio sources and destinations with Digigram's VX1221 and VX1222 series sound cards. It also allows for four mounting configurations - rack front-end, rack back-end, under a table or top of a table. The box features 2 channels of analog and digital input, 12 mono channels of analog output, and 6 stereo channels of digital output, along with sync I/O. Depending on which sound card is connected, not all connectors will be utilized. Note: A 2 meter cable is included with any BOB8/BOB12 packaged with a Digigram multi-channel sound card. For a separately purchased breakout box, cables are available optionally. - 2 analog inputs, 12 analog outputs, a single stereo digital input and 6 digital outputs available simultaneously on the front panel
- AES synchronization, Wordclock I/O, Video In and LTC In connectors
- Compatible with Digigram's VX1221 and VX1222 series multi-channel sound cards
- 4 mounting configurations include racked using front end rack ears, racked using back end, and under or on top of a table
- High-quality Neutrik connectors
In the Box Digigram BOB12 - Breakout Box One (1) Year Warranty User Manual PDF 789.4kbzcbatwcystvs Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram BOB12 - Breakout Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram BOB12 Specs | Analog Inputs | 2 x XLR | | Analog Outputs | 12 x XLR | | Digital Inputs | 1 x XLR AES/EBU | | Digital Outputs | 6 x XLR AES/EBU | | Other Connectors | 1 x 68-pin SCSI MDR (on rear panel for connection to sound card)
1 x XLR/F AES Sync In
2 x BNC Wordclock I/O
1 x BNC Video In
1 x RCA coaxial LTC In | | Dimensions (WxDxH) | 19 x 5.9 x 3.5" (483 x 150 x 89mm) | | Weight | 5.75 lbs (2.6 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 23.0 x 16.0 x 11.0" |
