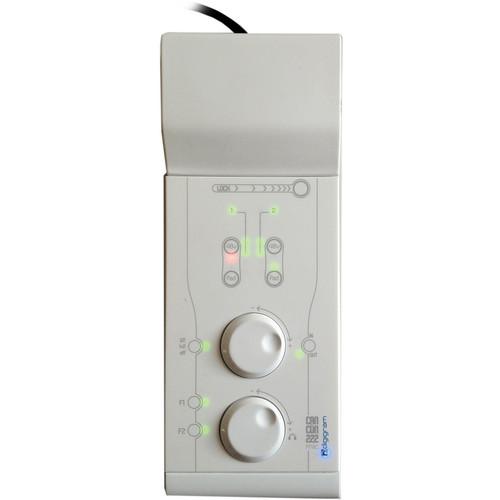

User Manual for Digigram CANCUN 222-Mic USB 2.0 Audio Interface Click to enlarge the picture
Contents of the user manual for the Digigram CANCUN 222-Mic USB 2.0 Audio
- Product category: Audio Interfaces & Systems Digigram
- Brand: Digigram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digigram Audio Interfaces & Systems
|
User manual for the Digigram CANCUN 222-Mic USB 2.0 Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digigram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digigram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digigram product will considerably shorten its lifespan!
|
Product description The Digigram CANCUN 222-Mic USB 2.0 Audio Interface is a high-quality, compact unit designed to meet the needs of reporters and mobile audio professionals. It delivers up to 24-bit, 192 kHz audio with low latency and high headroom.
Digigram designed the CANCUN 222-Mic with an ergonomically advanced user interface, featuring an LED-lighted touch panel that makes setup fast. You get up to 2 simultaneous balanced mic/line mono analog inputs along with 1 stereo pair of AES/EBU I/O inputs. Also provided are 2 balanced line outs and 1 AES/EBU stereo output pair. The mic preamps are excellent quality, providing 55dB of gain, and headroom is an impressive +25dBu.
A breakout cable featuring 6 Neutrik XLR connectors is included, and all the analog and digital connections are available on a 25-point D-Sub connector, allowing users to create custom cables to suit their applications. MIDI I/O is offered on the D-Sub, as well.
The CANCUN 222-Mic features USB 2.0 connectivity, and features three connectors: 2 Type A and 1 Mini B. Its latency can be as low as 3.4 mS on Windows systems and 3.8 mS on Mac systems. - 2 simultaneous analog & AES I/Os in a compact form factor (10 x 3.8 x 1.4", [254 x 96 x 36mm])
- Mic preamps offer low noise and high gain: 55dB gain, 100 dB THD+N, and -126 dB EIN.
- Analog headroom of +24 dBu
- Low latency (4 mS) on both Windows and Mac OSX platforms
- Ergonomically advanced user interface for quick setup and efficient monitoring on both Windows and Mac OSX platforms. Intuitive hardware controls with LED-lighted touch panel
- Neutrik XLR connectivity via breakout cable with 6 jacks.
In the Box Digigram CANCUN 222-Mic USB 2.0 Audio Interface 1-Year Warranty User Manual PDF 1.1mbzzyxyxvcdewcrrerxrauwebaeybbttfrydssfr Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram CANCUN 222-Mic USB 2.0 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram CANCUN 222-Mic Specs | | | Converters | 24-bit - Frequency : 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz | | Audio Formats Support | PCM 8, 16, 20, and 24 bits, Full Duplex | | Latency | 3.4 mS Analog-to-PC or PC-to-Analog (Windows 7 / 64 bits)
3.8 mS Analog-to-MAC or MAC-to-Analog (Mac OS X 10.6.8) | | | | Analog Inputs | 2 Balanced Combo XLR/1/4" Mic/Line Inputs | | Digital Inputs | 1 AES/EBU (AES3-2003) Compliant | | Phantom Power | Switchable 48V: 7 mA Max on each input
USB slots may be necessary on certain hosts | | Input Gain | Analog: From 0 to 55 dB by 1 dB Steps; Switchable Pad 30.0 dB | | Input Sensitivity | 0 dBfs adjustable from -30 dBu to +25 dBu (Line) and -60 dBu to -5 dBu (mic) | | Maximum Input Level | Line: +25 dBu / >3.5 kΩ; Mic: -5 dBu / >2 kΩ | | Frequency Response | @ 48 kHz : 20 Hz to 20 kHz +0/-0.5 dB
@ 96 kHz : 20 Hz to 40 kHz +0/-0.6 dB
@ 192 kHz : 20 Hz to 80 kHz +0/-2.0 dB | | Signal to Noise Ratio | 108 dB Unweighted and 111 dBA @48 kHz (Analog Input, Typical) | | THD + N | -105 dB Unweighted and -107 dBA / 20 Hz to 20 kHz, @48 to 192 kHz ref 1 kHz at -3 dBfs | | Mic Input Noise (E.I.N.) | -128 dB / Zsource = 40Ω; Pad Off; Gain 55 dB | | | | Analog Outputs | 2 x Balanced Line (mono) | | Digital Outputs | 1x AES/EBU (AES3-2003) compliant (stereo) | | Maximum Output Level | At 48 kHz: +10 dBu / 2 x 33Ω | | Frequency Response | @ 48 kHz: 10 Hz-20 kHz +0/-0.1 dB
@ 96 kHz: 10 Hz-40 kHz +0/-0.3 dB
@ 192 kHz:10 Hz-80 kHz +0/-1.3 dB | | Signal to Noise Ratio | 111 dB Unweighted @48 kHz (analog output/typical) | | THD + N | -98 dB Unweighted / 20 Hz-24 kHz @48 kHz to 192 kHz, ref 1 kHz at -3 dBfs (analog output/typical) | | Headphone Output | Dedicated Output Stage, >10 mW from 32 to 600Ω
10 Hz-20 kHz +-0.1 dB; Dynamic Range : 93 dB @32Ω, Typical (stereo) | | | | Audio | 1 x XLR Female for Left Input Channel
25 pts (D-Sub) for all Analog and Digital I/Os
1 x 1/4" TRS Stereo Headphone Output
6 x Neutrik XLR on Breakout Cable (included) | | MIDI I/O | Available on 25 D-Sub connector | | USB | Standard, Includes Two A-Type on PC side, One Mini on Card Side | | | | Operating System Support | Windows 7, 32 and 64 bits; Windows XP; Mac OS X; Linux (available by software upgrade during roadmap development, 2012) | | Management | Depending on the host operating system's implementation of the USB Audio 2.0 specification: DirectSound, Core Audio, WASAPI
Digigram np SDK through Virtual PCX
Third-party ASIO driver | | USB | USB 2.0 / Compliant with the USB 2.0 Audio specification | | | | Operating Temperature / Humidity | 32 to 122° F (0 to +50°C ) / 0 to 90 % (non condensing) | | Dimensions | 10 x 3.8 x 1.4" (254 x 96 x 36 mm) | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 12.5 x 6.7 x 4.2" |
