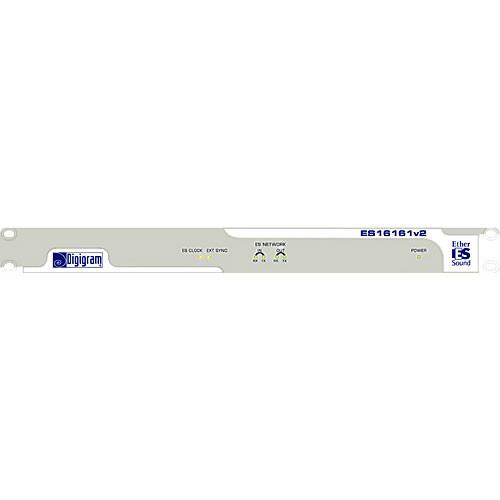

Product description The ES16161v2 from Digigram is an AES/EBU to EtherSound interface. The unit provides eight stereo inputs, and eight stereo outputs of AES/EBU digital audio into, and out of, an EtherSound network at 44.1 or 48kHz sampling rates. Compliant with EtherSound ES-100 Audio Transport protocol, the interface provides low-latency, synchronized, high-channel count, bi-directional audio and data transport over standard Ethernet networks. EtherSound is Digigram's simple and open standard for networking digital audio, using off-the-shelf Ethernet components. With its technical features, EtherSound is suited for any time-critical audio application requiring a large number of audio channels to be distributed in fields such as live sound, theater, or radio broadcast studios. Numerous interfaces are available for inserting and extracting audio at any point in various network topographies, allowing for fault tolerant topologies that guarantee uninterrupted audio distribution and user notification in case of one cable or device failure. All connectivity is achieved using one or more Cat-5 cables, thus cutting down on the usual clutter of cables required to achieve the same result with standard wiring. - AES/EBU to EtherSound interface
- Eight stereo AES/EBU inputs and eight stereo AES/EBU outputs on D-sub connectors
- Fully EtherSound ES-100 Audio Transport compliant
- Built-in hardware sample rate converters
- Additional control available through a standard RJ-45 Ethernet port
- Able to synchronize either from the network (44.1 or 48khz), using an internal clock (48khz) or via Wordclock or AES Input 1 (44.1 or 48khz)
- Includes an RS-232 port and eight GPIO ports
- Includes EScontrol management software for Windows
In the Box Digigram ES16161v2 - AES/EBU to EtherSound Interface AC Power Cable Counterparts for GPIO Terminal Blocks Software CD ROM One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram ES16161v2 - AES EBU to EtherSound Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram ES16161v2 Specs | ADC | Not applicable | | DAC | Not applicable | | Sample Rates | 44.1 and 48kHz (48kHz only using internal clock) | | Analog Inputs | Not applicable | | Analog Outputs | Not applicable | | Digital Inputs | 2 x 25-pin D-sub | | Digital Outputs | 2 x 25-pin D-sub | | Other Connectors | 2 x EtherCon (RJ-45 compatible)
1 x RJ-45 Ethernet Control
1 x DB9 RS-232
4 x Optocoupled inputs and 4 x Relay outputs on 8-point terminal blocks | | Word Clock | 2 x BNC Wordclock I/O | | Maximum Input Level | Not applicable | | Maximum Output Level | Not applicable | | Dynamic Range | Not applicable | | Frequency Response | Not applicable | | THD + N | Not applicable | | Dimensions | 19 x 11.7 x 1.75" (483 x 297 x 44mm) | | Weight | 6.85 lbs (3.1 kg) | | Specialties | GPIO and RS-232 ports can be managed by a remote computer | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 22.0 x 14.0 x 10.0" |
