User Manual for Digigram EtherSound Card for Studer D21m System Rack Click to enlarge the picture
Contents of the user manual for the Digigram EtherSound Card for Studer D21m
- Product category: Networked Audio Systems Digigram
- Brand: Digigram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digigram Networked Audio Systems
|
User manual for the Digigram EtherSound Card for Studer D21m contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digigram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digigram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digigram product will considerably shorten its lifespan!
|

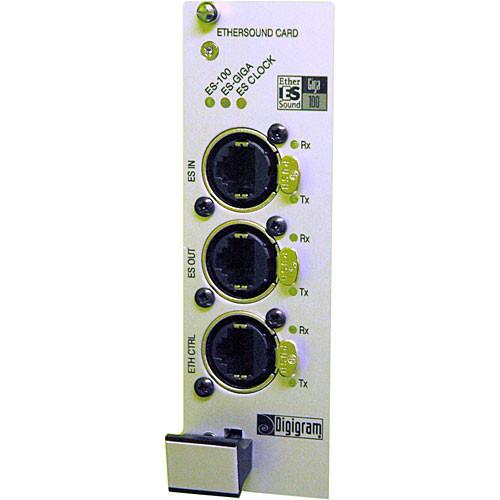

Product description The EtherSound Card for Studer D21m System Rack from Digigram allows connecting the D21m I/O System to an EtherSound network. Designed to fit into system rack for use with the Studer OnAir 3000 console, but also compatible with Studer flagship Vista series and routing systems, the card allows 128 audio channels (64 inputs/64 outputs) to be connected to the D21m via a single Cat-5 connection. One of the advantages of EtherSound in the Broadcast domain is its extremely low latency. Configuration of the EtherSound network is performed either through the ETH CTRL connector or from a remote location on the EtherSound network, e.g. using the EtherSound EScontrol software. ES-100 and ES-Giga functionality allow for designing daisy chain or redundant ring topologies, with the latter allowing for the network to remain uninterrupted should a cable be broken. The audio clock of the EtherSound network must be synchronous with the D21m I/O system's audio clock. This is ensured either by using the EtherSound card as clock source of the EtherSound network, or by feeding the device that is actually the EtherSound network clock source with a word clock synchronous with the D21m I/O system's audio clock. - Interface card for the Studer D21m System Rack
- ES-100 Audio Transport technology
- ES-Giga System Transport ready
- Daisy chain or star topologies
- Fault tolerant ring topology
- Control of the EtherSound network from any device
In the Box Digigram EtherSound Card for Studer D21m System Rack One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram EtherSound Card for Studer D21m System Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram VB1897A0101 Specs | Connectors | 2 x EtherCon (RJ-45 compatible)
1 x RJ-45 Ethernet Control | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 22.0 x 14.0 x 10.0" |
