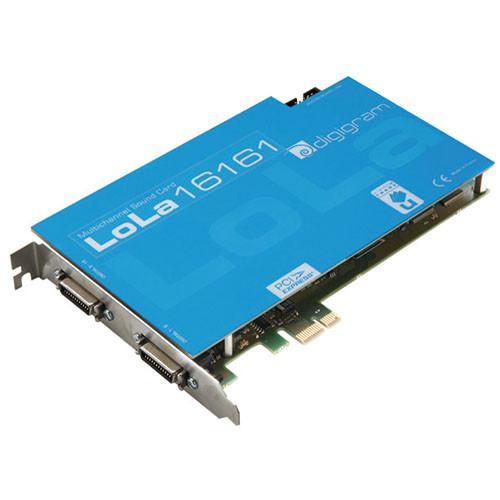

User Manual for Digigram LoLa16161 - PCIe Multi-Channel Digital Audio Card Click to enlarge the picture
Contents of the user manual for the Digigram LoLa16161 - PCIe Multi-Channel Digital
- Product category: Audio Interfaces & Systems Digigram
- Brand: Digigram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digigram Audio Interfaces & Systems
|
User manual for the Digigram LoLa16161 - PCIe Multi-Channel Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digigram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digigram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digigram product will considerably shorten its lifespan!
|
Product description The LoLa16161 from Digigram is a low-profile, PCIe (Express) card that provides 16 channels of digital input and output. The card is especially suitable for professional applications in broadcast (such as live-assist, multichannel playback, ingest), TV, studios and in any application where absolute quality and reliability are required. The card supports standard audio device drivers, including DirectSound WDM and ASIO and all connectors are available on two included 26-pin SCSI MDR breakout cables. - Short-length PCIe (PCI Express) card with 8 AES/EBU inputs and 8 AES/EBU outputs (8 channels)
- AES/EBU sync input (up to 192kHz in play and record)
- Wordclock I/O, AES clock input and PAL/NTSC video sync input
- Real-time, simultaneous record and playback in PCM 8-, 16-, 24-bits and 32-bit Float
- Superior frequency synthesis and clock jitter reduction through audio-specialized components
- Digigram's LoLa Manager application allows for easily configuring and controlling the boards
- Windows drivers include WDM DirectSound and ASIO
- Connectors on included breakout cables
In the Box Digigram LoLa16161 - PCIe Multi-Channel Digital Audio Card 2 x Breakout Cables One (1) Year Warranty User Manual PDF 778.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram LoLa16161 - PCIe Multi-Channel Digital Audio Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram LoLa16161 Specs | Format | Universal PCIe
Supported audio formats: PCM 16-, 24-, 32-bits, Float IEEE754
Hardware Mixer: 32-bit Float | | Converters | 24-bit | | Sample Rates | Programmable from 32kHz to 192kHz | | Analog Inputs | No | | Analog Outputs | No | | Digital Inputs | 1 x 8 XLR AES/EBU (on 2 breakout cables) | | Digital Outputs | 1 x 8 XLR AES/EBU (on 2 breakout cables) | | Other Connectors | 2 x 26-pin SCSI MDR
2 x BNC Wordclock I/O
1 x XLR AES11 Synchronization
1 x BNC Video Sync Input | | MIDI In/Out | No | | Sync In/Out | AES/EBU inputs
Wordclock I/O
AES Clock Input
1 x BNC Video Sync Input | | Headphone Output | No | | Operating Temperature | 0°C/+50°C
5%/90% humidity | | Power Requirements | +3.3V/+12V, 0.8A/0.5A | | Minimum System Requirements | CPU power and memory required depend on the operating system and the audio application used
One free PCIe slot
Windows XP/Server 2003, 2008, Vista, or Windows 7
ASIO and DirectSound supported | | Specialties | PCI Express (PCIe) x1 and x2, x4, x8, x16, x32 compatible | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 12.6 x 5.7 x 4.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
