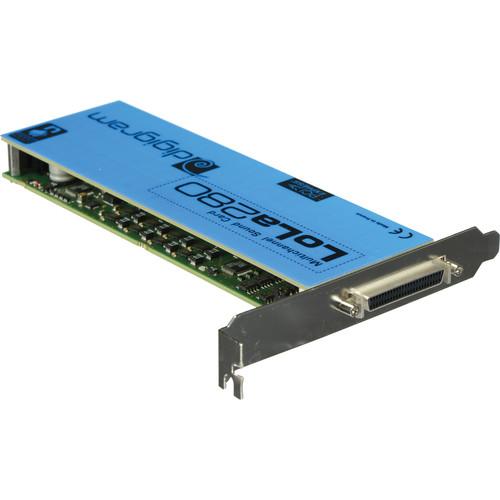

User Manual for Digigram LoLa280 - PCIe Multi-Channel Digital Audio Card Click to enlarge the picture
Contents of the user manual for the Digigram LoLa280 - PCIe Multi-Channel Digital
- Product category: Audio Interfaces & Systems Digigram
- Brand: Digigram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digigram Audio Interfaces & Systems
|
User manual for the Digigram LoLa280 - PCIe Multi-Channel Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digigram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digigram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digigram product will considerably shorten its lifespan!
|
Product description The LoLa280 from Digigram is a low-profile, PCIe (Express) card that provides 8 channels of analog line input, while simultaneously outputting 2 channels of analog audio. Specially suitable for courtroom and evidence recording, or broadcast logging, the card includes an integrated mixer that allows for pre-mixing channels and direct, low-latency monitoring. The mixer features automatic gain control (AGC) on all inputs, while the card supports standard audio device drivers, including DirectSound WDM and ASIO. All connectors are available on an included 50-pin SCSI breakout cable. - Low-profile PCIe (PCI Express) card with 8 analog mono inputs and 2 analog mono outputs, all on XLR connectors
- Maximum level on analog inputs and outputs +24dBu
- Real-time, simultaneous record and playback in PCM 16-, 24- and 32-bits
- On-board DSP mixer with automatic gain control (AGC) and channel summing
- Windows drivers include WDM DirectSound and ASIO
- "visiblu" (Network Audio Operating System from Digigram) ready for wide area network encoding and processing
- Connectors on included breakout cable
In the Box Digigram LoLa280 - PCIe Multi-Channel Digital Audio Card Breakout Cable Software CD-ROM One (1) Year Warranty User Manual PDF 954.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram LoLa280 - PCIe Multi-Channel Digital Audio Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram LoLa280 Specs | Format | Universal PCIe | | Converters | 24-bit | | Sample Rates | Programmable from 22.05kHz to 192kHz | | Analog Inputs | 8 x XLR (on included breakout cable) | | Analog Outputs | 2 x XLR (on included breakout cable)
1 x 1/8" stereo mini Headphone Using outputs in unbalanced mode is not recommended due to the level loss of 6dB, and the heating of the card due to power overconsumption | | Digital Inputs | No | | Digital Outputs | No | | Other Connectors | On card:
50-pin SCSIOn included breakout cable:
2 x BNC Wordclock I/O | | MIDI In/Out | No | | Sync In/Out | Wordclock I/O | | Headphone Output | Yes | | THD + N | Input: <-97dB, 1kHz @ -2.0dBfs
Output: <-87dB, 1kHz @ -2.0dBfs | | Dynamic Range | Input: >100dB, A-weighted
Output: >97dB | | Frequency Response | 20Hz to 20kHz, +0.1dB/-0.3dB (@48kHz)
20Hz to 40kHz, +0.1dB/-0.6dB (@96kHz) | | Minimum System Requirements | CPU power and memory required depend on the operating system and the audio application used
One free PCIe slot
Windows XP/Server 2003, 2008 and Vista | | Specialties | PCI Express (PCIe) x1 and x2, x4, x8, x16, x32 compatible | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.6 x 5.7 x 3.4" |
