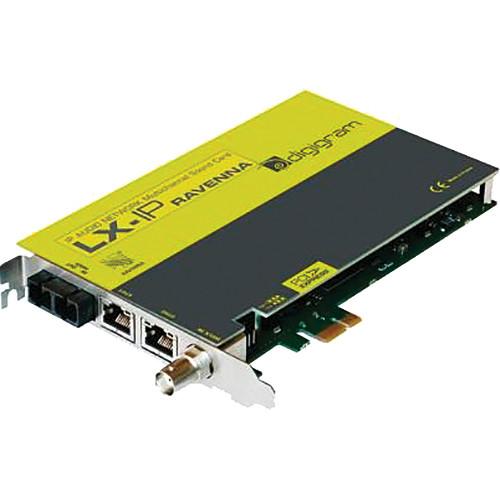

Product description The LX-IP RAVENNA PCIe Sound Card from Digigram is an audio-over-IP sound card, which enables you to simultaneously record and play up to 128 input and 128 output channels respectively. The card bridges professional audio software applications to the ultra-low latency, high-precision clock management of the RAVENNA synchronous audio-over-IP network, in full compliance with AES 67 interoperability recommendations. - Provides 128 input and 128 output channels on dual LAN interface
- Provides 64 Record and 64 Play channels on PCIe bus
- Ultra-low latency down to 1.2 ms round trip
- Packet size from 128 down to 1 audio sample per RAVENNA packet
- Fully compliant with AES67 interoperability recommendations
- Full LAN redundancy through double Gigabit Ethernet connection
- Zero delay embedded routing matrix for RAVENNA / PC channels
- Performance maintained regardless of the computational load of other applications running on the host system
- Applications include distribution between studios & production, connection with venue / event installations, use in live sound & fixed installations, and more
In the Box Digigram LX-IP RAVENNA PCIe Sound Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram LX-IP RAVENNA PCIe Sound Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram LX-IP RAVENNA Specs | Connectors | 2 x RJ45, Gigabit Ethernet ports for RAVENNA In/Out (dual port or Primary/Back up mode)
1 x BNC, Word Clock in | | Bus | 1 x PCI Express (compatible x1, x4, x8, x16 slots) | | Input & Output | 128/128 x RAVENNA input/output channels (mono) @ 44.1 kHz or 48 kHz (64/64 I/O channels per Ethernet port) | | Packet Size | 1 to 128 audio samples per RAVENNA packet | | Compliance | AES 67 (excepted SIP) | | Supported Audio Formats | Payload Formats: PCM16 / PCM24 / PCM32 / AM824 (PCM24+AES3 channel status) | | Digital Play/Record | 64/64 simultaneous mono channels to/from PC | | Word Clock | TTL input, impedance selectable by jumper (75 ohms / HighZ) | | Clock Sources | PTPv2 (IEEE1588-2008) from network, internal clock, or Word Clock
Local clock eligible as GrandMaster PTP
Local Clock Precision: Better than 10 ppm | | Sampling Frequencies | From Local Clock: 44.1, 48 kHz
From Network or Word Clock: 44.1, 48 kHz | | Control | HTTP (web pages from embedded server)
EMBER+ | | Routing | Zero latency on-board routing matrix between RAVENNA and PC Rec/Play | | Latency | 1.2 ms, round trip (excluding IP network) | | Supported Operating Systems | Windows 10, 8 & 7 32/64 bits
Windows server 2003/2008
Linux | | Drivers | ASIO, WASAPI / low latency WDM DirectSound, ALSA | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 23 to 158°F (-5 to 70°C) | | Humidity (Non-condensing) | Operating: 5 / 90%
Storage: 0 / 95% | | Power | @ +3.3 VDC: 0.4 A
@ +12 VDC: 0.12 A | | Dimensions | 4.4 x 6.6 x 0.8" (111.2 x 167.7 x 20.0 mm) | | | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 2.0" |
