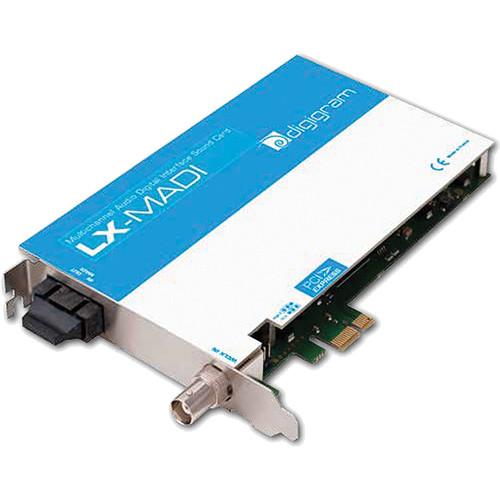

Product description The LX-MADI PCIe MADI Sound Card from Digigram is designed for use in high-density audio production and automation applications. This sound card enables you to use PC-based digital audio workstations with automation systems and legacy synchronous AES10 standard MADI audio. It features a MADI optical port for 64 input / 64 output simultaneous channels and has a low latency of down to 1.2 ms for a round trip. - MADI optical port for 64 input / 64 output simultaneous channels
- Low latency down to 1.2 ms round trip
- Performance unaffected by other applications running on the host system
- Applications include distribution between studios and production, connection with venue / event installations, and use in live sound & fixed installations, central facilities, production studios, mobile studios / OB vans, and more
In the Box Digigram LX-MADI PCIe MADI Sound Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram LX-MADI PCIe MADI Sound Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram LX-Madi Specs | Bus | 1 x PCIe | | Connectors | 1 x Optical, MADI in/out
1 x BNC, word clock in/out | | MADI | 64/64 inputs/outputs, mono, @ 48 kHz
56/56 inputs/outputs @ 48 kHz
32/32 inputs/outputs @ 96 kHz | | Word Clock I/O | TTL input, 75 ohms/HighZ, selectable by jumper
TTL output, 75 ohms, max. 5 Vpp | | Clock Sources | Internal, word clock, or MADI input
Local Clock Precision: > 10 ppm | | Sampling Frequencies | From Local Clock: 44.1, 48, or 96 kHz
From Word Clock: 44.1, 48, or 96 kHz
From MADI: 44.1, 48, or 96 kHz | | Latency | 1.2 ms, round trip | | Supported Operating Systems | Windows 10, 8, and 7 (32/64 bits)
Windows server 2003/2008
Linux | | Drivers | ASIO, WASAPI / low latency WDM DirectSound, ALSA | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 23 to 158°F / -5 to 70°C | | Humidity (Non-condensing) | Operating: 5 / 90%
Storage: 0 / 95% | | Power Requirements | @ +3.3 VDC: 0.4 A
@ +12 VDC: 0.12 A | | Dimensions | 6.7 x 3.9 x 0.8" / 169 x 99 x 20 mm | | | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 2.0" |
