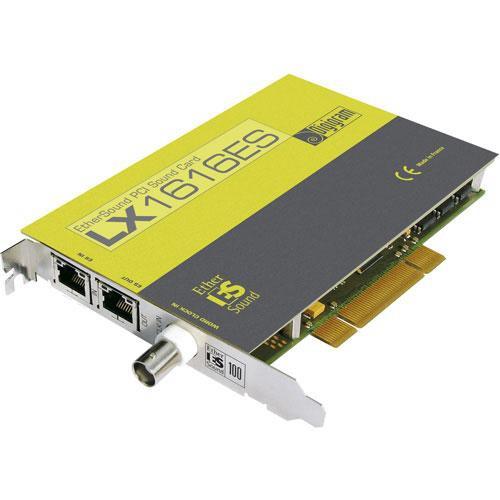

User Manual for Digigram LX1616ES 32 Channels - PCI Network Sound Card Click to enlarge the picture
Contents of the user manual for the Digigram LX1616ES 32 Channels - PCI
- Product category: Audio Interfaces & Systems Digigram
- Brand: Digigram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digigram Audio Interfaces & Systems
|
User manual for the Digigram LX1616ES 32 Channels - PCI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digigram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digigram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digigram product will considerably shorten its lifespan!
|
Product description The LX1616ES 32 Channel from Digigram is a short-form PCI network sound card that can transmit and receive up to 32 EtherSound channels to/from a computer-based audio application and an EtherSound network, utilizing DirectSound and ASIO drivers. The card is a good choice where direct-to-disk applications need to play and/or record selected ES-100 audio channels in a flexible manner. Examples of applications for Broadcast organizations include multi-channel live-assist, splitting and on-the-fly localization of programs, logging, linking from computer-based call management systems to EtherSound-equipped digital mixing console, and more. The LX1616ES also provides the perfect solution for logging applications such as in a courtroom installation or government building where there is a need to record many channels from different rooms across the building connected via an EtherSound network. For hotels, conference centers and other multi-room venues, the card offers the ability to play back 16 stereo music programs from a single PC. In a live environment, the capacity to receive up to 32 channels from an EtherSound-ready mixing console and record them straight onto a computer's hard disk for mix down at a later date, offers a highly cost-effective solution for multi-channel recording. - Short length PCI card for linking a computer directly to an EtherSound network using standard drivers
- 32 EtherSound channels for both input and output
- Supports PCM 24-bit digital audio @ 44.1/48kHz, with reduced track count at higher sampling rates
- Low-latency DirectSound and ASIO drivers
In the Box Digigram LX1616ES 32 Channels - PCI Network Sound Card Software CD-ROM One (1) Year Warranty User Manual PDF 602.2kbbcveaduzrssxatvqyvtzbyyqsu Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram LX1616ES 32 Channels - PCI Network Sound Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram LX1616ES Specs | ADC | Not applicable | | DAC | Not applicable | | Sample Rates | 44.1, 48, 88.2, 96, 176.4 and 192kHz | | Other Connectors | 2 x RJ45 | | Word Clock | 1 x BNC input (44.1 or 48kHz) | | Dimensions | 6.89 x 3.90 x 0.78" (175 x 99 x 20mm) | | Weight | Not specified by manufacturer | | Specialties | Supports low-latency WDM DirectSound, ASIO, and Wave (all PCM only) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 2.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
