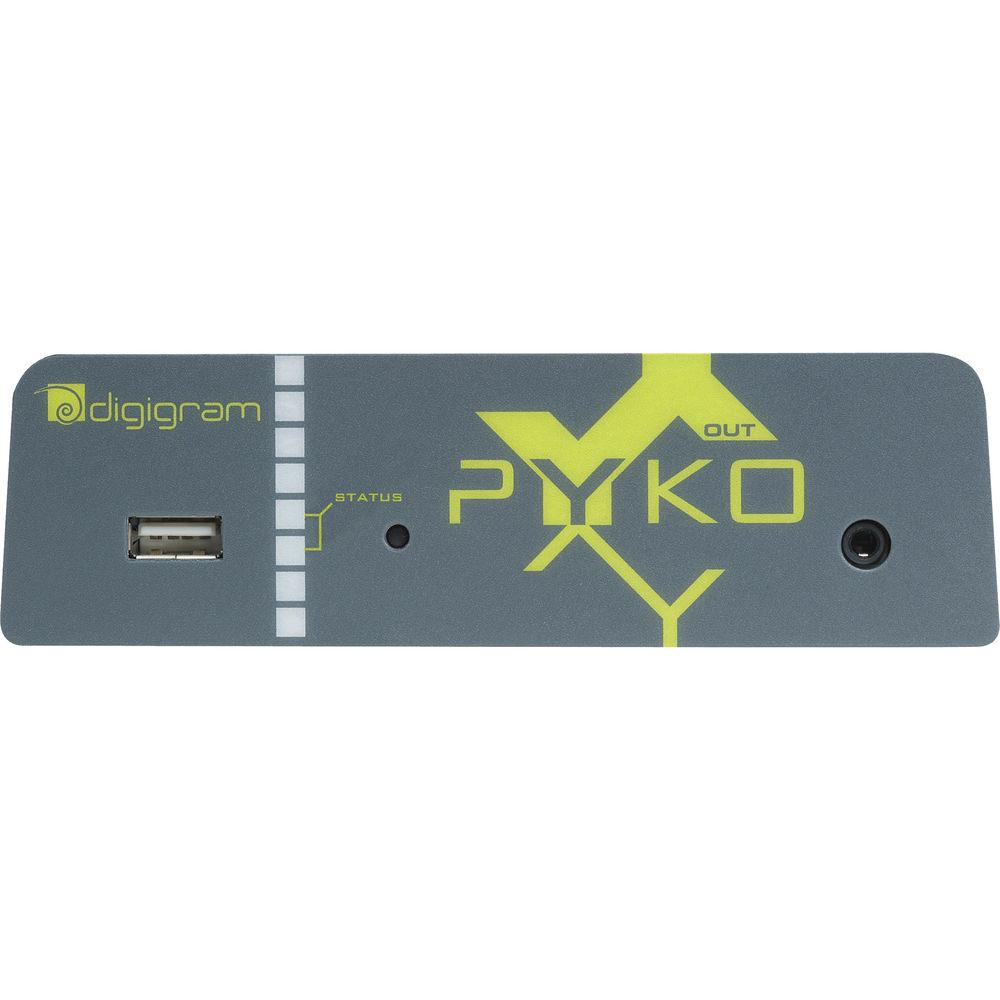

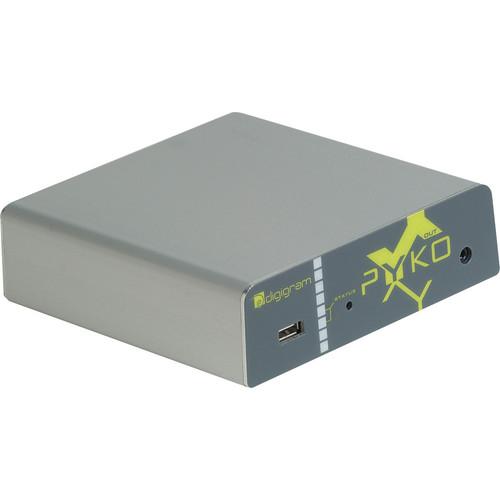

Product description The PYKO-Out Audio Endpoint from Digigram plays audio from standard MP3 or PCM IP streams or locally stored MP3 files. Together with Digigram Audio Manager software, PYKO IP-based network audio terminal enables designing fully managed audio distribution solutions. - PCM or MP3 on standard RTP/UDP streaming
- Compact, yet robust, rack-mountable module and rail-din adapter
- Balanced audio I/Os on terminal block connectors, +18 dBu max levels
- 8 GPIOs and RS232 for advanced features such as transmitter-side controls or RDS transport
- Internal and external USB host ports
- Internal & external USB memory for backup audio file and playlist storage
- Applications
- Transport: A controlled system linking the central station to other stations
Background Music: Playing audio from a PC, a PYKO IN or a USB memory card
Paging & Commercial Audio: Museums, hotels, airports (with AudioManager: event, scheduling, announcement management)
Streaming Applications: mp3/PCM studio to transmitter audio distribution
Broadcast: Endpoints for intranet audio distribution
Webcasting & In-store Music: Webcast application thanks to Shoutcast, Icecast streaming (internet radio) In the Box Digigram PYKO-Out Audio Endpoint Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram PYKO-Out Audio Endpoint in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram PYKO Specs | | | Line Outputs | 1 x stereo
1 x mono (full duplex) | | Maximum Input Level | +4 / +18 dBu
Stereo +4 / +18 dBu / < 100 Ω | | Frequency Response | 0/-2 dB (20 to 20,000 Hz) | | THD + Noise | < - 84dB @ -2 dBFS (20 to 20,000 Hz) | | SNR | <- 98 dB (20 to 20,000 Hz) | | Headphone Output | 1 x 3.5 mm jack | | | | Ethernet | 10/100 Mbit Ethernet (RJ45) | | RS232 | D-sub 9-pin male | | USB | USB1.1 interface for memory key (FAT16) FAT 16 feature is firmware dependent. | | GPIO | 4 GPO, 4 independent contact relay, 4 GPI, TTL input 5 V / 5 mA over voltage and EMC protections | | | | Stream Type | IP (RTP, Shoutcast, Icecast) Shoutcast and Icecast are firmware dependent software. | | Audio | MP3 (variable bit rates up to 192 kBit)
MP3 (variable bit rates up to 320 kBit)
G.711(μLaw/aLaw at 8 kHz, PCM (16 bit at 8 to 48 kHz) | | Management | Audio-Manager, html pages via built in web server | | Network Protocols | http Web Server: For easy management via personalized web interface, TCP/UDP commands to control the device through the network SNMP: enables PYKO to be networked managed in very large systems DHCP, DNS, IGMP | | Power Supply | 24 VDC +/-20% | | Temperature | 32 to 131°F (0 to 55°C) | | Relative Humidity | 0 to 70% non-condensing | | Size | 5.5 x 1.6 x 5.7" (140.0 x 41.0 x 145.0 mm) | | Weight | 16.8 oz (477.0 g) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.9 x 6.7 x 2.2" |
