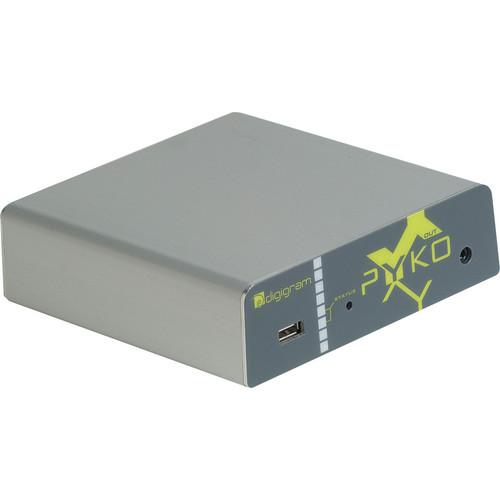

Product description The Digigram PYKO-Out Professional IP Audio Endpoint plays audio from standard MP3 or PCM IP streams or locally stored MP3 files. Together with the Digigram Audio Manager Software, PYKO IP-based network audio terminals enable designing of fully managed audio distribution solutions for transportation, industrial, background music, paging, and broadcast-related pro audio applications.The pre-installed Audio Manager Software makes planning, deploying, and managing your network audio system easy. The Audio Manager’s core engine is based on the Visiblu Network Audio Operating System. It can mix and manage IP sources, EtherSound channels, analog sources, audio files, events, and schedules with ease. It also provides processing and mixing points within the network, such as mixing announcements with background music. - Compact yet robust rack-mountable module with a rail-din adapter
- Typical Applications: Transport, background music, paging and commercial audio, streaming, broadcast, Web casting, and in-store music
- Balanced audio I/Os on terminal block connectors, maximum +18 dBu levels
- Line level stereo output on terminal block
- Internal USB port (exclusive of the front panel USB port)
- An RJ-45 port and an RS-232 port
- 4/4 GPIOs on terminal block
- Remote control and management through .html pages, Audio Manager software, or EScontrol software (EtherSound mode)
UPC: 851276002553 In the Box Digigram PYKO-Out Professional IP Audio Endpoint 2 x Rail-Din Adapter Counterpart for Power Connector Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram PYKO-Out Professional IP Audio Endpoint in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram PYKO-OUT-PNP Specs | | | Line Output | Analog: 1 stereo | | Maximum Output Level | 4 to 18 dBu | | Impedance | < 100 Ω | | Frequency Response | 0 /-2 dB, 20 to 20,000 Hz | | THD & Noise | <- 84 dB @ -2 dBFS, 20 to 20,000 Hz | | SNR | <- 98 dB, 20 to 20,000 Hz | | Headphone Output | 1 x 3.5 mm jack | | | | Audio | 2 x 3 pins on terminal block | | Ethernet Port | 1 x RJ-45 10/100 M-bit | | Serial Port | 1 x RS-232 on DB9 | | USB | USB 1.1 interface for memory stick (FAT16; firmware-dependent feature)
1 port on front panel and 1 internal port | | GPIO | 4 GPIs compatible TTL
4 relay GPOs on 2 x 8 pins on terminal block | | | | Sampling Frequencies | Programmable from 8 to 48 kHz | | Converter | A/D and D/A Converter Resolution: 24 bit | | Supported Audio Formats | PCM (16-bit) | | | | Frequency Response | At 48 kHz: 20 Hz to 20 kHz: +0 /-2 dB (play) | | Phase | Channel Phase Difference (20/20 kHz): <0.2 / 2° | | Analog Outputs | Dynamic Range (A-weighted): >102 dB
THD + noise 1 kHz at -2 dBfs: <-84 dB | | Crosstalk | Analog In or Out
1 kHz at 18 dBu: <-90 db
15 kHz at 18 dBu: <-110 db Measurements done at Fs = 48 kHz, unless stated otherwise, with filter in the 22 Hz to 22 kHz range | | | | Formats | Stream & Audio: IP (RTP, SHOUTcast, IceCast)
MP3 (variable bit rate up to 320 kBit/s)
G.711 (μLaw/aLaw at 8 kHz)
PCM (16 bit at 8 up to 48 kHz) SHOUTcast and IceCast are firmware-dependent features | | Management Protocols | Management Network Protocols:
Audio-Manager, html pages via embedded Web server
http Web Server: Personalized Web interface for flexible management
UDP Client / Server: To send / receive network commands
SNMP: Enables PYKO to be managed over the network in very large systems DHCP, DNS, IGMP | | | | Power Supply | 24 VDC, ±20% | | Power Requirements | At 24 V: 0.04 A | | Temperature | Operating: 32 to 113°F (0 to 45°C)
Storage: 23 to 158°F (-5 to 70°C) | | Humidity (Non-condensing) | Operating: 0 to 70%
Storage: 0 to 95% | | Size | 1/3" 1U rack
5.51 x 1.61 x 5.71" (140.00 x 41.00 x 145.00 mm) | | Weight | 1.05 lb (0.48 kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 7.7 x 6.5 x 3.4" |
