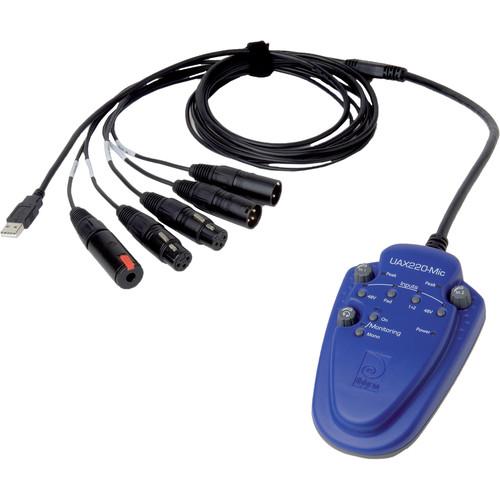

User Manual for Digigram UAX220v2 - USB 1.1 Audio Interface Click to enlarge the picture
Contents of the user manual for the Digigram UAX220v2 - USB 1.1 Audio
- Product category: Audio Interfaces & Systems Digigram
- Brand: Digigram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digigram Audio Interfaces & Systems
|
User manual for the Digigram UAX220v2 - USB 1.1 Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digigram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digigram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digigram product will considerably shorten its lifespan!
|
Product description The UAX220v2 from Digigram is a USB, 2 channel, line digital audio interface that can be used with both USB 1.1 and 2.0 ports (performance will be based on USB 1.1 regardless of type used). The unit can be switched between either a laptop computer for portable use, or plugged into a desktop computer in the studio or broadcast facility, allowing for very flexible use.The interface is automatically recognized by the host software as soon as it is plugged in, obviating the need for additional drivers installation. The captive cable provides XLR connectors for the inputs and outputs, which can operate balanced or unbalanced. The UAX220v2 is USB bus powered and does not require any external power supply. - 2 input, 2 output USB 1.1 audio interface
- Switchable zero-latency direct hardware monitoring of the inputs or the outputs
- Input monitoring can be switched to mono mode
- XLR connectors on captive breakout cable
- Stereo headphone output on 1/4" TRS jack with rotary control for volume adjustment
- A/D and D/A conversions at up to 24-bits/48kHz resolution
- Plug-and-play operation with no additional drivers needed to be installed
- Supports DirectSound, Core Audio, ALSA, along with Digigram np SDK through Virtual PCX and third-party ASIO drivers
In the Box Digigram UAX220v2 - USB 1.1 Audio Interface Carrying Case One (1) Year Warranty User Manual PDF 881kbcwuqqbteutfbdubywsbyzvct Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram UAX220v2 - USB 1.1 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram UAX220v2 Specs | Converters | 24-bit | | Sample Rates | 32, 44.1 and 48kHz | | Analog Input | 2 x XLR Line on breakout cable (balanced or unbalanced) | | Analog Output | 2 x XLR Line on breakout cable (balanced or unbalanced)
1 x 1/4" TRS phone Headphone | | Digital Input | No | | Digital Output | No | | MIDI In/Out | No | | Sync In/Out | Not applicable | | Headphone Output | Yes | | THD + N | Input: <-98dB
Output: <-97dB | | Dynamic Range | Input: >104dB, A-weighted
Output: >104dB, A-weighted | | Frequency Response | 20Hz to 20kHz, +/-0.2dB | | Power Requirements | USB bus | | System Requirements | Mac:
PowerMac G3, G4 or G5
OS X
256MB RAM or more depending on operating system
Free USB 1.1 portPC:
Pentium III (or equivalent)
Windows XP or Linux
256MB RAM
Free USB 1.1 port | | Specialties | Integrated USB cable
Does not need special drivers | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 12.7 x 5.7 x 3.9" |
