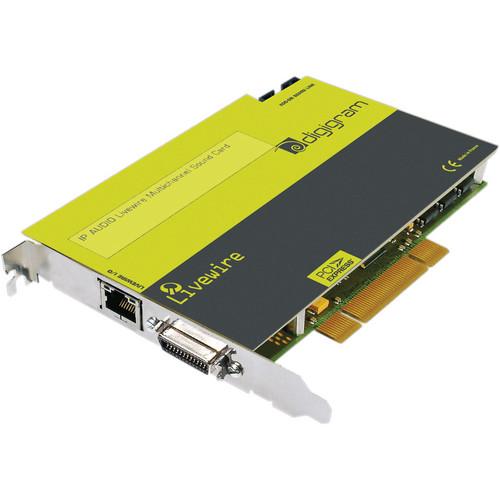

User Manual for Digigram VX-IP LW1221e - IP Audio Network Multi-Channel Sound Card Click to enlarge the picture
Contents of the user manual for the Digigram VX-IP LW1221e - IP Audio
- Product category: Audio Interfaces & Systems Digigram
- Brand: Digigram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digigram Audio Interfaces & Systems
|
User manual for the Digigram VX-IP LW1221e - IP Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digigram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digigram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digigram product will considerably shorten its lifespan!
|
Product description The VX-IP LW1221e from Digigram is a PCIe (Express) soundcard that is a bridge between Radio Automation and Axia Livewire networking audio systems. Livewire is technology invented at Telos to convey low-delay and high-reliability audio over switched Ethernet.
When connecting a Radio Automation System to an Axia console, a dedicated hardware soundcard is a must for mission critical low latency audio delivery and instant fader start. - PCIe (Express) sound card with 2 mono inputs and 12 mono outputs
- Ultra-low latency (ASIO 5 mS, WASAPI 10 mS)
- Card is seen as a Livewire node from Axia network
- 5/5 physical GPIOs, compatible with Axia GPIO node
- Management of virtual GPIOs on a Livewire network
- Initialisation and management from Pathfinder Management System
- Clock precision from Livewire network
- Full compatibility with Windows and Digigram np drivers
- On-board PCM and MPEG processing with Digigram np SDK:
•PCM MixingPCM and MPEG Mixing, PCM and MPEG layers I and II Playback + Rec, Fade-in/fade-out
•MPEG layer III Playback
•Time-scaling
•Pitch shifting
•Format conversions
•Fade-in/fade-out
•Maximizer and 3-band parametric EQ
•Scrubbing
•Playback frequency conversion In the Box Digigram VX-IP LW1221e - IP Audio Network Multi-Channel Sound Card Software CD-ROM One (1) Year Limited Warranty User Manual PDF 2.8mbczcawssrxbzbcwfdbq Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram VX-IP LW1221e - IP Audio Network Multi-Channel Sound Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram VX-LW1221e Specs | Configuration | Bus Format
PCI Express (PCIe x1) (x2, x4, x8, x16 compatible)
Operating Temperature
32 to 122°F (0 to 50°C)
Operating Humidity (Non-Condensing)
5 to 95%
Storage Temperature
23 to 158°F (-5 to + 70°C)
Storage Humidity (Non-Condensing)
0 to 95% | | Inputs and Outputs | Livewire Input Mono Channels
2
Livewire Output Mono Channels
12
Programmable Input/Output Digital Gain
-110 dB to +18 dB
General Purpose Inputs and Outputs
5 | | Connectors | Ethernet
RJ-45
GPIO
15-pin D-Sub | | Sampling Frequency | 48 kHz | | Support | Digigram Management
np SDK (PCM only)
Other APIs
DirectSound, DirectKS (PCM)
ASIO (PCM)
Wave (PCM)
Operating Systems
Windows XP, Windows Server 2003, Windows Server 2008, Windows 7, Windows 8 | | Power Requirements | +3.3 / +5 / +12 / -12V
2.5 / 0 / 0.1 / 0 A | | Dimensions | 6.6 x 4.4 x 0.8" (168 x 111 x 20 mm) |
