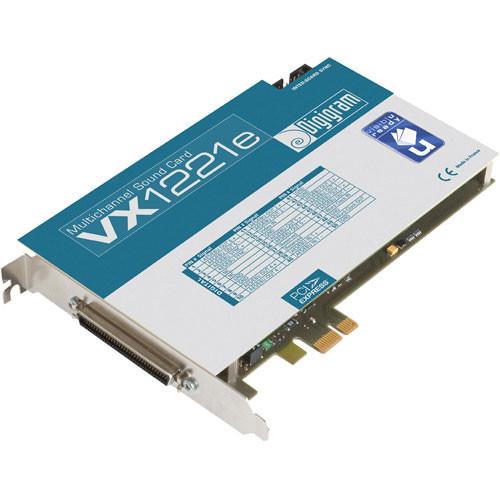

Product description The VX1221e from Digigram is a PCIe (Express) card that provides 2 channels of digital audio input, while simultaneously outputting 6 stereo pairs of digital output. The card is especially useful for broadcast (linear-audio) live-assist systems, providing excellent audio performance with pristine sound quality, and the ability to perform 24/7 in the demanding broadcast environment. Comprehensive synchronization options include AES/EBU input, Wordclock I/O, video sync and LTC input. The card is "visiblu" ready (a technology based on Digigram's Network Audio Operating System) and provides low-latency, wide area network (WAN) encoding and processing, whether the assets are located next door or hundreds of miles away. The VX1221e is the perfect solution for professional users working with software based on standard WDM DirectSound, ASIO, WAVE, or Digigram np interfaces. All connectors are available on an included 62-pin D-Sub breakout cable. - PCIe (PCI Express) card with a single stereo digital input and 6 stereo outputs
- On-board DSP with large processing headroom, designed for 24/7 heavy-duty applications
- Real-time, simultaneous PCM record and playback (8-, 16- and 24-bits)
- Includes AES/EBU sync input, along with Wordclock I/O, Video Sync and LTC input
- Hardware sample rate converter for recording of a digital signal with a sample frequency that is different from the internal clock
- Comprehensive set of Windows drivers including Digigram np, WDM DirectSound,Wave and ASIO
- "visiblu" (Network Audio Operating System from Digigram) ready for wide area network encoding and processing
- Connectors on included breakout cable
In the Box Digigram VX1221e - PCIe Digital Audio Card 2-Meter Breakout Cable Software CD-ROM One (1) Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram VX1221e - PCIe Digital Audio Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram VX1221e Specs | Format | Universal PCIe | | Converters | Not applicable | | Sample Rates | Programmable from 22.05kHz to 192kHz | | Analog In | No | | Analog Outputs | No | | Digital Input Connectors | 1 x XLR AES/EBU (on included breakout cable) Can function as S/PDIF | | Digital Output Connectors | 6 x XLR AES/EBU (on included breakout cable) Can function as S/PDIF | | Other Connectors | On card:
68-pin SCSI MDROn included breakout cable:
1 x XLR/F AES Sync In
2 x BNC Wordclock I/O
1 x BNC Video In
1 x RCA coaxial LTC In | | MIDI In/Out | No | | Sync In/Out | AES/EBU In
Wordclock I/O
Video Sync In
LTC In | | Headphone Output | No | | THD + N | Not applicable | | Dynamic Range | Not applicable | | Frequency Response | Not applicable | | Minimum System Requirements | CPU power and memory required depend on the operating system and the audio application used
One free PCIe slot
Windows XP/Server 2003 and Vista | | Specialties | PCI Express (PCIe) x1 and x2, x4, x8, x16, x32 compatible | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 14.0 x 6.0 x 4.0" |
