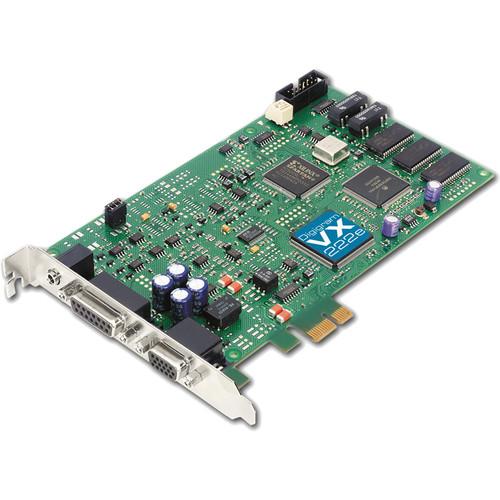

Product description The VX222e Linear Sound Card from Digigram is the PCI Express version of the VX222HR sound card. The card has a low-latency HR driver package, and is suitable for broadcast, production, or voice-over recording. The VX222e card features 24-bit/192 kHz converters, a three-band parametric EQ and maximizer, and +24 dBu maximum analog signal levels. - 24-bit / 192kHz AD/DA converters
- +24 dBu maximum analog signal levels
- Three-band parametric EQ and maximizer
- LTC input and inter-board Synchronization inputs
- Native, low-latency HR driver package with WDM DirectSound, ASIO, Wave, and driver for Digigram SDK
- DirectSound driver signed by Microsoft Windows Hardware Quality Labs
In the Box Digigram VX222e PCI Express Version of VX222HR Linear Sound Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram VX222e PCI Express Version of VX222HR Linear Sound Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram VX222E Specs | Bus | PCI Express X1 (compatible with X1, X2, X4, X8, X12, X16, X32 slots) | | Digital Signal Processing (DSP) | Motorola 56303 at 100 MHz | | RAM | 128 kWords | | Line Level | Maximum Input Level: +24 dBu
Maximum Input Impedance: <10 kohms
Maximum Output Level: +24 dBu
Maximum Output Impedance: <100 ohms | | Digital Inputs | 1 AES/EBU | | Output/Input Gain | Analog and digital, programmable | | Sample Rate Converter | Hardware: No | | AES/EBU | Sync Input: No | | Synchronization | AES11: Yes | | Sampling Frequencies | Programmable from 8 to 192 kHz | | A/D and D/A Conversion | 24 bits | | Supported Audio Formats | PCM (8, 16, 24 bits), Float IEEE754 | | Connectors | 1 x Internal Inter-board synchronization
1 x 15-pin Sub-D, analog
1 x 15-pin Sub-D, digital I/Os, Sync and GPIO
1 x 1/8" TRS phone jack female, headphones output | | Frequency Response | Record + play:
48 kHz: 20 Hz - 20 kHz: +0 /-0.3 dB
96 kHz: 20 Hz - 40 kHz: +0 /-0.4 dB
192 kHz: 20 Hz - 80 kHz: +0 /-1.1 dB | | Differential Phase | <0.2°/2° (20 Hz - 20 kHz) | | Dynamic Range | Analog Input: >104 dBA, A-weighted
Analog Output: >106 dBA, A-weighted | | THD & Noise | 1 kHz at -2 dBfs:
Analog Input: <-97 db
Analog Output: <-95 dB | | Crosstalk | Analog input or output:
1 kHz at +24 dBu: <-115 db
15 kHz at +24 dBu: <-100 dB | | Supported Operating Systems | Windows Vista, 2000, XP (32 bit), and Windows 2003 (32 bit) Server | | Environment | Digigram Management: np SDK (HR runtime, PCM only)
Other Management: Wave, ASIO, DirectSound (all PCM only) | | On-Board Processors | Features: Direct monitoring, real-time mixing, level adjustment, 3-band parametric equalizer, maximizer, panning, cross-fade, punch-in/punch-out, scrubbing | | Temperature | Operating: 32 to 122°F (0 to 50°C), Humidity: 5 - 90%, non-condensing
Storage: 23 to 158°F (-5 to 70°C), Humidity: 0 - 95%, non-condensing | | Power Requirements | 1 A, +3.3 V
0.2 A, +12 V | | Dimensions | 6.6 x 3.9 x 0.8" (16.8 x 9.9 x 2.0 cm) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.0 x 5.5 x 3.5" |
