User Manual for Digigram VX222HR High Resolution Linear Sound Card Click to enlarge the picture
Contents of the user manual for the Digigram VX222HR High Resolution Linear Sound
- Product category: Audio Interfaces & Systems Digigram
- Brand: Digigram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digigram Audio Interfaces & Systems
|
User manual for the Digigram VX222HR High Resolution Linear Sound contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digigram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digigram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digigram product will considerably shorten its lifespan!
|

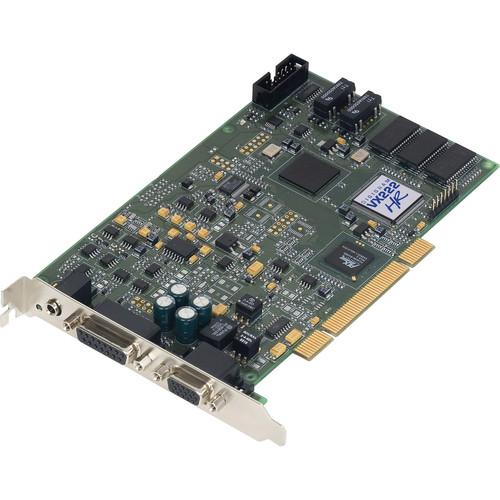

Product description The VX222HR Linear Sound Card from Digigram is a versatile sound card for PCI and PCI-X interfaces. The balanced analog and digital AES/EBU inputs/outputs card has a comprehensive set of drivers, and is suitable for broadcast, live performance, music production, and post-production. The VX222HR card features 24-bit/192 kHz converters. - 2/2 balanced analog and digital AES/EBU inputs and outputs
- Driver for the Digigram SDK, as well as low-latency WDM DirectSound, ASIO, and Wave drivers
- 32-bit / 66 MHz PCI Master mode, PCI and PCI-X compatible interface
- 24-bit / 192 kHz converters
- LTC input and inter-board Sync
In the Box Digigram VX222HR High Resolution Linear Sound Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram VX222HR High Resolution Linear Sound Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram VX222HR Specs | Bus | 32-bit/66 MHz Universal PCI, PCI and PCI-X compatible, master mode | | Digital Signal Processing (DSP) | Motorola 56303 at 100 MHz | | RAM | 128 kWords | | Line Level | Maximum Input Level: +24 dBu
Maximum Input Impedance: <10 kohms
Maximum Output Level: +24 dBu
Maximum Output Impedance: <100 ohms | | Digital Inputs | 1 AES/EBU | | Output/Input Gain | Analog and digital, programmable | | Sample Rate Converter | Hardware: No | | AES/EBU | Sync Input: No | | Synchronization | AES11: Yes | | Sampling Frequencies | Programmable from 8 to 192 kHz | | A/D and D/A Conversion | 24 bits | | Supported Audio Formats | PCM (8, 16, 24 bits), Float IEEE754 | | Connectors | 1 x Internal Inter-board synchronization
1 x 15-pin Sub-D, analog
1 x 15-pin Sub-D, digital I/Os, Sync and GPIO
1 x 1/8" TRS phone jack female, headphones output | | Frequency Response | Record + play:
48 kHz: 20 Hz - 20 kHz: +0 /-0.3 dB
96 kHz: 20 Hz - 40 kHz: +0 /-0.4 dB
192 kHz: 20 Hz - 80 kHz: +0 /-1.1 dB | | Differential Phase | <0.2°/2° (20 Hz - 20 kHz) | | Dynamic Range | Analog Input: >104 dBA, A-weighted
Analog Output: >106 dBA, A-weighted | | THD & Noise | 1 kHz at -2 dBfs:
Analog Input: <-97 db
Analog Output: <-95 dB | | Crosstalk | Analog input or output:
1 kHz at +24 dBu: <-115 db
15 kHz at +24 dBu: <-100 dB | | Supported Operating Systems | Windows Vista, 2000, XP (32 bit), and Windows 2003 (32 bit) Server | | Environment | Digigram Management: np SDK (HR runtime, PCM only)
Other Management: Wave, ASIO, DirectSound (all PCM only) | | On-Board Processors | Features: Direct monitoring, real-time mixing, level adjustment, 3-band parametric equalizer, maximizer, panning, cross-fade, punch-in/punch-out, scrubbing | | Temperature | Operating: 32 to 122°F (0 to 50°C), Humidity: 5 - 90%, non-condensing
Storage: 23 to 158°F (-5 to 70°C), Humidity: 0 - 95%, non-condensing | | Power Requirements | 0.35 A, +3.3 V
0.2 A, +5 V
0.2 A, +12 V
0.08 A, -12 V | | Dimensions | 6.9 x 3.9 x 0.8" (17.5 x 9.9 x 2.0 cm) |
