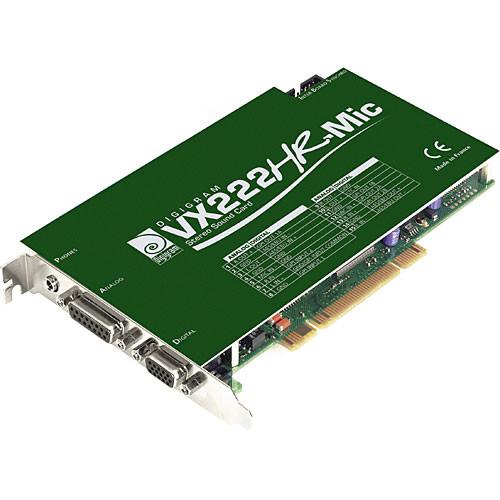

Product description The VX222HR with Mic Input from Digigram is a short-form PCI card that provides 2 channels of analog or digital line input, a single microphone preamp input, while simultaneously outputting a stereo digital output or 2 mono channels of analog audio. Useful for broadcast, production, or voice-over recording, the card provides excellent audio performance with pristine sound quality and the ability to perform 24/7 in any demanding environment. The Microphone input can deliver +48V phantom power for use with condenser microphones and also includes an analog compressor/limiter. Synchronization options include AES/EBU input and LTC input. The card is "visiblu" ready (a technology based on Digigram's Network Audio Operating System) and provides low-latency, wide area network (WAN) encoding and processing, whether the assets are located next door or hundreds of miles away. The VX222HR with Mic Input is the perfect solution for professional users working with software based on standard WDM DirectSound, ASIO, WAVE, or Digigram np interfaces. All connectors are available on the 2 included breakout cables. Note: The digital output always plays the digital version of the corresponding analog outputs. Selecting the AES/EBU input excludes the selection of the analog inputs. - Universal PCI card with a combination of analog and digital input/output with software programmable analog and digital gain
- 2 analog mono inputs and outputs, all on XLR connectors
- Single microphone preamplifier input with switchable +48V phantom power, 66dB of gain (in 0.5dB steps) and programmable DSP compressor/limiter 1
Please Note: Microphone input is mixed with the 2 line inputs before A/D conversion close - Maximum level on analog inputs and outputs +24dBu
- Single stereo digital input and output
- Real-time, simultaneous PCM record and playback of 8-, 16- and 24-bit audio
- On-board DSP provides use of a 3-band parametric EQ plus a Maximizer, both in playback or recording modes
- Includes AES/EBU sync input and LTC input
- 1/8" stereo mini headphone output on card
- 2 General Purpose inputs and 2 outputs (GPIOs) on a breakout cable
- Hardware sample rate converter for recording of a digital signal with a sample frequency that is different from the internal clock
- Comprehensive set of Windows drivers including Digigram np, WDM DirectSound, Wave and ASIO
- "visiblu" (Network Audio Operating System from Digigram) ready for wide area network encoding and processing
- Connectors on included breakout cable
In the Box Digigram VX222HR with Mic Input - PCI Universal Digital Audio Card 2 x Breakout Cables Software CD-ROM One (1) Year Warranty User Manual PDF 970.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram VX222HR with Mic Input - PCI Universal Digital Audio Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram VX222HR Specs | Format | Universal PCI | | Converters | 24-bit | | Sample Rates | Programmable from 32kHz to 192kHz | | Analog Input | 1 x XLR Microphone (on included breakout cable)
2 x XLR Line (on included breakout cable) | | Analog Output | 2 x XLR (on included breakout cable)
1 x 1/8" stereo mini Headphone (on card) | | Digital Input | 1 x XLR AES/EBU (on included breakout cable) Can function as S/PDIF | | Digital Output | 1 x XLR AES/EBU (on included breakout cable) Can function as S/PDIF | | Other Connectors | On card:
1 x 15pts SubD HD
1 x 15-pin SubDOn included breakout cable:
1 x RCA coaxial LTC In
1 x 9-pin SubD Female (GPIO) | | MIDI In/Out | No | | Sync In/Out | AES/EBU In
LTC In | | Headphone Output | Yes | | THD + N | Input: <-97dB, 1kHz @ -2.0dBfs
Output: <-95dB, 1kHz @ -2.0dBfs | | Dynamic Range | Input: >104dB, A-weighted
Output: >106dB, A-weighted | | Frequency Response | 20Hz to 20kHz, +0/-0.3dB @ 48kHz
20Hz to 40kHz, +0/-0.4dB @ 96kHz
20Hz to 80kHz, +0/-1.1dB @ 192kHz | | Minimum System Requirements | CPU power and memory required depend on the operating system and the audio application used
One free PCI (or PCI-X) slot
Windows XP/Server 2003 and Vista | | Specialties | Can be used in 32-bit/33MHz 5V PCI slots as well as in 64-bit/66MHz 3.3V keyed PCI slots | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 4.0" |
