User Manual for Digigram VX881e with BOB8 - 8-Channel Digital Input Output, 24-Bit 192kHz PCIe Sound Card with BOB8 Breakout Box - Windows Click to enlarge the picture
Contents of the user manual for the Digigram VX881e with BOB8 - 8-Channel
- Product category: Audio Interfaces & Systems Digigram
- Brand: Digigram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digigram Audio Interfaces & Systems
|
User manual for the Digigram VX881e with BOB8 - 8-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digigram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digigram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digigram product will considerably shorten its lifespan!
|

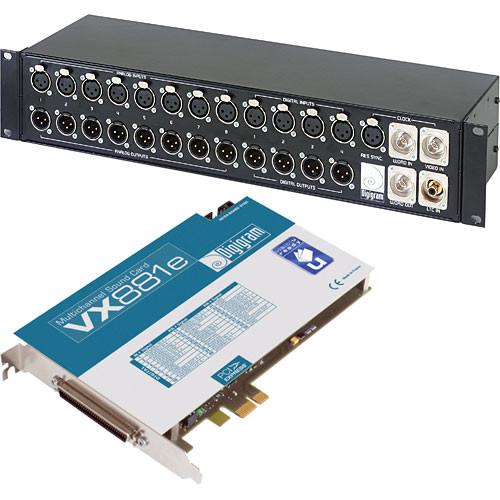

Product description The VX881e from Digigram is a PCIe (PCI Express) card, that provides four stereo inputs and four stereo outputs of digital I/O. Comprehensive synchronization options are provided that include AES/EBU input, Wordclock I/O, video sync and LTC input. The card preserves pristine sound quality and was designed for demanding broadcast audio application, such as production, on-air playback and logging. The included drivers (Windows and Linux only) provide for wide integration with clients' software applications, while a Digigram Hardware Settings (DHS) control panel allows the user to manage a wide variety of settings. The BOB8 is a 19", 2U rack-mountable breakout box with Neutrik XLR, BNC and RCA connectors that provide convenient placement of all of the inputs and outputs of the VX 881e. - PCIe (PCI Express) card with eight digital inputs and outputs accessible via the BOB8 breakout box
- 24-bit/192kHz converters (digital inputs only accept up to 96kHz sampling rates)
- Includes AES/EBU sync input, along with Wordclock I/O, Video Sync and LTC input
- Hardware sample rate converters on all inputs for simultaneous recording of digital signals with different sample frequencies
- Drivers include Digigram np, WDM DirectSound, Wave and ASIO
- Short-length PCI format with companion board connector for Digigram or custom add-on cards
- Includes 2U rack-mount breakout box with full complement of input and output connectors
In the Box Digigram VX881e with BOB8 - 8-Channel Digital Input / Output, 24-Bit/192kHz PCIe (PCI Express) Sound Card with BOB8 Breakout Box - Windows 2-Meter Connecting Cable Software CD-ROM One (1) Year Warranty User Manual PDF 1.1mbecsrbrzdedfacebeuebzxbw Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram VX881e with BOB8 - 8-Channel Digital Input Output, 24-Bit 192kHz PCIe Sound Card with BOB8 Breakout Box - Windows in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram VX881e Specs | Format | Universal PCIe | | Converters | Not applicable | | Sample Rates | Programmable from 22.05kHz to 192kHz Inputs handle up to 96kHz only | | Analog In | No | | Analog Outputs | No | | Digital Input Connectors | 4 x XLR AES/EBU (on included breakout box) Can function as S/PDIF | | Digital Output Connectors | 4 x XLR AES/EBU (on included breakout box) Can function as S/PDIF | | MIDI In/Out | No | | Sync In/Out | AES/EBU In
Wordclock I/O
Video Sync In
LTC In | | Headphone Output | No | | THD + N | Not applicable | | Dynamic Range | Not applicable | | Frequency Response | Not applicable | | Minimum System Requirements | CPU power and memory required depend on the operating system and the audio application used
One free PCIe slot
Windows 2000/XP/Server 2003 and Vista | | Specialties | PCI Express (PCIe) x1 and x2, x4, x8, x16, x32 compatible | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 14.0 x 6.0 x 4.0" |
