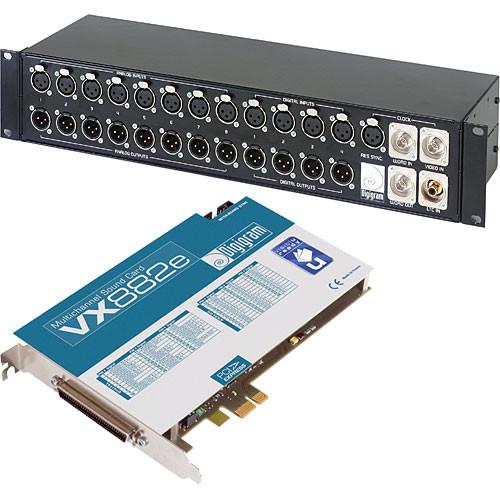

User Manual for Digigram VX882e with BOB8 - 8 Channel Analog and Digital Input Output, 24-Bit 192kHz PCIe Sound Card with BOB8 Breakout Box - Windows Click to enlarge the picture
Contents of the user manual for the Digigram VX882e with BOB8 - 8
- Product category: Audio Interfaces & Systems Digigram
- Brand: Digigram
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digigram Audio Interfaces & Systems
|
User manual for the Digigram VX882e with BOB8 - 8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digigram product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digigram user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digigram product will considerably shorten its lifespan!
|
Product description The VX882e from Digigram is PCIe (PCI Express) card that provides eight analog inputs and outputs, along with eight digital I/O's. The digital outputs mirror the analog outputs, while selecting a digital input, disables the corresponding analog input. Comprehensive synchronization options are provided, including AES/EBU input, Wordclock I/O, video sync and LTC input. The card delivers pristine sound quality and was designed for demanding broadcast audio application, such as production, on-air playback and logging. Included drivers (Windows and Linux only) provide for wide integration with clients' software applications, while a Digigram Hardware Settings (DHS) control panel allows the user to manage a wide variety of settings. The BOB8 is a 19", 2U rack-mountable breakout box with Neutrik XLR, BNC and RCA connectors that provide convenient placement of all of the inputs and outputs of the VX 882e. - Universal PCI card with eight analog inputs and outputs, and eight digital inputs and outputs on included breakout box 1
Please Note: The digital outputs mirror the analog outputs. Analog and digital inputs can be used simultaneously if assigned to different channels close - 24-bit/192kHz converters (digital inputs only accept up to 96kHz sampling rates)
- Includes AES/EBU sync input, along with Wordclock I/O, Video Sync and LTC input
- Hardware sample rate converters on all inputs for simultaneous recording of digital signals with different sample frequencies
- +24dBu maximum input and output level
- Drivers include Digigram np, WDM DirectSound, Wave and ASIO
- Short-length PCI format with companion board connector for Digigram or custom add-on cards
- Includes 2U rack-mount breakout box with full complement of input and output connectors
In the Box Digigram VX882e with BOB8 - 8 Channel Analog and Digital Input / Output, 24-Bit/192kHz PCIe (PCI Express) Sound Card with BOB8 Breakout Box - Windows BOB8 - Breakout Box for Digigram's Multi-Channel Sound Cards ecsrbrzdedfacebeuebzxbw 2-Meter Connecting Cable Software CD-ROM One (1) Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digigram VX882e with BOB8 - 8 Channel Analog and Digital Input Output, 24-Bit 192kHz PCIe Sound Card with BOB8 Breakout Box - Windows in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigigram VX882e Specs | Format | Universal PCI, PCI-X compatible | | Converters | 24-bit | | Sample Rates | Programmable from 8kHz to 192kHz Digital inputs handle up to 96kHz only | | Analog In | 8 x XLR on included breakout box | | Analog Outputs | 8 x XLR on included breakout box | | Digital Input Connectors | 4 x XLR AES/EBU on included breakout box Can function as S/PDIF | | Digital Output Connectors | 4 x XLR AES/EBU on included breakout box Can function as S/PDIF | | MIDI In/Out | No | | Sync In/Out | AES/EBU In
Wordclock I/O
Video Sync In
LTC In | | Headphone Output | No | | THD + N | Input: <-97dB, 1kHz @ -1dBfs
Output:<-94dB, 1kHz @ -1dBfs | | Dynamic Range | >104dB, A-weighted | | Frequency Response | 20Hz to 20kHz, +/-0.2dB | | Minimum System Requirements | CPU power and memory required depend on the operating system and the audio application used
One free PCIe slot
Windows 2000/XP/Server 2003 and Vista | | Specialties | PCI Express (PCIe) x1 and x2, x4, x8, x16, x32 compatible | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 22.0 x 14.0 x 10.0" |
