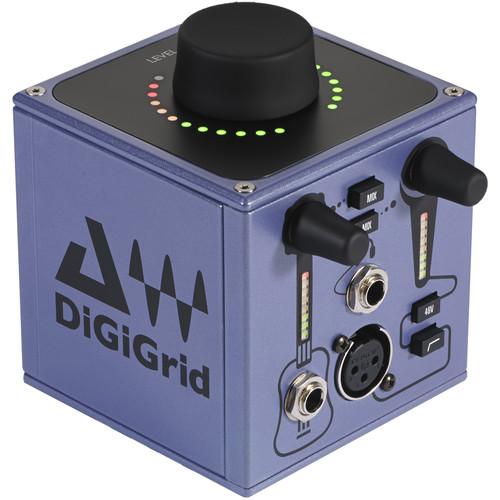

Product description New DiGiGrid D: Desktop Ethernet Recording Interface Read More DiGiGrid M from DiGiGrid is an Ethernet based, two-channel recording interface that is easy to use (plug and play), with simultaneous monitoring and recording capabilities using two I/Os. One is a dedicated microphone/line input, while the second is an instrument/line input, allowing for many musical combinations. Quality converters and industry-proven microphone preamps provide excellent audio capture, and when listening back, a dedicated high-power headphone output guarantees a classic, warm analog control path.
The interface integrates seamlessly with any other DiGiGrid product using the CAT5 SoundGrid network port to provide the user with extra I/O and overall functionality. Physically, the unit features a non-slip base and optional mic-stand adapter plate, and is powered by the included twist-lock 12 VDC power supply, or via Power over Ethernet (PoE). When used in conjunction with the optional DiGiGrid S, up to four DiGiGrid devices can be easily networked up to 246 feet (75 meters) apart, and can even connect to multiple computers and DAWs simultaneously. - Designed for songwriters, musicians and engineers for 96 kHz recording and headphone monitoring
- Two inputs, two outputs, 48V phantom power, high-pass filter, and dedicated metering
- Analog control path for highest-quality warm sonic performance
- Cat 5 port for the SoundGrid network connection
- Use as a standalone unit or in larger DiGiGrid advanced audio networks
- Optional stand mount adapter for maximum flexibility of placement
- 3.5" cubed high-grade aluminum extruded enclosure
- Includes eMotion ST Mixer, SoundGrid Studio Application, and StudioRack software
In the Box DiGiGrid M - Ethernet Recording Interface External Power Supply Downloadable Software Applications One (1) Year Limited Warranty Waves DiGiGrid Modular Products for Audio Recording Nicholas Messitte 07/25/2016 User Manual PDF 2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the DiGiGrid M - Ethernet Recording Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDiGiGrid CM Specs | Microphone/Line Input | Connector: 1 x XLR
Input Impedance: 1.5 kOhms
Gain Range: 0 to +70 dB
Frequency Response: -3 dB, < 10 Hz to 100 kHz (analog to analog)
Harmonic Distortion: 0.005% (40 dB gain)
Noise EIN: -127 dB (70 dB gain) typical
High-Pass Filter: -3 dB, 100 Hz, 18 dB/octave | | Line / Instrument Inputs | Connector: 1 x 1/4"
Input Impedance: 1 MOhm
Gain Range: +6 to +30 dB
Frequency Response: -3 dB, < 10 Hz to 100 kHz (analog to analog)
Harmonic Distortion: 0.005% | | Noise | Minimum Gain: -82 dBu
Maximum Gain: -73 dBu | | Headphones | Connector: 1 x 1/4"
Gain Range Infinity: to +10 dB
Max Output Levels:
16 Ohm – 2.3 Vrms
32 Ohm – 3.7 Vrms
100 Ohm – 6.0 Vrms
200 Ohm – 7.5 Vrms
600 Ohm – 8.8 Vrms | | Dimensions (WxDxH) | 3.5 x 3.5 x 3.5" (9.0 x 9.0 x 9.0 cm) | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 13.7 x 11.7 x 4.8" |
