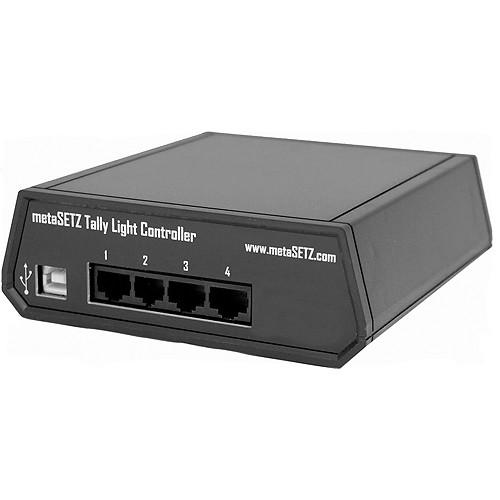

User Manual for Digital Arts metaSETZ TLC-4S Tally Controller for TriCaster Click to enlarge the picture
Contents of the user manual for the Digital Arts metaSETZ TLC-4S Tally Controller
- Product category: Switcher Accessories Digital Arts
- Brand: Digital Arts
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Arts Switcher Accessories
|
User manual for the Digital Arts metaSETZ TLC-4S Tally Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Arts product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Arts user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Arts product will considerably shorten its lifespan!
|
Product description Compatible with most HD TriCasters and all metaSETZ tally lights and relay units, the metaSETZ TLC-4S, from Digital Arts, provides 6 assignable tally outputs, Program/Preview/Talent tally, and intercom/audio pass-through. It also allows you to assign any of the 6 tally outputs to any of the switcher inputs in order to assign a tally to a network input or DDR.
The ability to run both tally and intercom over a single Cat5 cable highly sets the TLC-4S apart from a simple adapter cable. You'll be able to connect your intercom base station into the XLR port on the rear of the TLC-4S and then connect your beltpacks to the multi-purpose port on the tally lights.
Included software (provided on a flash drive) for the TriCaster supports both the red Program and green Preview tally lights, in contrast to the TLC-8D, which is limited to only one. You can also use the software to globally enable or disable the talent tally with no jumpers to change. - Supported TriCasters
-
- TriCaster 460 or 860
- TriCaster 40, 455, 855 rev 6 software
- TriCaster 8000 rev 2-2-131031 software
UPC: 851957007006 In the Box Digital Arts metaSETZ TLC-4S Tally Controller for TriCaster USB Power Cable Flash Drive with Software for TriCaster Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Arts metaSETZ TLC-4S Tally Controller for TriCaster in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Arts TLC-4S Specs | Connections | 6x tally outputs
1x 3-pin XLR | | Supported TriCasters | TriCaster 460 or 860
TriCaster 40, 455, 855 rev 6 software
TriCaster 8000 rev 2-2-131031 software | | Power | USB port (USB cable included) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 9.7 x 7.5 x 2.2" |
