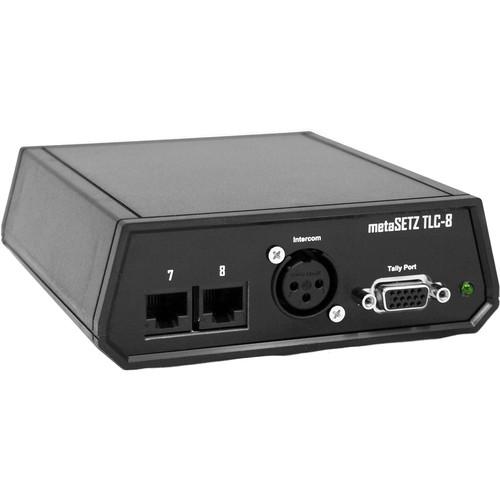

Product description The metaSETZ TLC-8d Tally Light Controller from Digital Arts is used with the TriCaster 850, 855, 450, 455, and 8000 Production Systems. It translates the Program tally signal from a TriCaster Production System to illuminate the red camera and Talent tallys on supported tally lights. This controller connects with the system’s 15-pin tally port and interfaces with any tally light model from Digital Arts. The talent tallys can be globally disabled via a jumper on the TLC-8d. The green (preview) and yellow (FX) tallys are not supported.Unlike cable adapters, the TLC-8d Controller features an intercom pass through that allows you to run both tally and intercom signals over a single CAT 5 cable. You can connect your intercom base station to the XLR port on the TLC-8d Controller and connect your beltpacks to the multipurpose port on the tally lights. The electronics in the controller are powered via a USB connection to the TriCaster (sold separately), eliminating the need for a separate power supply. It comes with a 6’ (1.8m) 15-pin tally cable and a 6’ (1.8m) USB cable. This controller is also upgradeable to full microprocessor functionality.For CCU users, the TLC-8d Controller can be interfaced with CCUs that require Dry contact closure using an RU-2 relay unit (sold separately) for each CCU. Note: You cannot connect a microphone directly to the Intercom XLR. - Compact, rugged ABS construction
- XLR intercom pass through connection
- Compatible with TL-XD, TL-1, TL-2 lights, and RU-2 relay units
- Dealer / factory upgradable for additional functionality
UPC: 851957007013 In the Box Digital Arts metaSETZ TLC-8d Tally Light Controller with Intercom Pass Through 6' (1.8m) 15-Pin Tally Cable 6' (1.8m) USB Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Arts metaSETZ TLC-8d Tally Light Controller with Intercom Pass Through in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Arts TLC-8D Specs | Compatible with | TriCaster 850, 855, 450, 455 and 8000; TL-XD, TL- 1, TL-2 Tally Lights | | Connectors | Input: 8 x RJ-45, 1 x XLR
Output: 15-pin Tally
Power: 2 x USB | | | | Package Weight | 0.915 lb | | Box Dimensions (LxWxH) | 11.05 x 8.6 x 2.1" |
