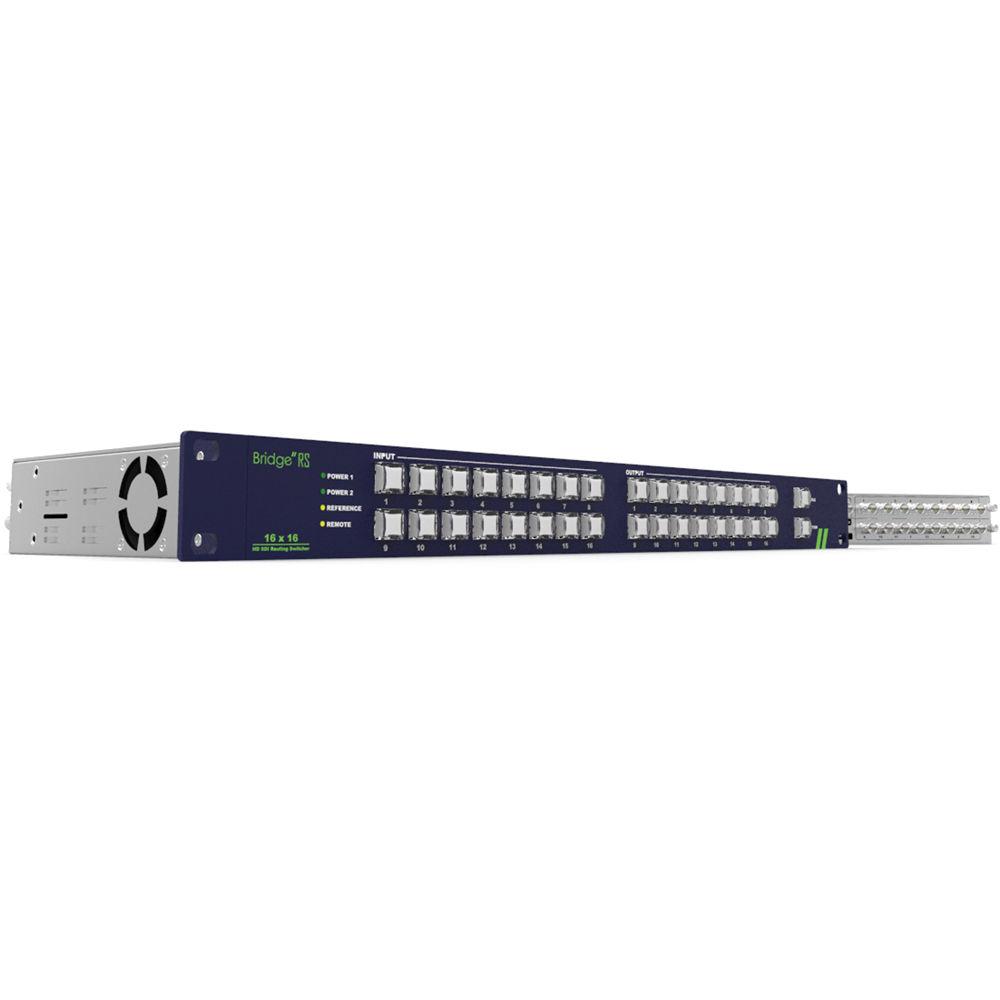

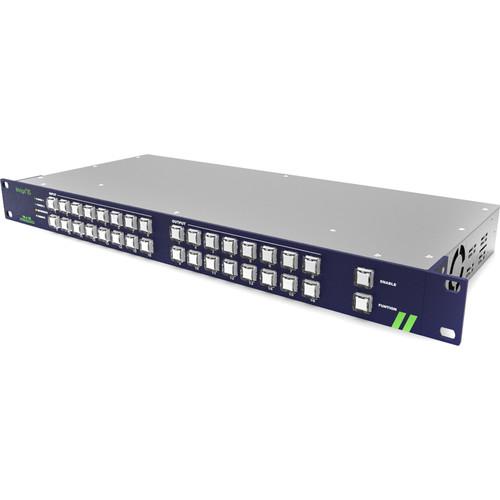

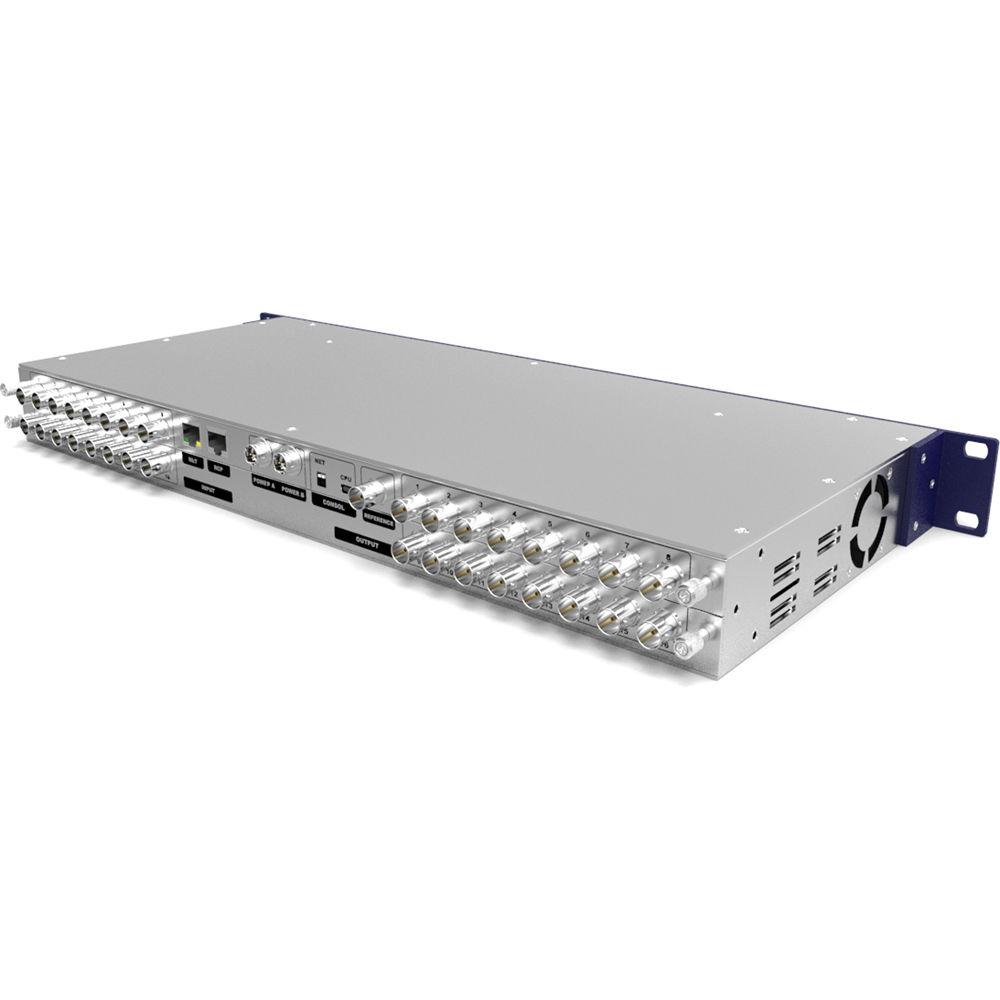

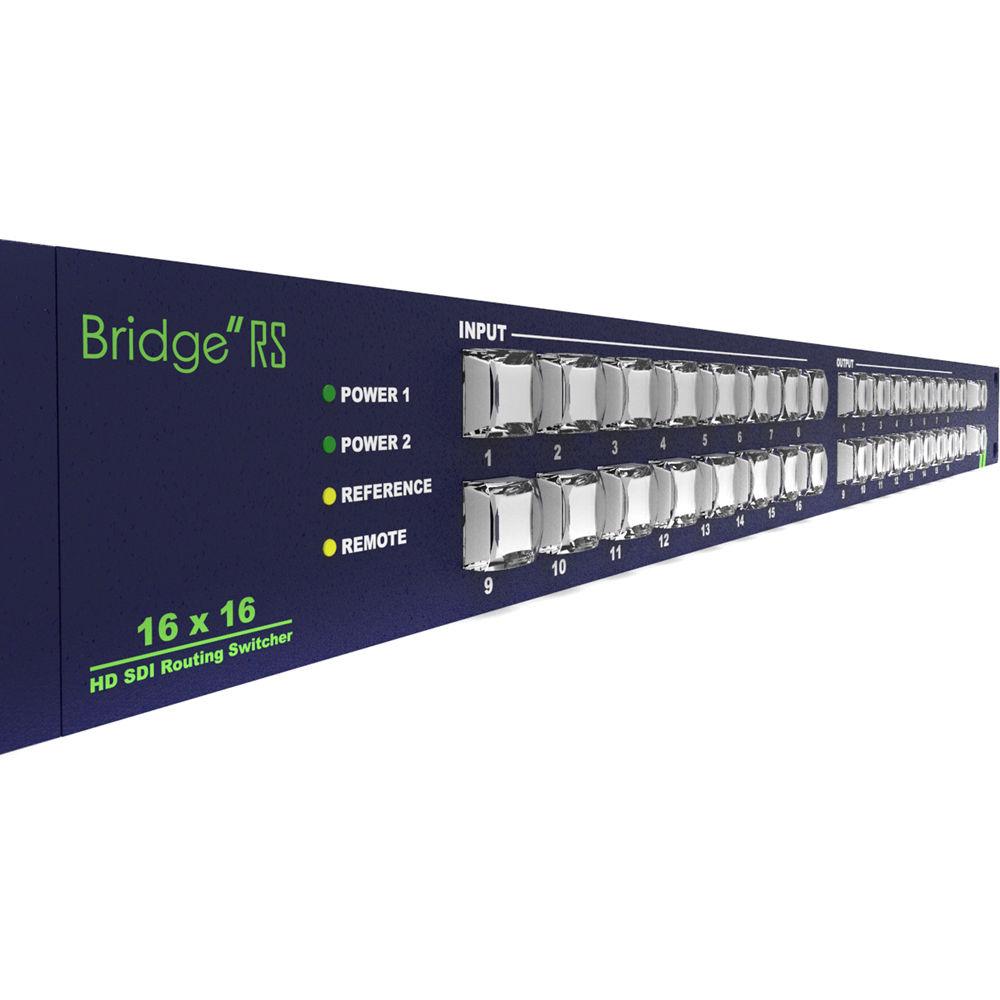

User Manual for DIGITAL FORECAST 16x16 3G-HD-SD SDI Routing Switcher Click to enlarge the picture
Contents of the user manual for the DIGITAL FORECAST 16x16 3G-HD-SD SDI Routing
- Product category: Routers & Switchers DIGITAL FORECAST
- Brand: DIGITAL FORECAST
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DIGITAL FORECAST Routers & Switchers
 |
User manual for the DIGITAL FORECAST 16x16 3G-HD-SD SDI Routing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DIGITAL FORECAST product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DIGITAL FORECAST user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DIGITAL FORECAST product will considerably shorten its lifespan!
|
Product description The DIGITAL FORECAST 16x16 3G-HD-SD/SDI Routing Switcher supports 16x16 SDI video input/outputs. It recognizes SD, HD and 3 Gb/s SDI signals automatically and offers reclocked SDI output. It runs on 12 VDC/3A dual power supply. The switcher also provides vertical synchronization of the reference signal. In addition, it also comes with the APC function, RCP, Preset Set, and a button to provide added convenience to the user. - Network control APC function
- Network EMS support via Livenet
- Dual 12 VDC/3A power supply
UPC: 704006295667 In the Box DIGITAL FORECAST 16x16 3G-HD-SD/SDI Routing Switcher Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DIGITAL FORECAST 16x16 3G-HD-SD SDI Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIGITAL FORECAST RS SDI 16X16 Specs | Type | 16x16 | | Inputs | 16 x HD/SD/ASI input (SD/SD/3G)
16 x HD/SD/ASI input (SD/SD/3G) | | LED | Front status | | Remote | Remote controller via RS422 port | | Power Supply | Dual 12 VDC, 3 A | | Formats | NTSC (480i 59.94), PAL (576i 50), 720p (60/59.94/50), 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98), 1080p (60/59.94) 3G | | Dimensions | 19 x 3.5 x 1.7" (483 x 91 x 44 mm) | | Weight | 4.4 lb (2 kg) |
